ST380 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

SCR 400V 2220A TO200AB

Part	SCR Type	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - On State (It (AV)) (Max) [Max]	Mounting Type	Voltage - On State (Vtm) (Max)	Supplier Device Package	Current - Gate Trigger (Igt) (Max) [Max]	Current - Off State (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Voltage - Off State	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - On State (Vtm) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (RMS)) (Max)
Vishay General Semiconductor - Diodes Division VS-ST380CH04C0L	Standard Recovery	11000 A	10500 A	960 A	Clamp On	1.58 V	TO-200AB (E-Puk)	200 mA	100 mA	2220 A	400 V	E-PUK TO-200AB
Vishay General Semiconductor - Diodes Division VS-ST380C04C0	Standard Recovery			960 A	Clamp On		TO-200AB (E-Puk)	200 mA	50 mA		400 V	E-PUK TO-200AB	15000 A 15700 A	1.6 V	125 °C	-40 °C	1900 A
Vishay General Semiconductor - Diodes Division VS-ST380C06C0	Standard Recovery			960 A	Clamp On		TO-200AB (E-Puk)	200 mA	50 mA		600 V	E-PUK TO-200AB	15000 A 15700 A	1.6 V	125 °C	-40 °C	1900 A
Vishay General Semiconductor - Diodes Division VS-ST380C04C1	Standard Recovery	13200 A	12600 A	960 A	Clamp On		TO-200AB (E-Puk)	200 mA	50 mA		400 V	E-PUK TO-200AB		1.6 V	125 °C	-40 °C	1900 A
Vishay General Semiconductor - Diodes Division VS-ST380C06C1	Standard Recovery	13200 A	12600 A	960 A	Clamp On		TO-200AB (E-Puk)	200 mA	50 mA		600 V	E-PUK TO-200AB		1.6 V	125 °C	-40 °C	1900 A
Vishay General Semiconductor - Diodes Division VS-ST380CH04C1	Standard Recovery	11000 A	10500 A	960 A	Clamp On	1.58 V	TO-200AB (E-Puk)	200 mA	100 mA	2220 A	400 V	E-PUK TO-200AB
Vishay General Semiconductor - Diodes Division VS-ST380CH04C0	Standard Recovery	13000 A	12500 A	960 A	Clamp On	1.58 V	TO-200AB (E-Puk)	200 mA	100 mA	2220 A	400 V	E-PUK TO-200AB

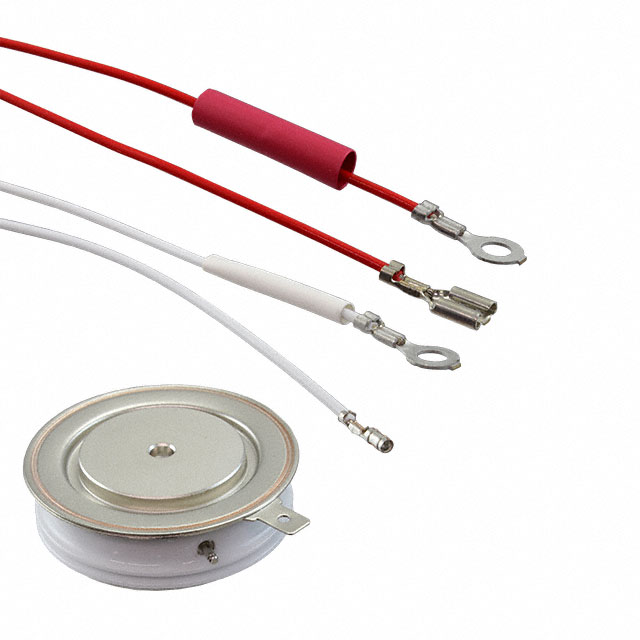

Vishay General Semiconductor - Diodes Division VS-ST380CH06C0	Standard Recovery	13000 A	12500 A	960 A	Clamp On	1.58 V	TO-200AB (E-Puk)	200 mA	100 mA	2220 A	600 V	E-PUK TO-200AB
