EFB0505 Series

Catalog

FAN AXIAL 50X10MM BALL 5VDC WIRE

Part	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Material - Frame	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Weight	Weight	Static Pressure	Static Pressure	Voltage - Rated	Air Flow	Air Flow	Features	Termination	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Bearing Type	Noise	Fan Type	Width [y]	Current Rating (Amps)

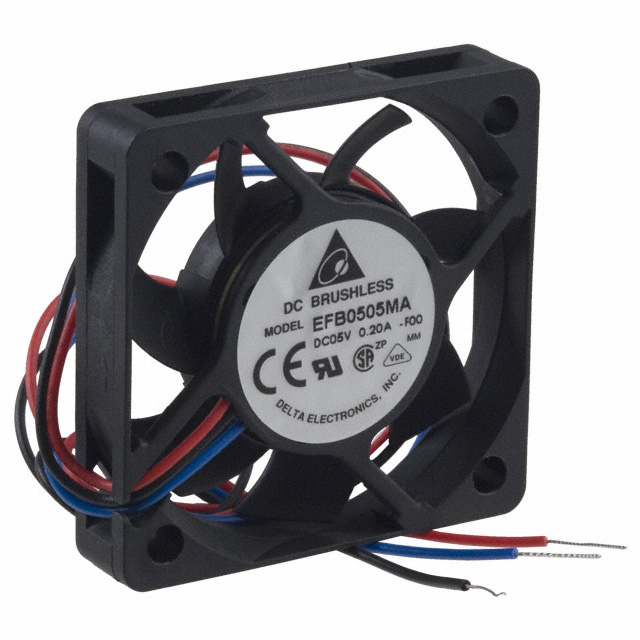

Delta Electronics EFB0505MA-F00	70000 Hrs	5.5 V	4.5 V	Plastic	Plastic	0.65 W	70 °C	-10 °C	4500 RPM	0.057 lb	25.85 g	28.1 Pa	0.113 in H2O	5 V	9.2 CFM	0.258 m³/min	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	50 mm	50 mm	CE CSA UL VDE	Ball	25 dB(A)	Tubeaxial	10 mm
Delta Electronics EFB0505LA-R00	70000 Hrs	5.5 V	4.5 V	Plastic	Plastic	350 mW	70 °C	-10 °C	3500 RPM	0.057 lb	25.85 g	17 Pa	0.068 in H2O	5 V	7.5 CFM	0.21 mł/min	Locked Rotor Sensor	3 Wire Leads	50 mm	50 mm	CE CSA UL VDE	Ball	18 dB(A)	Tubeaxial	10 mm	70 mA
