2199230 Series

Catalog

CARD EDGE CONNECTOR, M.2 (NGFF), DUAL SIDE, 67 CONTACTS, SURFACE MOUNT, RIGHT ANGLE

Part	Color	Number of Positions	Material - Insulation	Gender	Features	Termination	Mounting Type	Number of Rows	Contact Material	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Card Type	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness

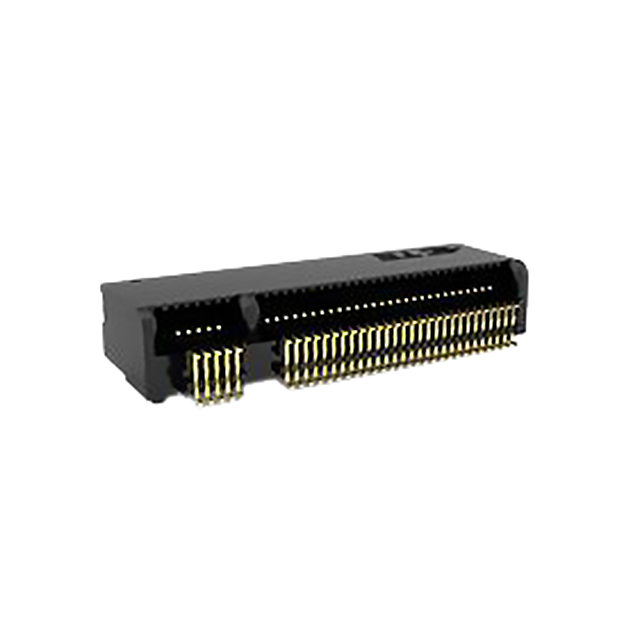

TE Connectivity Raychem Cable Protection 1-2199230-5	Black	67	Thermoplastic	Female	Board Guide	Solder	Surface Mount Right Angle	2	Copper Alloy	0.5 mm	0.02 in	Gold	15 µin	0.38 µm	M.2 (NGFF) Mini Card	Dual	-40 °C	80 C

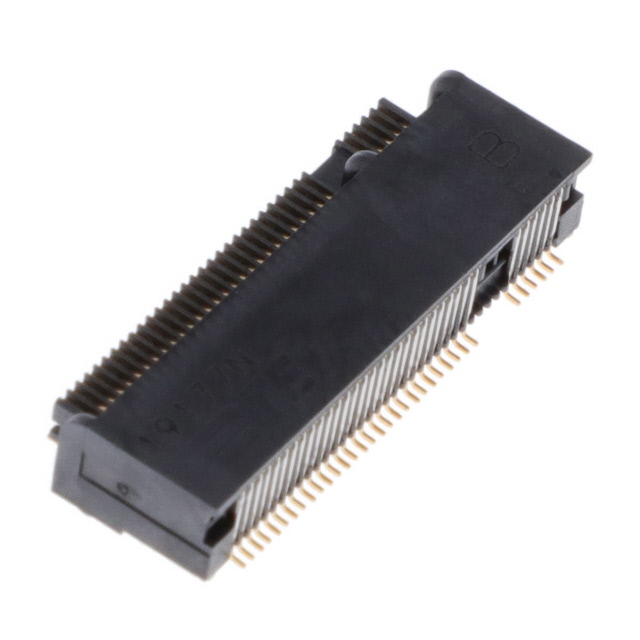

TE Connectivity Raychem Cable Protection 2199230-5	Black	67	Thermoplastic	Female	Board Guide Keyed	Solder	Surface Mount Right Angle	2	Copper Alloy	0.5 mm	0.02 in	Gold	30 Áin	0.76 Ám	M.2 (NGFF) Mini Card	Dual	-40 °C	85 °C
TE Connectivity Raychem Cable Protection 1-2199230-3	Black	67	Thermoplastic	Female	Board Guide	Solder	Surface Mount Right Angle	2	Copper Alloy	0.5 mm	0.02 in	Gold			M.2 (NGFF) Mini Card	Dual	-40 °C	80 C	Flash

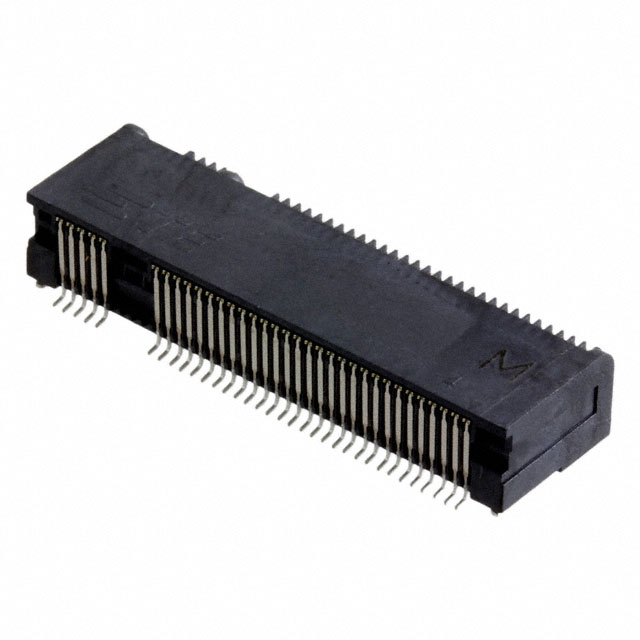

TE Connectivity Raychem Cable Protection 1-2199230-6	Black	67	Thermoplastic	Female	Board Guide	Solder	Surface Mount Right Angle	2	Copper Alloy	0.5 mm	0.02 in	Gold	30 Áin	0.76 Ám	M.2 (NGFF) Mini Card	Dual	-40 °C	80 C

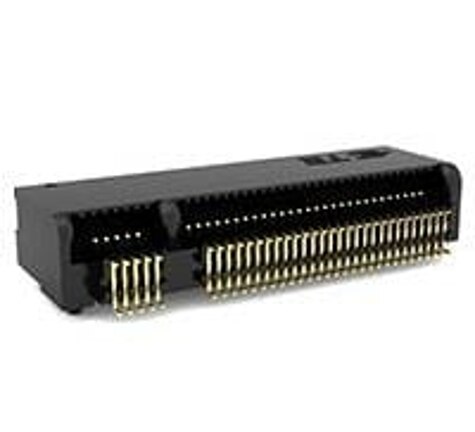

TE Connectivity Raychem Cable Protection 2199230-7	Black	67	Thermoplastic	Female	Board Guide Keyed	Solder	Surface Mount Right Angle	2	Copper Alloy	0.5 mm	0.02 in	Gold			M.2 (NGFF) Mini Card	Dual	-40 °C	80 C	Flash
