LY1-AC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 15A 120V
| Part | Coil Resistance | Operate Time | Termination Style | Coil Current | Mounting Type | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Relay Type | Approval Agency | Switching Voltage | Release Time | Must Operate Voltage | Contact Material | Load - Max Switching | Coil Voltage | Contact Rating (Current) | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

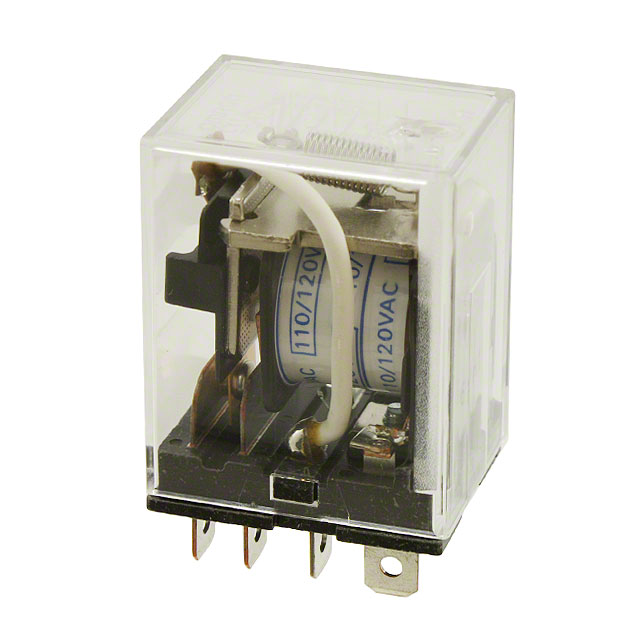

 Omron Electronics Inc-EMC Div | 4.43 kOhms | 25 ms | Plug In | 9.2 mA | Socketable | 36 VAC | 55 °C | -25 °C | Non Latching | General Purpose | CE CSA TUV UR | 125 VDC 250 VAC | 25 ms | 96 VAC | Silver Alloy | 1875 W 3750 VA | 120 VAC | 15 A | SPDT (1 Form C) |
Omron Electronics Inc-EMC Div | 12.95 kOhms | 25 ms | Plug In | 5.8 mA | Socketable | 66 VAC | 55 °C | -25 °C | Non Latching | General Purpose | CE CSA TUV UR | 125 VDC 250 VAC | 25 ms | 176 VAC | Silver Alloy | 1875 W 3750 VA | 220 VAC/DC | 15 A | SPDT (1 Form C) |

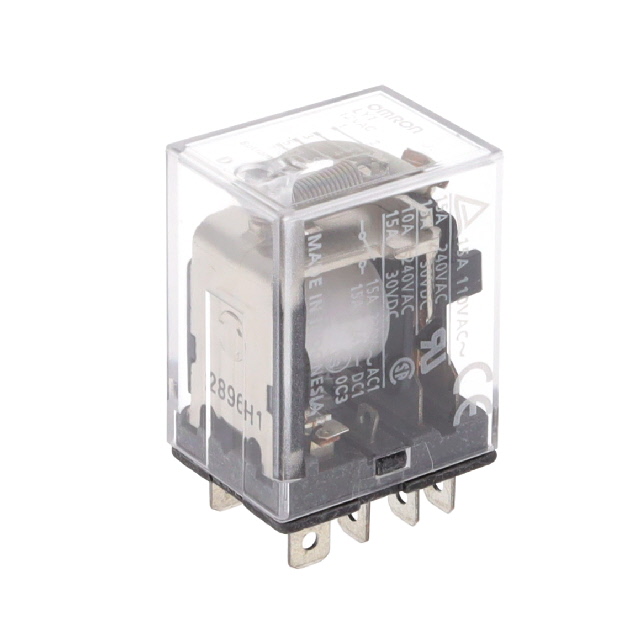

 Omron Electronics Inc-EMC Div | 46 Ohms | 25 ms | Plug In | 91 mA | Socketable | 3.6 VAC | 55 °C | -25 °C | Non Latching | General Purpose | CE CSA TUV UR | 125 VDC 250 VAC | 25 ms | 9.6 VAC/DC | Silver Alloy | 1875 W 3750 VA | 12 VAC/DC | 15 A | SPDT (1 Form C) |
