HLW18S Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

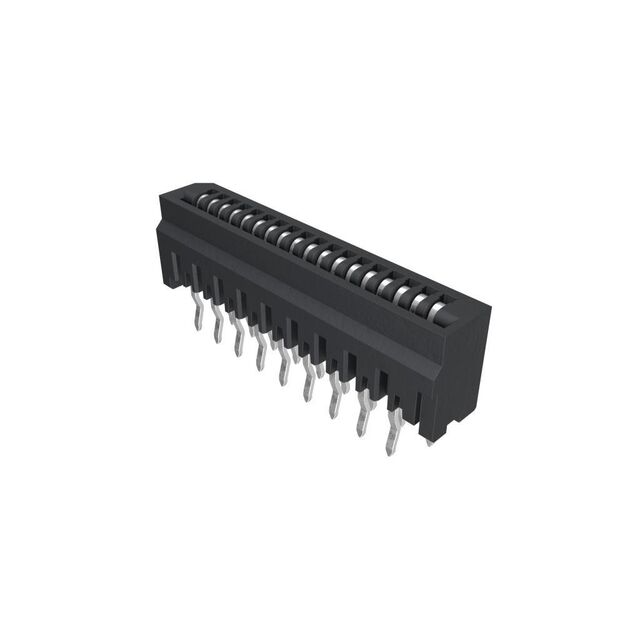

CONN FFC FPC VERT 18POS 1MM PCB
| Part | Housing Color | Mating Cycles | Flat Flex Type | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | FFC, FCB Thickness | Pitch | Pitch | Termination | Mounting Type | Material Flammability Rating | Height Above Board [z] | Height Above Board [z] | Connector/Contact Type | Number of Positions | Contact Material | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | 30 | FFC FPC | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 85 °C | Tin | 0.33 mm | 1 mm | 0.039 in | Kinked Pin | Through Hole | UL94 V-0 | 5.9 mm | 0.232 " | Contacts Vertical - 1 Sided | 18 | Phosphor Bronze | 100 V |
