19300160 Series

Manufacturer: HARTING

Catalog

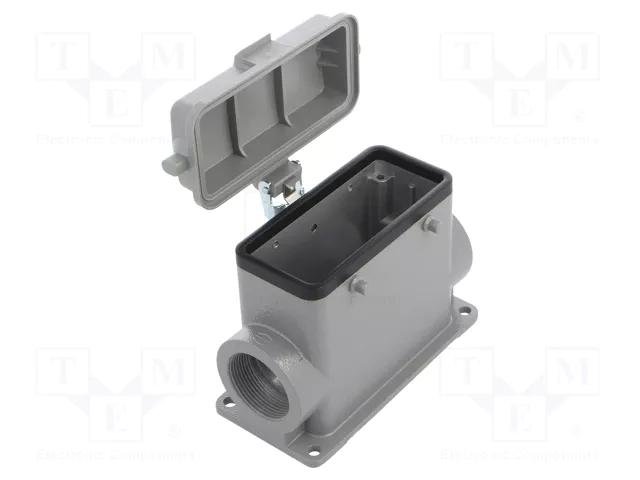

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, SIDE ENTRY, ALUMINUM BODY, 1 LEVER, 16B

Part	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Connector Type	Housing Color	Ingress Protection	Thread Size	Style	Housing Finish	Size	Housing Material	Features
HARTING 19300160252	Locking Clip (1) on Base Bottom	125 °C	-40 C	117 mm	4.606 in	80.8 mm	3.181 in	2.244 "	57 mm	Base - Box Mount	Gray	IP65 - Dust Tight Water Resistant	M32	Side Entry	Powder Coated	16 B	Aluminum Die Cast

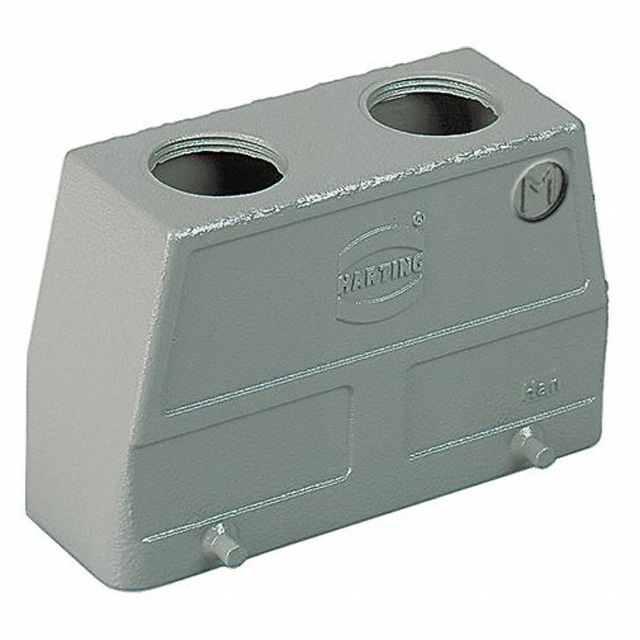

HARTING 19300160466	Locking Clip (2) on Base Bottom	125 °C	-40 C	93.5 mm	3.681 in	76 mm	2.992 in	1.693 "	43 mm	Hood	Gray	IP65 - Dust Tight Water Resistant	M25	Top Entry Dual	Powder Coated	16 B	Aluminum Die Cast

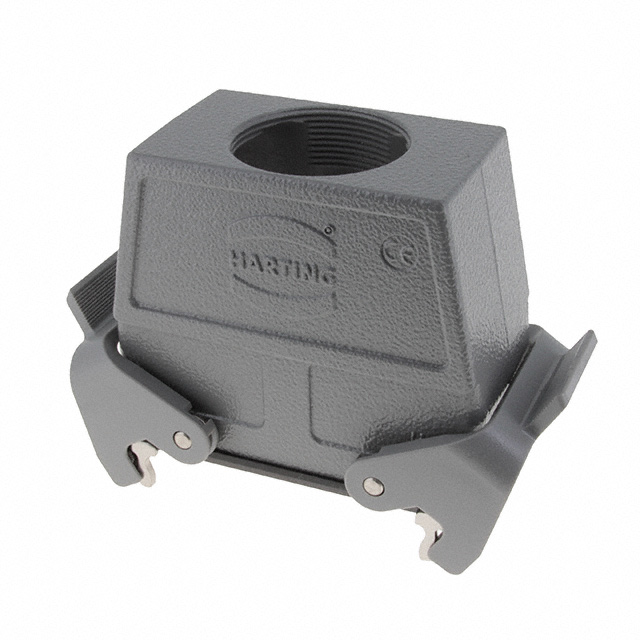

HARTING 19300160738 YYE	Locking Clip (2) on Hood	125 °C	-40 C							Hood - Coupling	Gray	IP65 - Dust Tight Water Resistant		Top Entry Dual	Powder Coated	16 B	Aluminum Die Cast	Cable to Cable
HARTING 19300160232	Locking Clip (2) on Base Bottom	125 °C	-40 C	117 mm	4.606 in	80.8 mm	3.181 in	2.244 "	57 mm	Base - Box Mount	Gray	IP65 - Dust Tight Water Resistant	M32	Side Entry	Powder Coated	16 B	Aluminum Die Cast

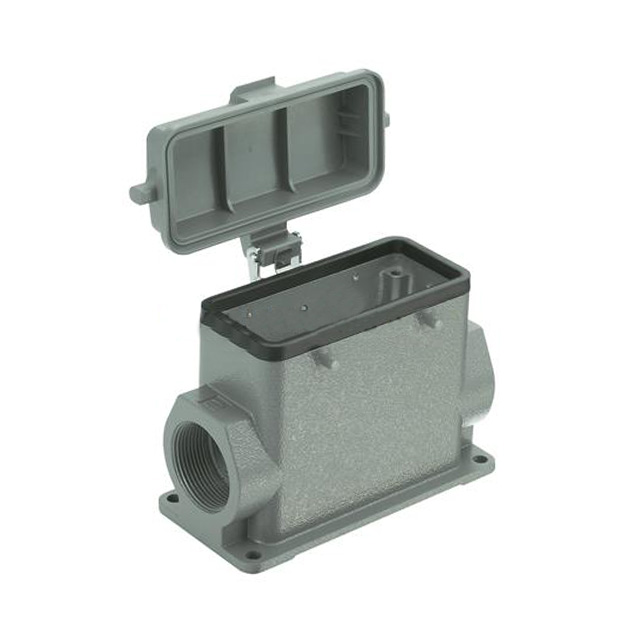

HARTING 19300160267	Locking Clip (2) on Hood	125 °C	-40 C	117 mm	4.606 in	80.8 mm	3.181 in	2.244 "	57 mm	Base - Box Mount	Gray	IP65 - Dust Tight Water Resistant	M32	Side Entry	Powder Coated	16 B	Aluminum Die Cast

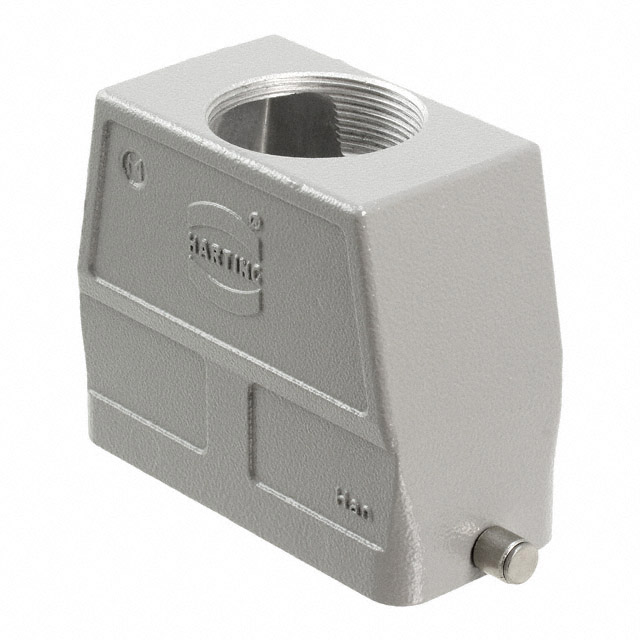

HARTING 19300160448	Locking Clip (1) on Base Bottom	125 °C	-40 C	93.5 mm	3.681 in	76 mm	2.992 in	1.693 "	43 mm	Hood	Gray	IP65 - Dust Tight Water Resistant		Top Entry	Powder Coated	16 B	Aluminum Die Cast

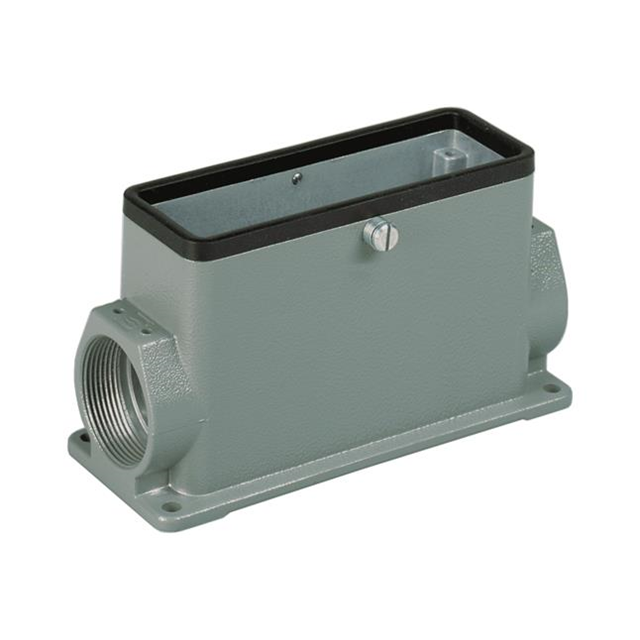

HARTING 19300160282	Locking Clip (1) on Hood	125 °C	-40 C	117 mm	4.606 in	80.8 mm	3.181 in	2.244 "	57 mm	Base - Box Mount	Gray	IP65 - Dust Tight Water Resistant	M32	Side Entry	Powder Coated	16 B	Aluminum Die Cast	Feed Through

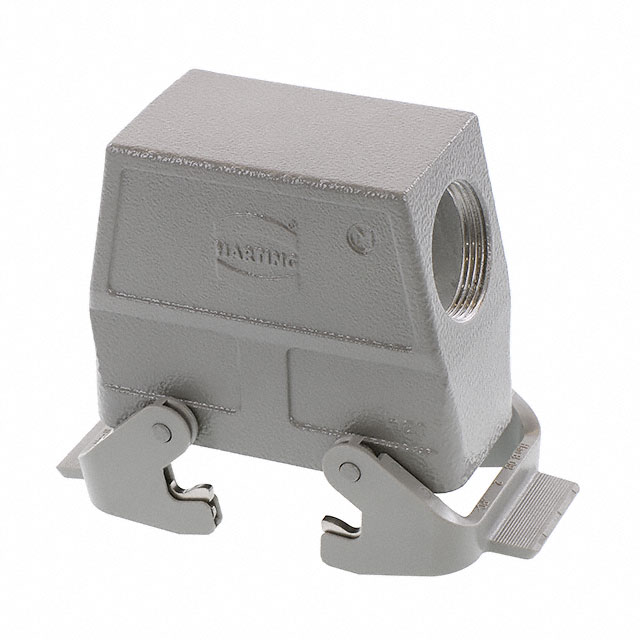

HARTING 19300160537	Locking Clip (2) on Hood	125 °C	-40 C	93.5 mm	3.681 in	76 mm	2.992 in	1.693 "	43 mm	Hood	Gray	IP65 - Dust Tight Water Resistant	M32	Side Entry	Powder Coated	16 B	Aluminum Die Cast
HARTING 19300160736	Locking Clip (2) on Hood Top	125 °C	-40 C	93.5 mm	3.681 in	78.4 mm	3.087 "	1.693 "	43 mm	Hood - Coupling	Gray	IP65 - Dust Tight Water Resistant	M25	Bottom Entry Top or Bottom Entry	Powder Coated	16 B	Aluminum Die Cast	Cable to Cable

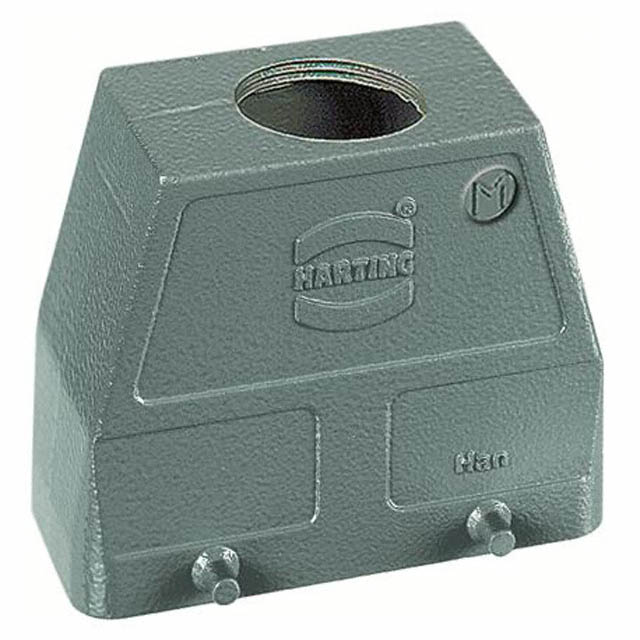

HARTING 19300160428	Locking Clip (2) on Base Bottom	125 °C	-40 C	93.5 mm	3.681 in	76 mm	2.992 in	1.693 "	43 mm	Hood	Gray	IP65 - Dust Tight Water Resistant		Top Entry	Powder Coated	16 B	Aluminum Die Cast
