9B1TP48 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

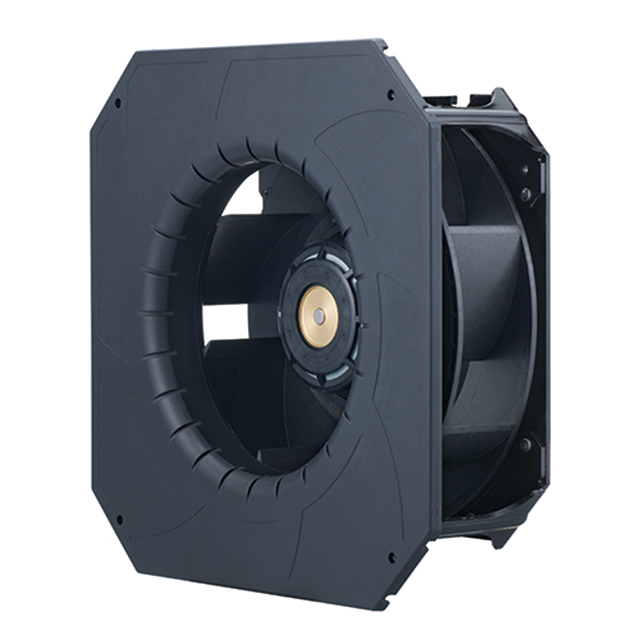

FAN BLOWER CF 270X99MM 48VDC
| Part | Material - Frame | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Current Rating (Amps) | Features | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Power (Watts) | Voltage - Rated | Bearing Type | Static Pressure | Static Pressure | Approval Agency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension | Termination | Noise | Weight [custom] | Weight [custom] | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Aluminum | 40000 Hrs | 72 VDC | 36 VDC | Plastic | 1.6 A | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 622 CFM | 17.42 mł/min | -20 ░C | 70 °C | Blower Centrifugal | 76.8 W | 48 VDC | Ball | 2.13 in H2O | 530.6 Pa | CSA TUV UL | 270 mm | 270 mm | Square | 4 Wire Leads | 71 dB(A) | 3.8 lbs | 1.7 kg | 99 mm |
