PDB241 Series
Manufacturer: Bourns Inc.
Beta
⌘K
PANEL CONTROL - 24MM-ST-CARBON /BULK, BAG PACKAGING
| Part | Size - Body [diameter] | Size - Body [diameter] | Actuator Length [x] | Actuator Length [x] | Termination Style | Tolerance | Built in Switch | Number of Turns | Rotation | Taper | Number of Gangs | Actuator Type | Adjustment Type | Mounting Type | Bushing Thread | Resistive Material | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Resistance (Ohms) | Power (Watts) | Power (Watts) | Resistance (Ohms) | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

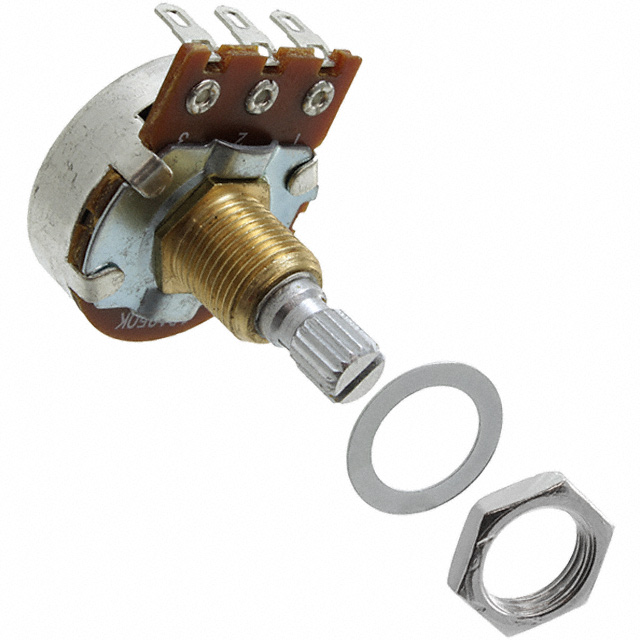

 Bourns Inc. | 0.945 " | 24 mm | 0.748 in | 19 mm | Solder Lug | 20 % | None | 1 | 300 ░ | Linear | 1 | Knurled and Slotted | User Defined | Panel Mount | 3/8-32 | Carbon | 6 mm | 0.236 in | 250000 Ohms | 0.25 W | 0.25 W | ||
Bourns Inc. | 0.969 in | 24.6 mm | 0.748 in | 19 mm | Solder Lug | 20 % | None | 1 | 300 ░ | Logarithmic | 1 | Knurled and Slotted | User Defined | Panel Mount | 3/8-32 | Carbon | 6 mm | 0.236 in | 250000 Ohms | 0.25 W | 0.25 W | ||
 Bourns Inc. | 0.945 " | 24 mm | 0.787 in | 20 mm | Solder Lug | 20 % | None | 1 | 300 ░ | Logarithmic | 1 | Round | User Defined | Panel Mount | M8 x 0.75 | Carbon | 6 mm | 0.236 in | 250000 Ohms | 0.25 W | 0.25 W | ||
Bourns Inc. | 0.945 " | 24 mm | 0.787 in | 20 mm | Solder Lug | 20 % | None | 1 | 300 ░ | Logarithmic | 1 | Round | User Defined | Panel Mount | M8 x 0.75 | Carbon | 6 mm | 0.236 in | 1 MΩ | 0.25 W | 0.25 W | ||
 Bourns Inc. | 0.945 " | 24 mm | 0.787 in | 20 mm | Solder Lug | 20 % | None | 1 | 300 ░ | Linear | 1 | Knurled and Slotted | User Defined | Panel Mount | M8 x 0.75 | Carbon | 6 mm | 0.236 in | 0.5 W | 0.5 W | 100k | ||

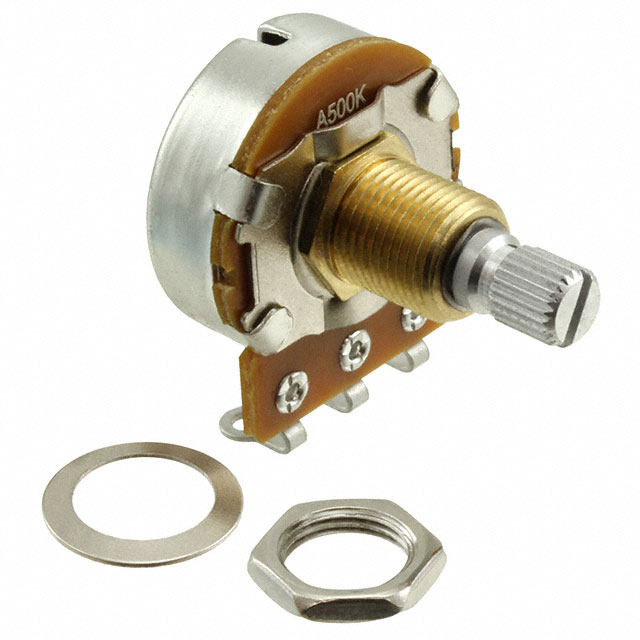

 Bourns Inc. | 0.945 " | 24 mm | 0.748 in | 19 mm | Solder Lug | 20 % | None | 1 | 300 ░ | Logarithmic | 1 | Knurled and Slotted | User Defined | Panel Mount | 3/8-32 | Carbon | 6 mm | 0.236 in | 500 kOhms | 0.25 W | 0.25 W | ||
Bourns Inc. | 0.969 in | 24.6 mm | 1.083 in | 27.5 mm | Solder Lug | 20 % | None | 1 | 300 ░ | Linear | 1 | Knurled and Slotted | User Defined | Panel Mount | 3/8-32 | Carbon | 6 mm | 0.236 in | 250000 Ohms | 0.25 W | 0.25 W | ||
Bourns Inc. | 0.945 " | 24 mm | 0.748 in | 19 mm | Solder Lug | 20 % | None | 1 | 300 ░ | Linear | 1 | Round | User Defined | Panel Mount | 3/8-32 | Carbon | 6.35 mm | 0.25 in | 0.25 W | 0.25 W | 100k | ||
Bourns Inc. | 0.945 " | 24 mm | 0.748 in | 19 mm | Solder Lug | 20 % | None | 1 | 300 ░ | Linear | 1 | Round | User Defined | Panel Mount | 3/8-32 | Carbon | 6.35 mm | 0.25 in | 0.25 W | 0.25 W | 25 kOhms | ||
Bourns Inc. | 0.969 in | 24.6 mm | 0.748 in | 19 mm | Solder Lug | 20 % | None | 1 | 300 ░ | Linear | 1 | Round | User Defined | Panel Mount | 3/8-32 | Carbon | 6.35 mm | 0.25 in | 250000 Ohms | 0.25 W | 0.25 W |
