Pushbutton Switches 4 Tumbler Snap-in Switchlock

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

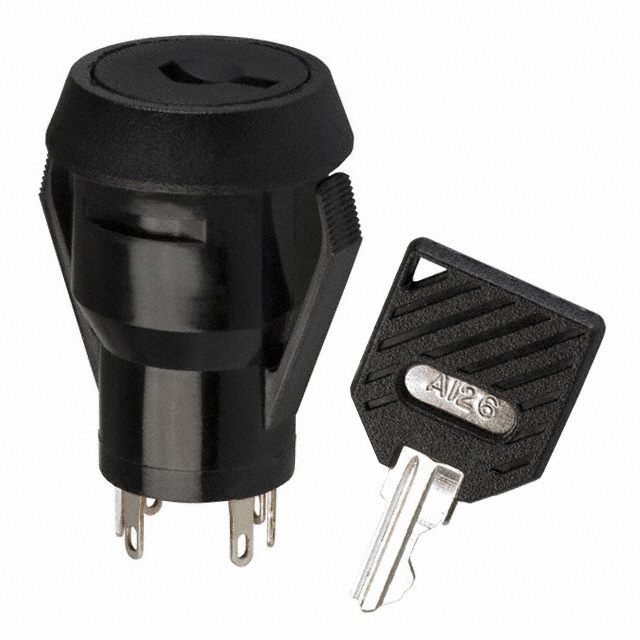

Pushbutton Switches 4 Tumbler Snap-in Switchlock

Part	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - AC	Electrical Life	Depth Behind Flange [z]	Circuit	Key Removable Positions	Contact Material	Contact Finish	Contact Timing	Number of Positions	Switch Function	Actuator Type	Mounting Type	Angle of Throw	Depth Behind Flange
Littelfuse/Commercial Vehicle Products P1011U2CMWCG2	4 A	20.3 mm	Wire Leads	125 V	10000 Cycles	27.23 mm	SPDT	All	Copper	Gold	Not Specified	2	On-On	Flat Key	Panel Mount Snap-In	90 °
Littelfuse/Commercial Vehicle Products P1011U2CM03Q2	4 A	19.3 mm	Solder Lug	125 V	10000 Cycles		SPDT	All	Copper	Silver	Not Specified	2	On-On	Flat Key	Panel Mount Snap-In	90 °	33.48 mm
Littelfuse/Commercial Vehicle Products P10113TCM03Q22	4 A	20.3 mm	Solder Lug	125 V	10000 Cycles		SPDT	1 only	Copper	Silver	Not Specified	2	On-On	Flat Key	Panel Mount Snap-In	90 °	33.48 mm
Littelfuse/Commercial Vehicle Products P201132CM03Q2	4 A	20.3 mm	Solder Lug	125 V	10000 Cycles		DPDT	1 only	Copper	Silver	Not Specified	2	On-On	Flat Key	Panel Mount Snap-In	90 °	33.48 mm
Littelfuse/Commercial Vehicle Products P20113TCMWCQ22	4 A	20.3 mm	Wire Leads	125 V	10000 Cycles	27.23 mm	DPDT	1 only	Copper	Silver	Not Specified	2	On-On	Flat Key	Panel Mount Snap-In	90 °
Littelfuse/Commercial Vehicle Products P20113TCM03Q22	4 A	20.3 mm	Solder Lug	125 V	10000 Cycles		DPDT	1 only	Copper	Silver	Not Specified	2	On-On	Flat Key	Panel Mount Snap-In	90 °	33.48 mm

Catalog

Pushbutton Switches 4 Tumbler Snap-in Switchlock

Key Features

• Snap-in mounting

• Multi-pole and multi-position

• Positive detent

Description

C&K’s P series 4 tumbler switchlocks support the needs of those designing security for computers, point-of-sale terminals and other instrumentation. With snap-in mounting, the P series is known for being long lasting and high-quality.
