WM013 Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 3.6"L X 2.25"W

Part	Weight [custom]	Weight [custom]	Area (L x W)	Area (L x W)	Material	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material Flammability Rating	Area (L x W) [custom]	Area (L x W) [custom]	Design	Ratings	Features	Container Type	Height	Height [z]	Thickness	Thickness	Area (L x W)
Serpac WM013,GY	72.12 g	0.159 lb	8.1 in²	52.3 cm²	ABS Plastic	Gray	2.25 in	3.6 "	57.15 mm	91.44 mm	UL94 HB	8.1 in²	52.3 cm²	Cover Included	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	53.34 mm	2.1 in	2.54 mm	0.1 in

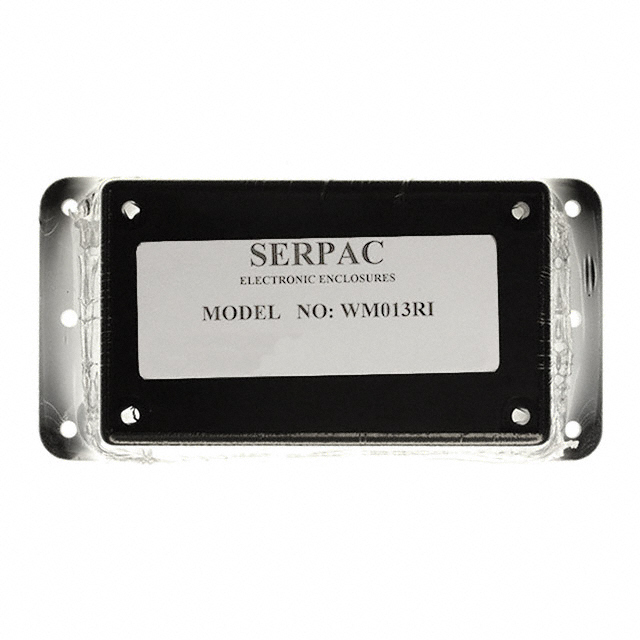

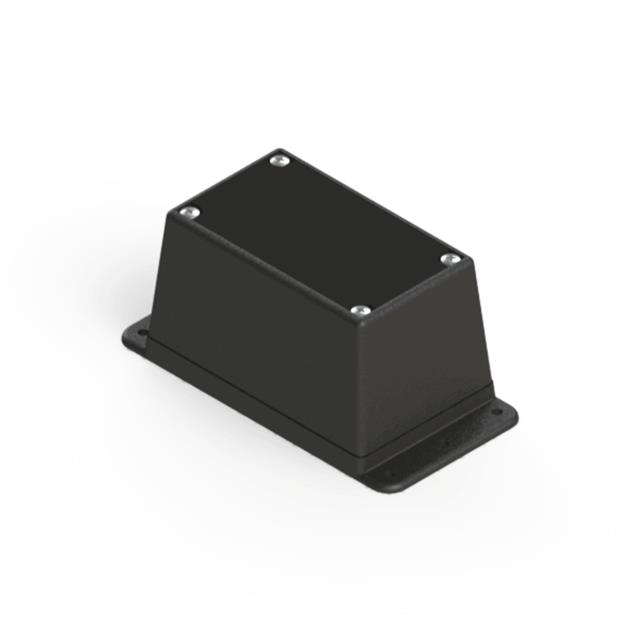

Serpac WM013RI,BK	72.12 g	0.159 lb	8.22 in²	53 cm²	ABS Plastic	Black	2.27 in	3.62 "	57.66 mm	91.95 mm	UL94 HB			Cover Included	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	53.34 mm	2.1 in	2.54 mm	0.1 in

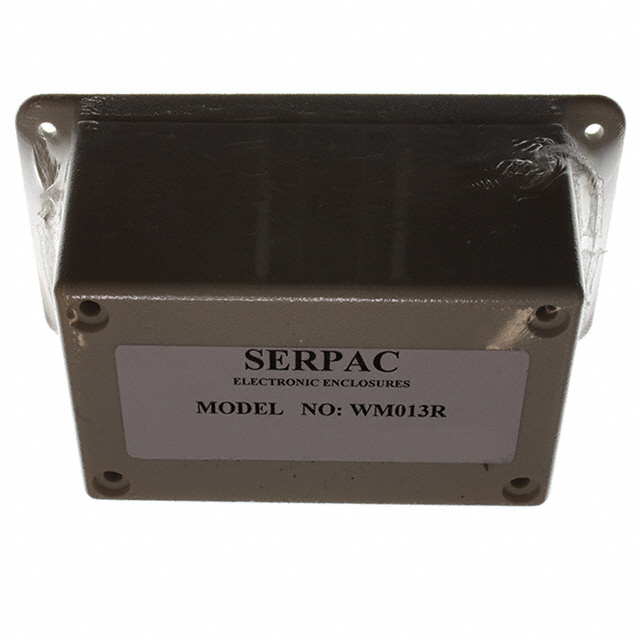

Serpac WM013R,AL	72.12 g	0.159 lb	8.22 in²	53 cm²	ABS Plastic	Almond	2.27 in	3.62 "	57.66 mm	91.95 mm	UL94 HB			Cover Included	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	53.34 mm	2.1 in	2.54 mm	0.1 in

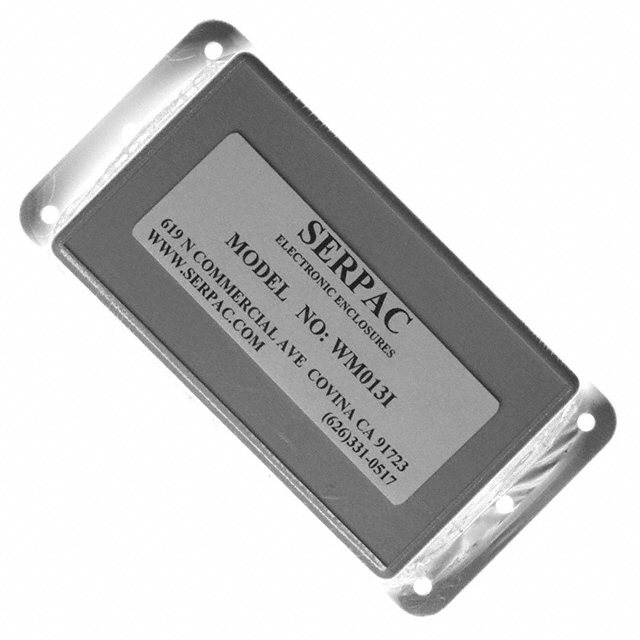

Serpac WM013I,GY	72.12 g	0.159 lb			ABS Plastic	Gray	2.25 in	3.6 "	57.15 mm	91.44 mm	UL94 HB	8.1 in²	52.3 cm²	Cover Included	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	53.34 mm	2.1 in	2.54 mm	0.1 in

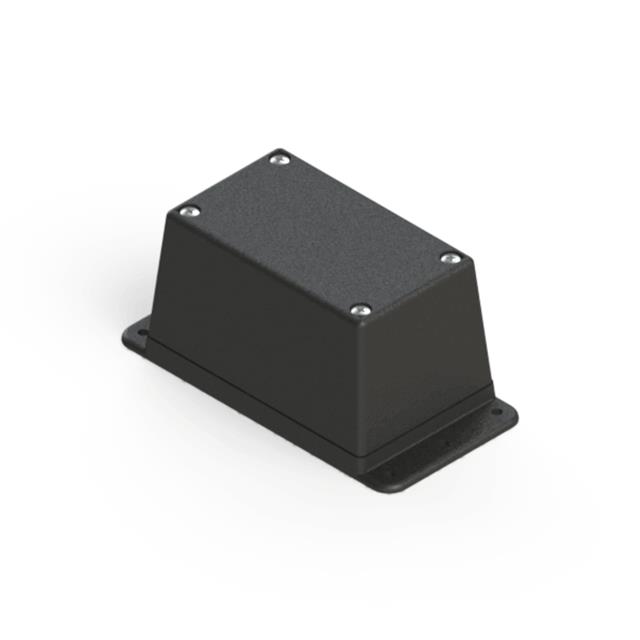

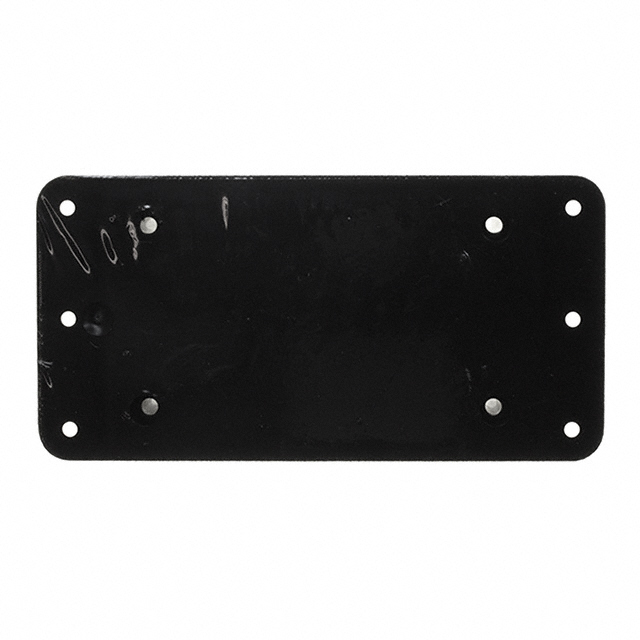

Serpac WM013R,BK	72.12 g	0.159 lb	8.22 in²	53 cm²	ABS Plastic	Black	2.27 in	3.62 "	57.66 mm	91.95 mm	UL94 HB			Cover Included	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	53.34 mm	2.1 in	2.54 mm	0.1 in

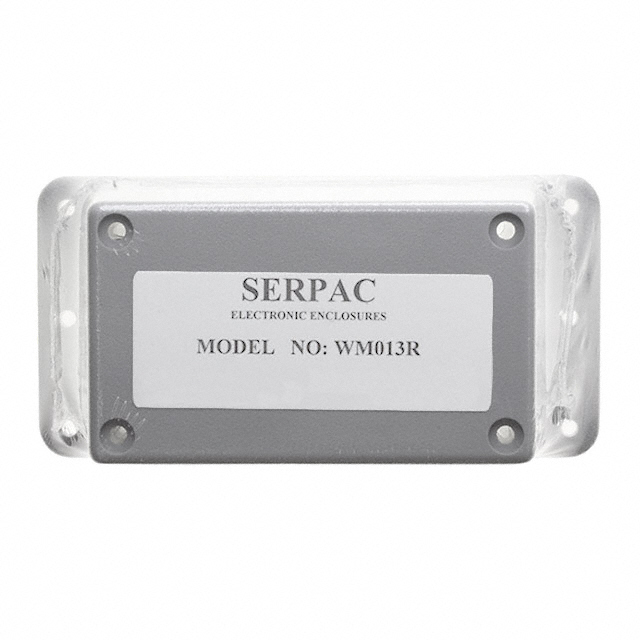

Serpac WM013R,GY	72.12 g	0.159 lb	8.22 in²	53 cm²	ABS Plastic	Gray	2.27 in	3.62 "	57.66 mm	91.95 mm	UL94 HB			Cover Included	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	53.34 mm	2.1 in	2.54 mm	0.1 in
Serpac WM013I,AL	72.12 g	0.159 lb			ABS Plastic	Almond	2.25 in	3.6 "	57.15 mm	91.44 mm	UL94 HB	8.1 in²	52.3 cm²	Cover Included	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	53.34 mm	2.1 in	2.54 mm	0.1 in
Serpac WM013,BK	72.12 g	0.159 lb			ABS Plastic	Black	2.25 in	3.6 "	57.15 mm	91.44 mm	UL94 HB	8.1 in²	52.3 cm²	Cover Included	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	53.34 mm	2.1 in	2.54 mm	0.1 in

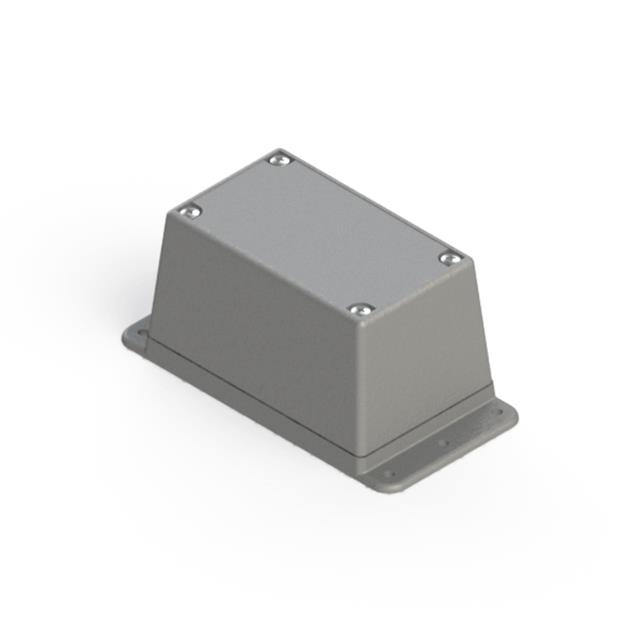

Serpac WM013RI,GY	72.12 g	0.159 lb	8.22 in²	8.22 in˛ 53 cm²	ABS Plastic	Gray	2.27 in	3.62 "	57.66 mm	91.95 mm	UL94 HB			Cover Included	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	53.34 mm	2.1 in	2.54 mm	0.1 in	53 cm˛

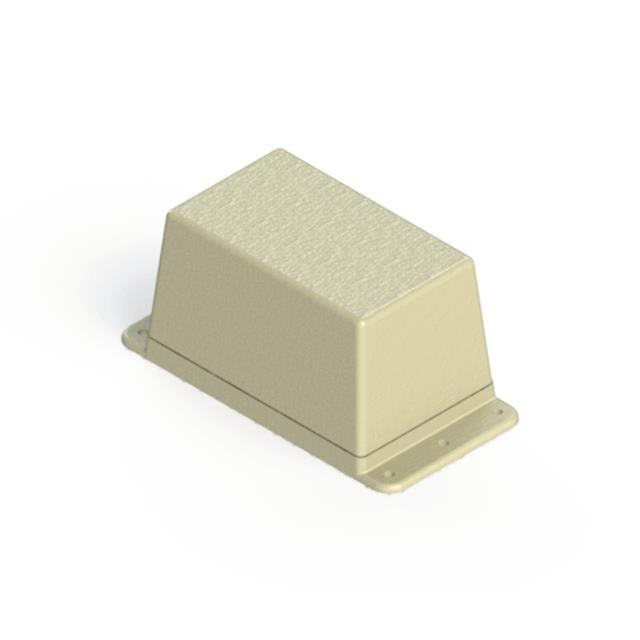

Serpac WM013,AL	72.12 g	0.159 lb			ABS Plastic	Almond	2.25 in	3.6 "	57.15 mm	91.44 mm	UL94 HB	8.1 in²	52.3 cm²	Cover Included	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	53.34 mm	2.1 in	2.54 mm	0.1 in
