1606 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

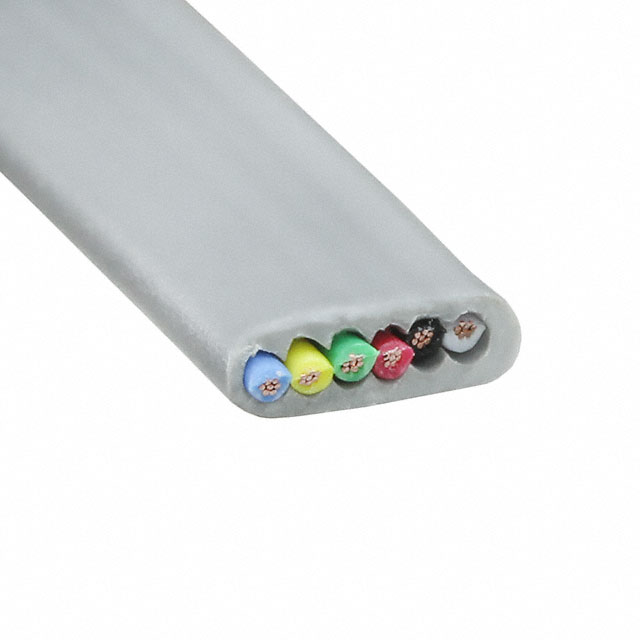

CABLE 6COND 26AWG SILVER 1000'
| Part | Wire Gauge | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Length | Length | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Jacket (Insulation) Material | Conductor Insulation | Usage | Jacket Color | Conductor Strand [x] | Conductor Strand [x] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 26 AWG | 150 V | 0.27 " | 6.86 mm | 6 | 304.8 m | 1000 ft | Copper Bare | -20 ░C | 60 °C | 0.61 mm | 0.024 in | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Polypropylene (PP) | Communication Control | Silver | 34 AWG | 7 | ||
ALPHA WIRE | 26 AWG | 150 V | 0.27 " | 6.86 mm | 6 | Copper Bare | -20 ░C | 60 °C | 0.61 mm | 0.024 in | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Polypropylene (PP) | Communication Control | Silver | 34 AWG | 7 | 328.1 ft | 100 m |
