160481 Series

Catalog

187 PIDG FASTON REC

Part	Color	Contact Material	Tab Width	Tab Width	Terminal Type	Mounting Type	Insulation	Tab Length	Tab Length	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Termination	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Gender	Length - Overall [x]	Length - Overall [x]

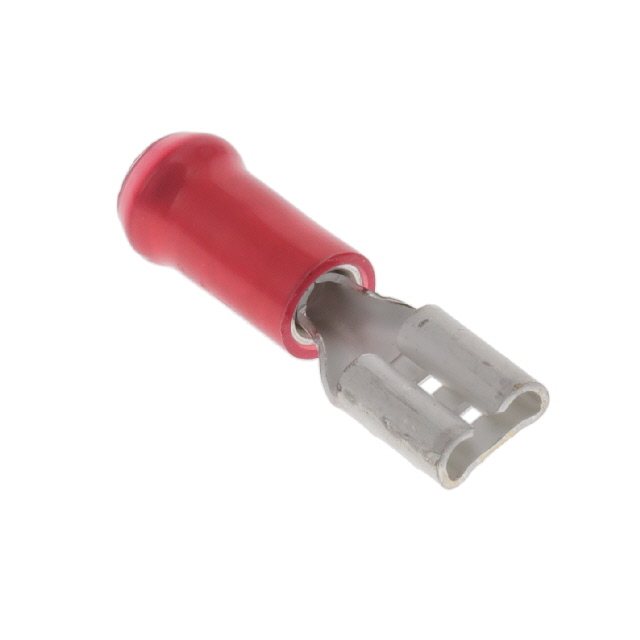

TE Connectivity Raychem Cable Protection 5-160481-1	Red	Brass	4.75 mm	0.187 in	Standard	Free Hanging (In-Line)	Non-Mating End Insulated	6.35 mm	0.25 in	0.14 in	0.105 in	3.56 mm	2.67 mm	Crimp	0.02 "	0.51 mm	22 AWG	16 AWG	Tin	Female	0.822 in	20.88 mm
