292323 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

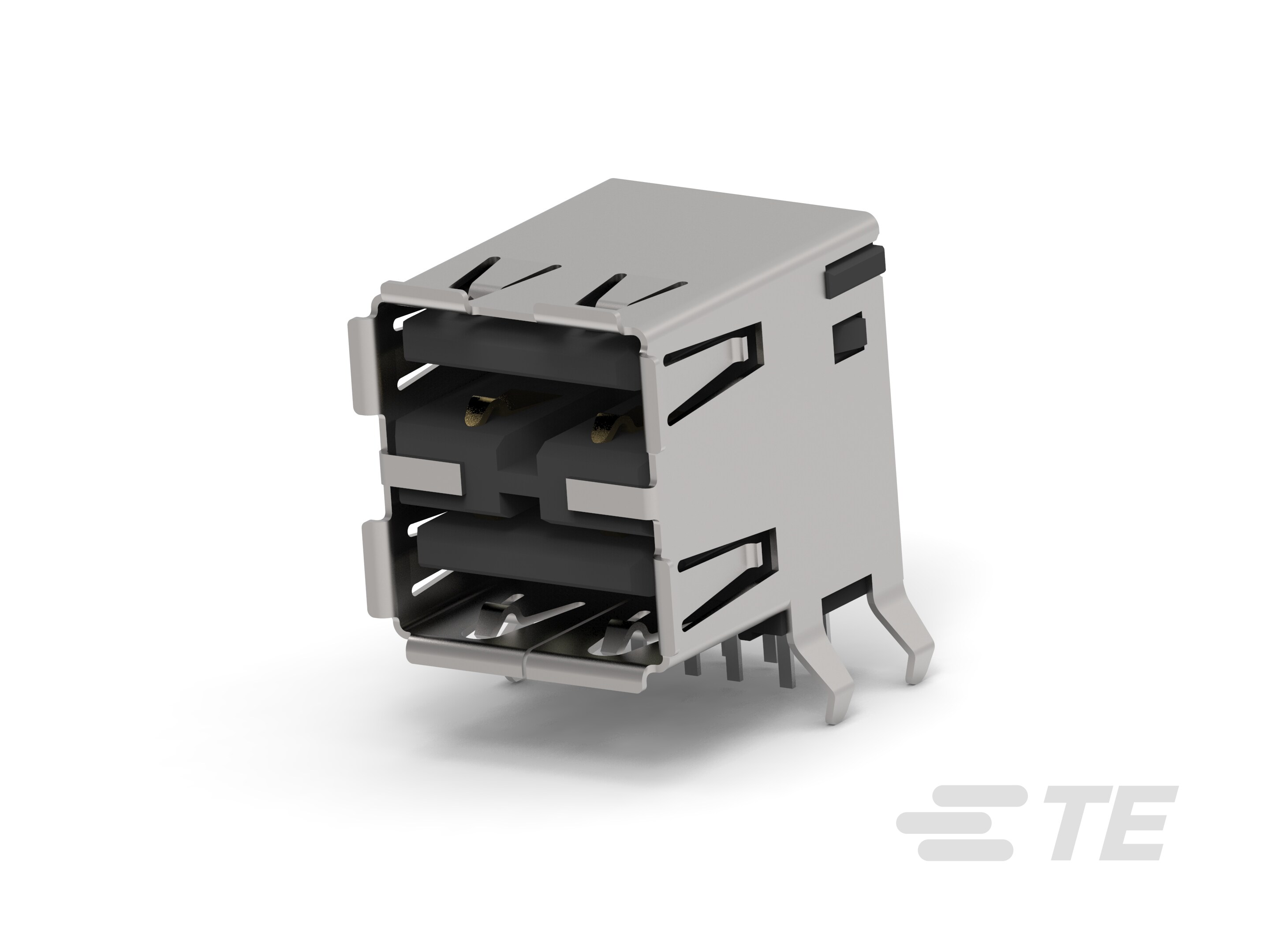

RECEPTACLE ASSY RIGHT ANGLE STACKED THRU
| Part | Shell/Shielding Material | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Current Rating (Amps) | Contact Finish | Material Flammability Rating | Termination | Number of Ports | Specifications | Mounting Feature | Mounting Type | Number of Contacts | Mating Cycles | Shielding | Voltage - Rated | Connector Type | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Copper Alloy | 85 °C | -55 °C | Receptacle | 1 A | Gold Gold-Palladium | UL94 V-0 | Solder | 2 | USB 2.0 | Horizontal | Through Hole Right Angle | 8 | 1500 | Shielded | 30 VAC | Stacked USB-A (USB TYPE-A) | Black |
 TE Connectivity Raychem Cable Protection | Copper Alloy | 85 °C | -55 °C | Receptacle | 1 A | Gold Gold-Palladium | UL94 V-0 | Solder | 2 | USB 2.0 | Horizontal | Through Hole Right Angle | 8 | 1500 | Shielded | 30 VAC | Stacked USB-A (USB TYPE-A) | Black |
