09370160 Series

Manufacturer: HARTING

Catalog

ENCLOSURE FOR CONNECTORS: HDC; SIZE 16B; HAN® M; IP65; ZINC ALLOY

Part	Lock Location	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Style	Size	Thread Size	Connector Type	Housing Color	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Housing Finish	Features
HARTING 09370160581	Locking Clip (1) on Hood	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm	Side Entry	16 B	PG29	Hood

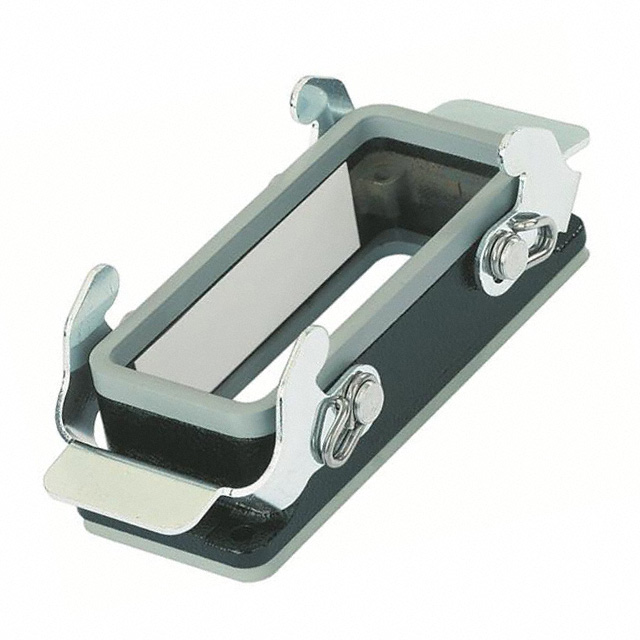

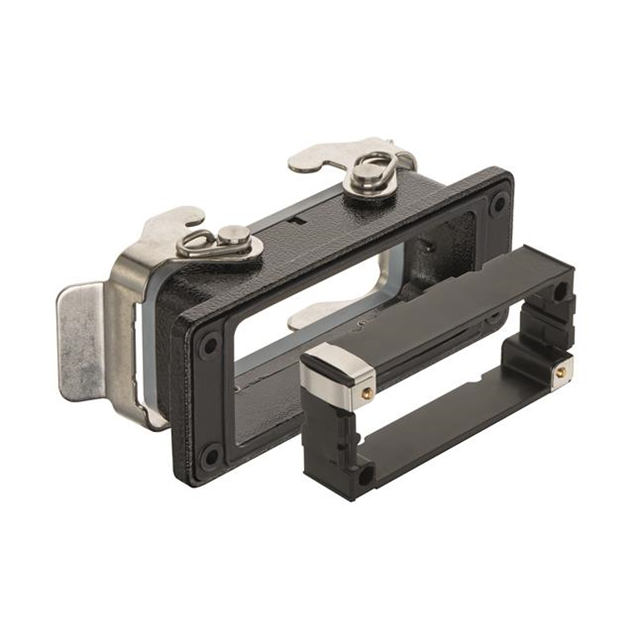

HARTING 09370160391	Locking Clip (2) on Base Bottom							Bottom Entry	16 B		Base - Panel Mount	Black	IP66 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	Powder Coated
HARTING 09370160580	Locking Clip (1) on Hood	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm	Side Entry	16 B	PG21	Hood
HARTING 09370160398	Locking Clip (1) on Base Bottom							Bottom Entry	16 B		Base - Panel Mount	Black	IP66 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	Powder Coated
HARTING 09370160397	Locking Clip (1) on Base Bottom							Bottom Entry	16 B		Base - Panel Mount	Black	IP66 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	Powder Coated

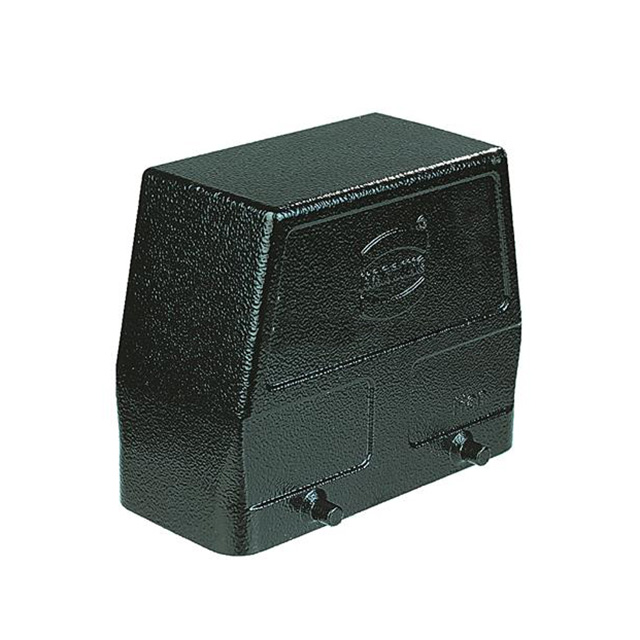

HARTING 09370160521	Locking Clip (2) on Base Bottom	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm	Side Entry	16 B	PG29	Hood	Black	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	Powder Coated
HARTING 09370160301	Locking Clip (2) on Base Bottom	4.449 "	43.4 mm	1.165 in	29.6 mm	1.709 "	113 mm	Bottom Entry	16 B		Base - Panel Mount	Black	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	Epoxy Powder Paint

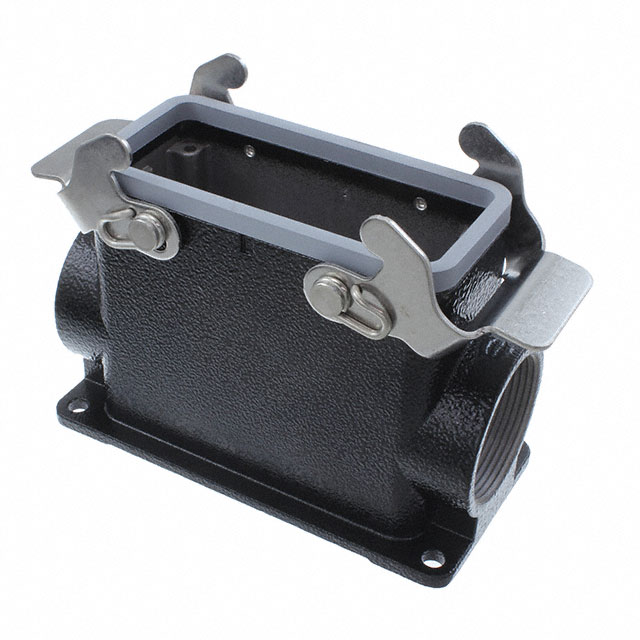

HARTING 09370160271	Locking Clip (2) on Base Bottom	4.606 in	57 mm	3.181 in	80.8 mm	2.244 "	117 mm	Side Entry	16 B	PG29	Base - Box Mount	Black	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Aluminum Die Cast	Powder Coated	Feed Through
HARTING 09370160481	Locking Clip (1) on Hood	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm	Top Entry	16 B	PG29	Hood
HARTING 09370160281	Locking Clip (1) on Hood	4.606 in	57 mm	3.181 in	80.8 mm	2.244 "	117 mm	Side Entry	16 B	PG29	Base - Box Mount							Feed Through
