227079 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN BNC PLUG STR 50 OHM CRIMP

Part	Center Contact Material	Voltage Rating	Housing Color	Cable Group	Mounting Type	Body Finish	Insertion Loss	Impedance	Fastening Type	Connector Style	Contact Termination	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Includes	Shield Termination	Connector Type	Frequency - Max [Max]	Mating Cycles	Center Contact Plating

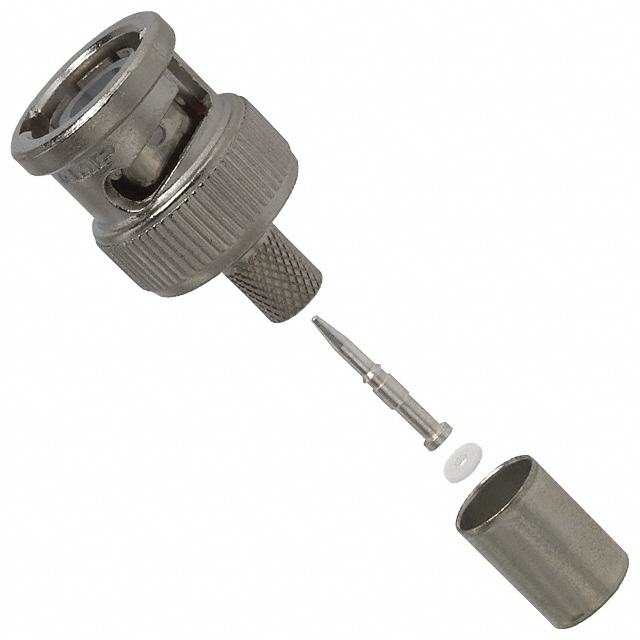

TE Connectivity Raychem Cable Protection 7-227079-2	Brass	500 V	Silver	59A 59B 62 62A 62B RG-59	Free Hanging (In-Line)	Nickel	0.2 dB	50 Ohms	Bayonet Lock	BNC	Crimp	Brass	85 °C	-55 °C	1	1 Connector 1 Contact 1 Ferrule 1 Spacer	Crimp	Male Pin Plug	4 GHz	500	Gold
TE Connectivity Raychem Cable Protection 7-227079-6	Brass	500 V	Silver	Belden 88241	Free Hanging (In-Line)	Nickel	0.2 dB	50 Ohms	Bayonet Lock	BNC	Crimp	Brass	85 °C	-55 °C	1	1 Connector 1 Contact 1 Ferrule 1 Spacer	Crimp	Male Pin Plug	4 GHz	500	Gold
TE Connectivity Raychem Cable Protection 227079-6	Brass	500 V	Silver	223 55A 55B RG-55	Free Hanging (In-Line)	Nickel	0.2 dB	50 Ohms	Bayonet Lock	BNC	Crimp	Brass	85 °C	-55 °C	1	1 Connector 1 Contact 1 Ferrule	Crimp	Male Pin Plug	4 GHz	500	Gold

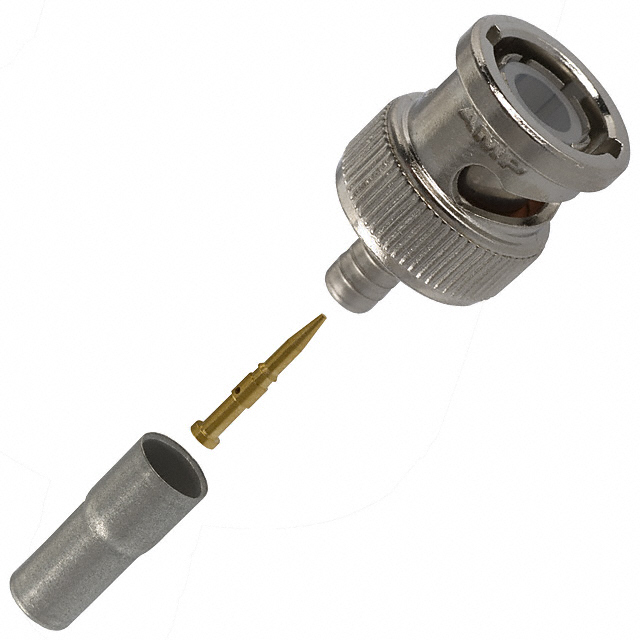

TE Connectivity Raychem Cable Protection 6-227079-8	Brass	500 V	Silver	Belden 89907	Free Hanging (In-Line)	Nickel	0.2 dB	50 Ohms	Bayonet Lock	BNC	Crimp	Brass	85 °C	-55 °C	1	1 Connector 1 Contact 1 Ferrule	Crimp	Male Pin Plug	4 GHz	500	Gold

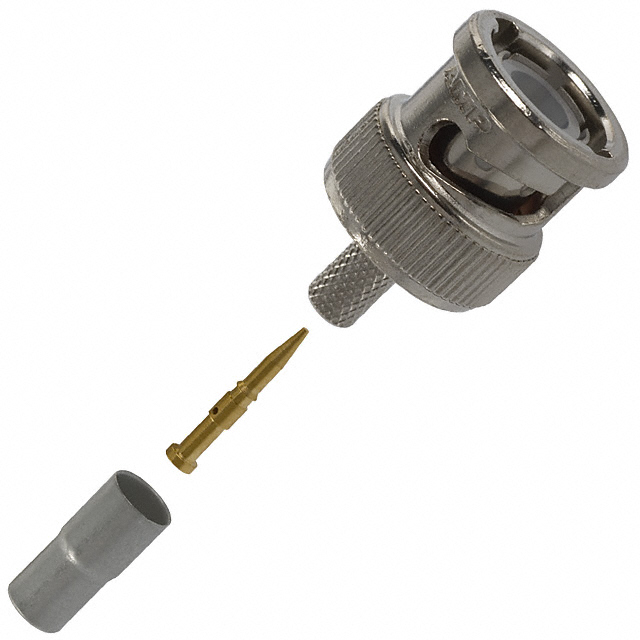

TE Connectivity Raychem Cable Protection 1-227079-9	Brass	500 V	Silver	Belden 8218	Free Hanging (In-Line)	Nickel	0.2 dB	50 Ohms	Bayonet Lock	BNC	Crimp	Brass	85 °C	-55 °C	1	1 Connector 1 Contact 1 Ferrule	Crimp	Male Pin Plug	4 GHz	500	Gold
TE Connectivity Raychem Cable Protection 6-227079-5	Brass	500 V	Silver	Belden 9290	Free Hanging (In-Line)	Nickel	0.2 dB	50 Ohms	Bayonet Lock	BNC	Crimp	Brass	85 °C	-55 °C	1	1 Connector 1 Contact 1 Ferrule	Crimp	Male Pin Plug	4 GHz	500	Gold

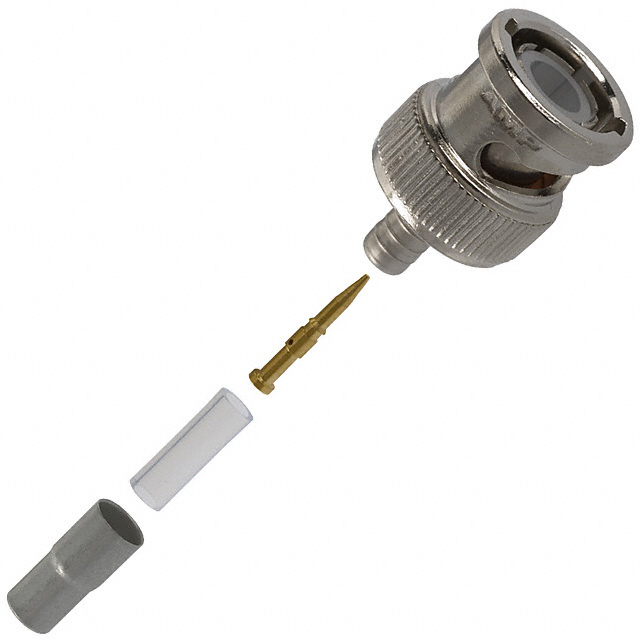

TE Connectivity Raychem Cable Protection 1-227079-6	Brass	500 V	Silver	188 RG-174	Free Hanging (In-Line)	Nickel	0.2 dB	50 Ohms	Bayonet Lock	BNC	Crimp	Brass	85 °C	-55 °C	1	1 Connector 1 Contact 1 Ferrule 1 Sleeve	Crimp	Male Pin Plug	4 GHz	500	Gold

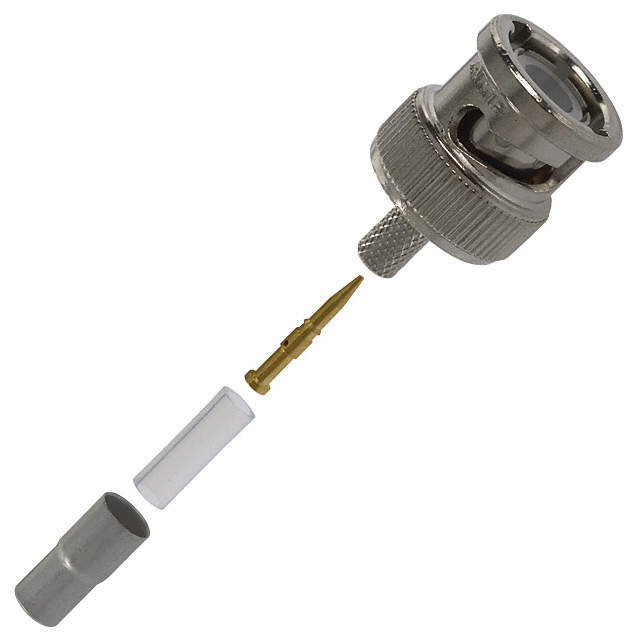

TE Connectivity Raychem Cable Protection 8-227079-2	Brass	500 V	Silver	316 (Double Braid) RG-188	Free Hanging (In-Line)	Nickel	0.2 dB	50 Ohms	Bayonet Lock	BNC	Crimp	Brass	85 °C	-55 °C	1	1 Connector 1 Contact 1 Ferrule 1 Sleeve	Crimp	Male Pin Plug	4 GHz	500	Gold
TE Connectivity Raychem Cable Protection 6-227079-7	Brass	500 V	Silver	Belden 9907 RG-141A	Free Hanging (In-Line)	Nickel	0.2 dB	50 Ohms	Bayonet Lock	BNC	Crimp	Brass	85 °C	-55 °C	1	1 Connector 1 Contact 1 Ferrule	Crimp	Male Pin Plug	4 GHz	500	Gold
TE Connectivity Raychem Cable Protection 4-227079-9	Brass	500 V	Silver	Belden 88241	Free Hanging (In-Line)	Nickel	0.2 dB	50 Ohms	Bayonet Lock	BNC	Crimp	Brass	85 °C	-55 °C	1	1 Connector 1 Contact 1 Ferrule 1 Spacer	Crimp	Male Pin Plug	4 GHz	500	Gold
