J01462A0 Series

Catalog

2.2-5 ADAPT STR S M-F PORTSAV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Center Contact Material	Body Finish	Mounting Type	Impedance	Center Contact Plating	Adapter Type	Conversion Type	Convert From (Adapter End)	Convert To (Adapter End)	Frequency - Max [Max]	Style	Adapter Series [Min]	Adapter Series [Max]	Ingress Protection	Body Material	Center Gender	Mounting Feature

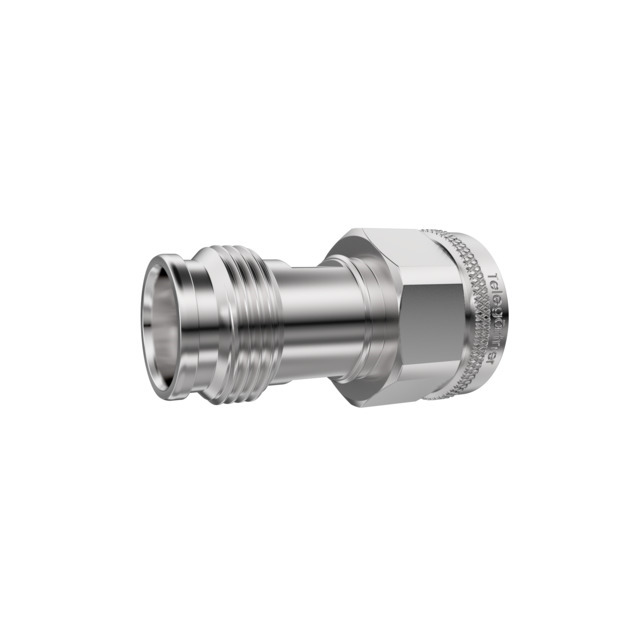

Telegartner Inc 100025521	90 °C	-55 C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	White Bronze	Free Hanging (In-Line)	50 Ohms	Silver	Plug to Jack	Same Series	2.2/5 Jack Female Socket	2.2/5 Plug Male Pin	6000 MHz	Straight	2.2/5	2.2/5	IP68 - Dust Tight Waterproof

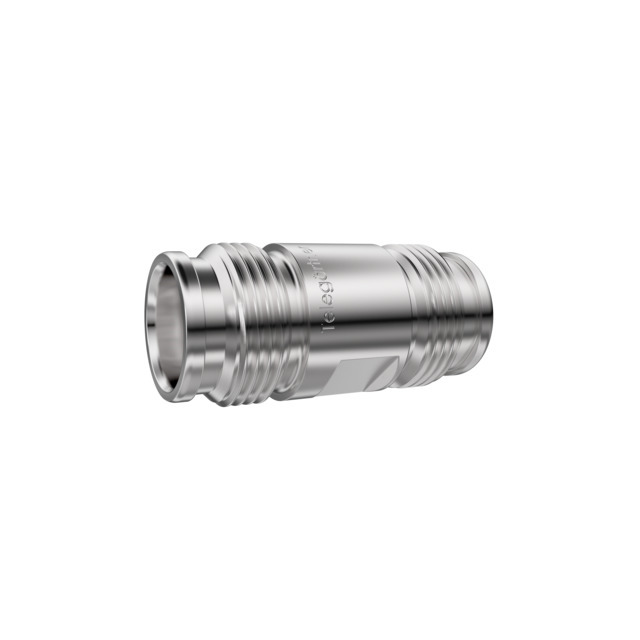

Telegartner Inc 100025517	90 °C	-55 C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Silver	Free Hanging (In-Line)	50 Ohms	Silver	Jack to Jack	Same Series	2.2/5 Jack Female Socket	2.2/5 Jack Female Socket	6000 MHz	Straight	2.2/5	2.2/5	IP68 - Dust Tight Waterproof	Copper Alloy	Female to Female

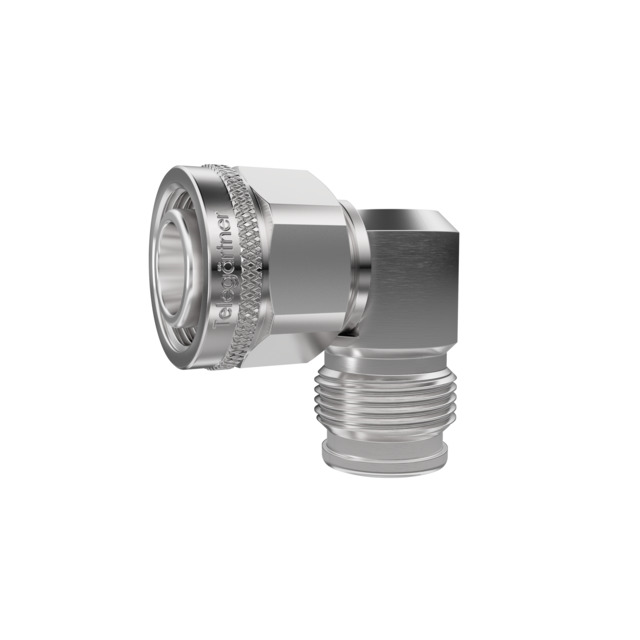

Telegartner Inc 100025522	90 °C	-55 C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Silver	Free Hanging (In-Line) Right Angle	50 Ohms	Silver	Plug to Jack	Same Series	2.2/5 Jack Female Socket	2.2/5 Plug Male Pin	6000 MHz	Right Angle	2.2/5	2.2/5	IP68 - Dust Tight Waterproof	Copper Alloy

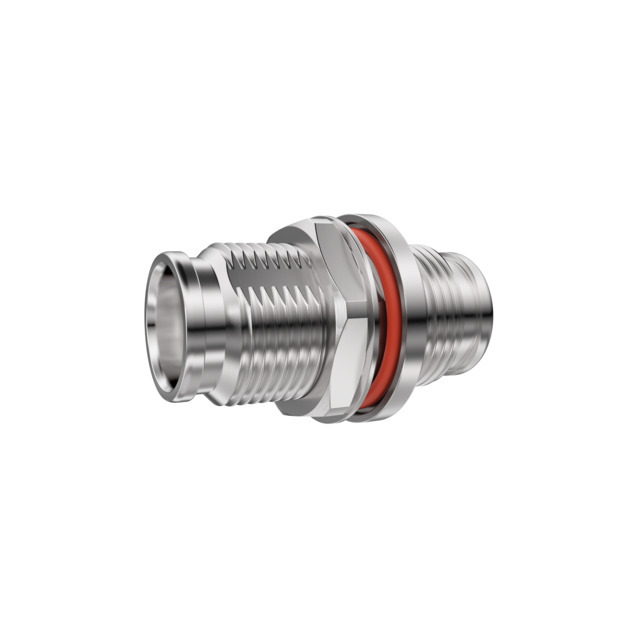

Telegartner Inc 100025518	90 °C	-55 C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Silver	Panel Mount	50 Ohms	Silver	Jack to Jack	Same Series	2.2/5 Jack Female Socket	2.2/5 Jack Female Socket	6000 MHz	Straight	2.2/5	2.2/5	IP68 - Dust Tight Waterproof	Copper Alloy	Female to Female	Bulkhead

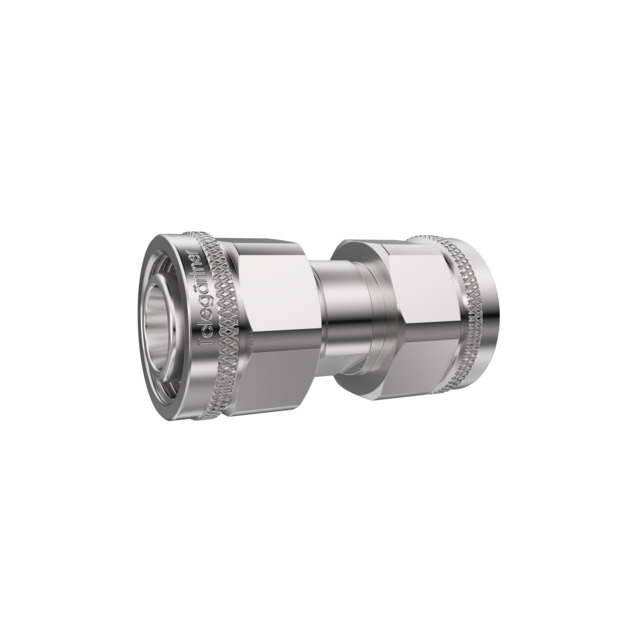

Telegartner Inc 100025519	90 °C	-55 C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	White Bronze	Free Hanging (In-Line)	50 Ohms	Silver	Plug to Plug	Same Series	2.2/5 Plug Male Pin	2.2/5 Plug Male Pin	6000 MHz	Straight	2.2/5	2.2/5	IP68 - Dust Tight Waterproof		Male to Male
