GST36B48 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

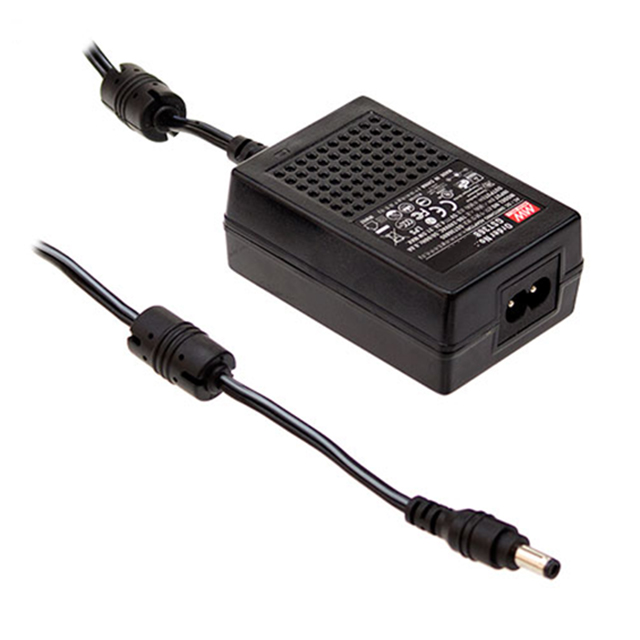

AC/DC DESKTOP ADAPTER 48V 36W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Input Type | Approval Agency | Current - Output (Max) [Max] | Polarization | Form | Voltage - Output | Region Utilized | Power (Watts) | Applications | Efficiency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Cord Length | Cord Length | No Load Power Consumption | Output Connector [x] | Output Connector [diameter] | Output Connector | Input Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | -30 ░C | 70 °C | Cord (Sold Separately) | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 750 mA | Positive Center | Desktop (Class II) | 48 V | International | 36 W | ITE (Commercial) | Level VI | 33 mm | 1.3 in | 3.11 in | 79 mm | 54 mm | 2.13 in | 1 m | 39.4 in | 75 mW | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | IEC 320-C8 |
