R60MN Series

Manufacturer: KEMET

Catalog

CAP, 0.47ΜF, 400V, 10%, PET, RADIAL

Part	Dielectric Material	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Termination	Capacitance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Lead Spacing	Lead Spacing	Voltage Rating - AC	Voltage Rating - DC	Mounting Type	Applications	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
KEMET R60MN3470AA30K	Metallized Polyester Polyethylene Terephthalate (PET)	0.594 in	15.1 mm	PC Pins	0.47 µF	10 %	-55 C	105 ░C	Radial	0.886 in	22.5 mm	200 V	400 V	Through Hole	Automotive	AEC-Q200	1.043 in	0.236 "	26.5 mm	6 mm
KEMET R60MN3220AA30K	Metallized Polyester Polyethylene Terephthalate (PET)	0.594 in	15.1 mm	PC Pins	0.22 µF	10 %	-55 C	105 ░C	Radial	0.886 in	22.5 mm	200 V	400 V	Through Hole	Automotive	AEC-Q200	1.043 in	0.236 "	26.5 mm	6 mm
KEMET R60MN32204030K	Metallized Polyester Polyethylene Terephthalate (PET)	0.594 in	15.1 mm	PC Pins	0.22 µF	10 %	-55 C	105 ░C	Radial	0.886 in	22.5 mm	200 V	400 V	Through Hole	Automotive	AEC-Q200	1.043 in	0.236 "	26.5 mm	6 mm
KEMET R60MN3470DQ30K	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	0.594 in	15.1 mm	PC Pins	0.47 µF	10 %	-55 C	105 ░C	Radial	0.886 in	22.5 mm	200 V	400 V	Through Hole	Automotive	AEC-Q200	1.043 in	0.236 "	26.5 mm	6 mm
KEMET R60MN3470AA30J	Polyester Metallized	0.594 in	15.1 mm	PC Pins	0.47 µF	5 %	-55 C	105 ░C	Radial	0.886 in	22.5 mm	200 V	400 V	Through Hole	Automotive	AEC-Q200	1.043 in	0.236 "	26.5 mm	6 mm

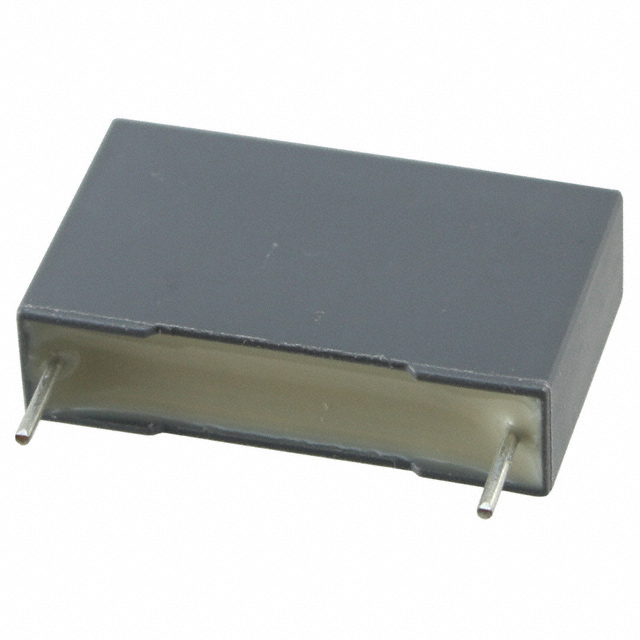

KEMET R60MN3680AA30K	Metallized Polyester Polyethylene Terephthalate (PET)			PC Pins	0.68 µF	10 %	-55 C	105 ░C	Radial	0.886 in	22.5 mm	200 V	400 V	Through Hole	Automotive	AEC-Q200	1.043 in	0.276 in	26.5 mm	7 mm	16.1 mm	0.634 "
KEMET R60MN41005040K	Metallized Polyester Polyethylene Terephthalate (PET)		0.673 in	PC Pins	1 µF	10 %	-55 C	105 ░C	Radial	0.886 in	22.5 mm	200 V	400 V	Through Hole	Automotive	AEC-Q200	1.043 in	0.335 in	26.5 mm	8.5 mm			17.1 mm
KEMET R60MN41505040K	Metallized Polyester Polyethylene Terephthalate (PET)		0.732 in	PC Pins	1500 nF	10 %	-55 C	105 ░C	Radial	0.886 in	22.5 mm	200 V	400 V	Through Hole	Automotive	AEC-Q200	1.043 in	0.394 in	26.5 mm	10 mm			18.6 mm
KEMET R60MN4100JE40J	Metallized Polyester Polyethylene Terephthalate (PET)		0.673 in	PC Pins	1 µF	5 %	-55 C	105 ░C	Radial	0.886 in	22.5 mm	200 V	400 V	Through Hole	Automotive	AEC-Q200	1.043 in	0.335 in	26.5 mm	8.5 mm			17.1 mm
KEMET R60MN34705030J	Metallized Polyester Polyethylene Terephthalate (PET)	0.594 in	15.1 mm	PC Pins	0.47 µF	5 %	-55 C	105 ░C	Radial	0.886 in	22.5 mm	200 V	400 V	Through Hole	Automotive	AEC-Q200	1.043 in	0.236 "	26.5 mm	6 mm
