MAX20446 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

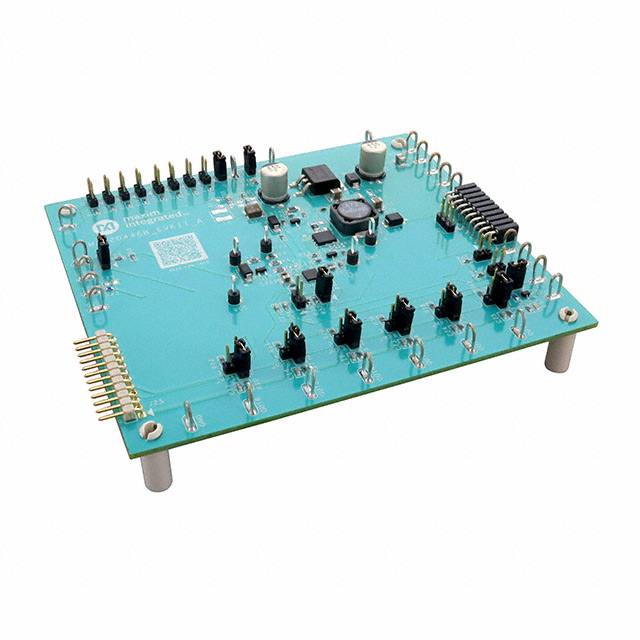

EVAL BOARD FOR MAX20446B
| Part | Topology | Internal Switch(s) | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Number of Outputs | Applications | Current - Output / Channel | Voltage - Supply (Max) [Max] | Dimming | Type | Mounting Type | Voltage - Supply (Min) [Min] | Voltage - Output | Frequency [Max] | Frequency [Min] | Package / Case | Grade | Voltage - Output [Max] | Voltage - Output [Min] | Features | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents | Outputs and Type | Utilized IC / Part | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | |||||||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated | Boost SEPIC | 125 °C | -40 °C | 24-TQFN (4x4) | 6 | Central Information Displays Infotainment Displays Instrument Clusters | 120 mA | 40 V | Analog I2C PWM | DC DC Controller | Surface Mount | 4.5 V | 52 V | 2.2 MHz | 400 kHz | ||||||||||||
Analog Devices Inc./Maxim Integrated | Boost SEPIC | 125 °C | -40 °C | 24-TQFN (4x4) | 6 | Central Information Displays Infotainment Displays Instrument Clusters | 120 mA | 40 V | Analog I2C PWM | DC DC Controller | Surface Mount | 4.5 V | 52 V | 2.2 MHz | 400 kHz | ||||||||||||
 Analog Devices Inc./Maxim Integrated | Boost SEPIC | 125 °C | -40 °C | 24-TQFN (4x4) | 6 | 130 mA | 36 V | PWM | DC DC Controller | Surface Mount | 4.5 V | 2.42 MHz | 360 kHz | 24-WFQFN Exposed Pad | Automotive | 5.25 V | 4.75 V | ||||||||||
 Analog Devices Inc./Maxim Integrated | Dimmable | 4.5 V | 36 V | Board(s) | 6 Outputs | MAX20446 | |||||||||||||||||||||
Analog Devices Inc./Maxim Integrated | SEPIC Step-Up (Boost) | 125 °C | -40 °C | 24-TQFN (4x4) | 6 | Backlight Central Information Displays Infotainment Displays Instrument Clusters | 120 mA | 40 V | Analog I2C PWM | DC DC Controller | Surface Mount | 4.5 V | 52 V | 2.2 MHz | 400 kHz | 24-WFQFN Exposed Pad | Automotive | AEC-Q100 | |||||||||
Analog Devices Inc./Maxim Integrated | SEPIC Step-Up (Boost) | 125 °C | -40 °C | 24-TQFN (4x4) | 6 | Backlight Central Information Displays Infotainment Displays Instrument Clusters | 120 mA | 40 V | Analog I2C PWM | DC DC Controller | Surface Mount | 4.5 V | 52 V | 2.2 MHz | 400 kHz | 24-WFQFN Exposed Pad | Automotive | AEC-Q100 |
