SH-7070 Series

Catalog

ROTARY CODE SW, 16POS, HEX COMP0.1A, 5V

Part	Electrical Life	Body Material	Length	Length	Actuator Type	Pitch	Pitch	Voltage Rating	Washable	Actuator Level	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Number of Positions	Contact Material	Current Rating (Amps)	Contact Finish	Termination Style	Mounting Type

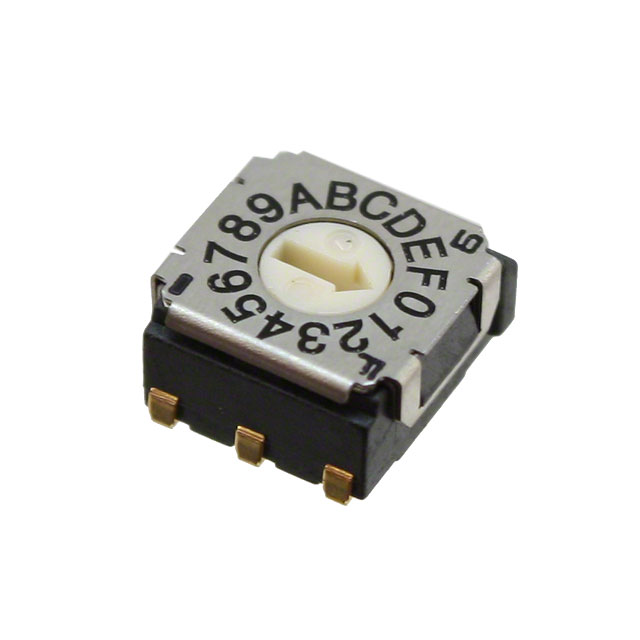

Nidec Components Corporation SH-7070TA	10000 Cycles	Polyphenylene Sulfide (PPS)	7.3 mm	0.287 in	Rotary for Tool	2.54 mm	0.1 "	5 V		Flush Recessed	Hexadecimal Complement	85 °C	-40 C	0.148 in	3.75 mm	16	Copper Alloy	100 mA	Gold	J Lead	Surface Mount
Nidec Components Corporation SH-7070MC	10000 Cycles	Polyphenylene Sulfide (PPS)	7.3 mm	0.287 in	Rotary for Tool	2.54 mm	0.1 "	5 V		Flush Recessed	Hexadecimal Complement	85 °C	-40 C	0.146 in	3.7 mm	16	Copper Alloy	100 mA	Gold	PC Pin	Through Hole
