MB-09-530 Series

Catalog

BUZZER PIEZO 35.8MM PNL MNT

Part	Voltage Range [Min]	Voltage Range [Max]	Frequency	Technology	Approval Agency	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Sound Pressure Level (SPL)	Termination	Termination	Termination	Driver Circuitry	Operating Mode	Current - Supply [Min]	Current - Supply [Max]	Input Type	Ingress Protection	Port Location	Mounting Type	Size / Dimension [diameter]

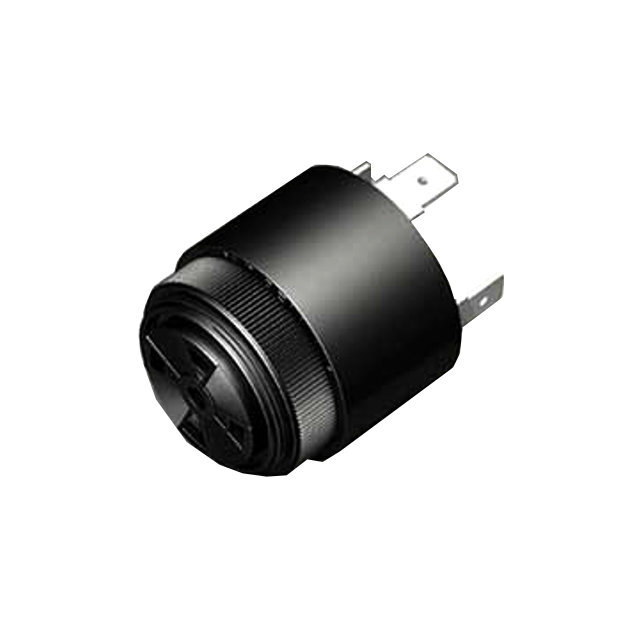

Floyd Bell Inc MB-09-530-Q(U)D	5 VDC	30 V	2.9 kHz	Piezo	UL UR	35.8 mm	1.409 in	1.38 in	35.05 mm	95 dB	Quick Connect Tab	0.25 "	6.35 mm	Indicator Internally Driven	Fast Pulse Single Tone	2 mA	20 mA	DC	IP68 - Dust Tight Waterproof	Top	Panel Mount
Floyd Bell Inc MB-09-530-SMR	5 VDC	30 V	2.9 kHz	Piezo	UL UR		35.81 mm	1.38 in	35.05 mm	95 dB	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	Indicator Internally Driven	Medium Pulse	2 mA	20 mA	DC	IP68 - Dust Tight Waterproof	Top	Panel Mount	1.41 in
Floyd Bell Inc MB-09-530-W(U)	5 VDC	30 V	2.9 kHz	Piezo	UL UR	35.8 mm	1.409 in	1.38 in	35.05 mm	95 dB	Wire Leads			Indicator Internally Driven	Fast Pulse	2 mA	20 mA	DC	IP68 - Dust Tight Waterproof	Top	Panel Mount
Floyd Bell Inc MB-09-530-Q(S)D	5 VDC	30 V	2.9 kHz	Piezo	UL UR	35.8 mm	1.409 in	1.38 in	35.05 mm	95 dB	Quick Connect Tab	0.25 "	6.35 mm	Indicator Internally Driven	Pulse Single Tone Slow	2 mA	20 mA	DC	IP68 - Dust Tight Waterproof	Top	Panel Mount

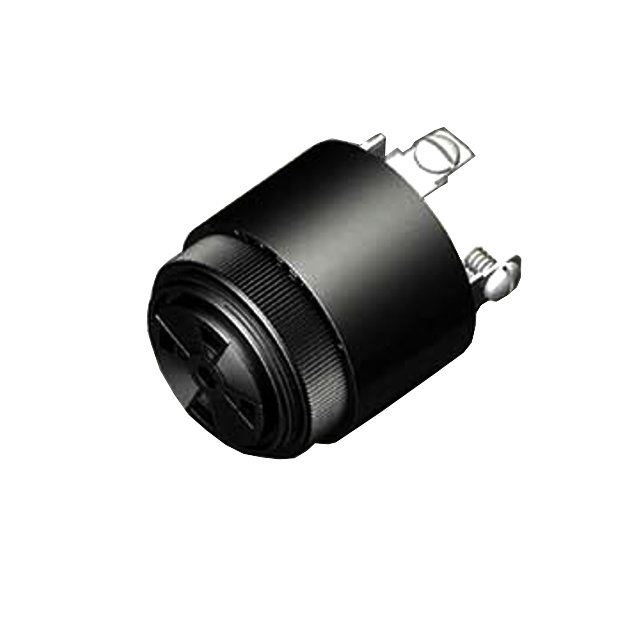

Floyd Bell Inc MB-09-530-S(U)D	5 VDC	30 V	2.9 kHz	Piezo	UL UR		35.81 mm	1.38 in	35.05 mm	95 dB	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	Indicator Internally Driven	Fast Pulse Single Tone	2 mA	20 mA	DC	IP68 - Dust Tight Waterproof	Top	Panel Mount	1.41 in
Floyd Bell Inc MB-09-530-QMR	5 VDC	30 V	2.9 kHz	Piezo	UL UR		35.81 mm	1.38 in	35.05 mm	95 dB	Quick Connect Tab	0.25 "	6.35 mm	Indicator Internally Driven	Medium Pulse	2 mA	20 mA	DC	IP68 - Dust Tight Waterproof	Top	Panel Mount	1.41 in
Floyd Bell Inc MB-09-530-Q(M)	5 VDC	30 V	2.9 kHz	Piezo	UL UR	35.8 mm	1.409 in	1.38 in	35.05 mm	95 dB	Quick Connect Tab	0.25 "	6.35 mm	Indicator Internally Driven	Medium Pulse	2 mA	20 mA	DC	IP68 - Dust Tight Waterproof	Top	Panel Mount
Floyd Bell Inc MB-09-530-W(M)	5 VDC	30 V	2.9 kHz	Piezo	UL UR		35.81 mm	1.38 in	35.05 mm	95 dB	Wire Leads			Indicator Internally Driven	Medium Pulse	2 mA	20 mA	DC	IP68 - Dust Tight Waterproof	Top	Panel Mount	1.41 in
Floyd Bell Inc MB-09-530-S(S)D	5 VDC	30 V	2.9 kHz	Piezo	UL UR	35.8 mm	1.409 in	1.38 in	35.05 mm	95 dB	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	Indicator Internally Driven	Pulse Single Tone Slow	2 mA	20 mA	DC	IP68 - Dust Tight Waterproof	Top	Panel Mount
Floyd Bell Inc MB-09-530-S(F)D	5 VDC	30 V	2.9 kHz	Piezo	UL UR		35.81 mm	1.38 in	35.05 mm	95 dB	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm	Indicator Internally Driven	Fast Pulse Single Tone	2 mA	20 mA	DC	IP68 - Dust Tight Waterproof	Top	Panel Mount	1.41 in
