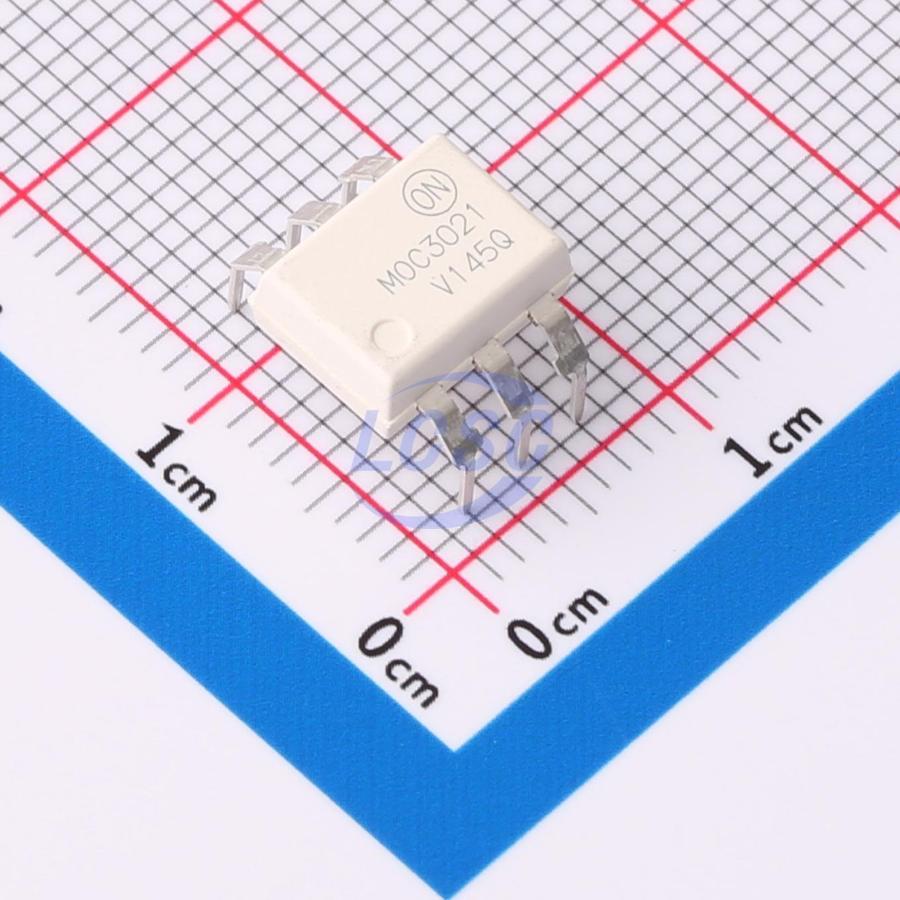

MOC3020M Series

Triac Driver Output Optocoupler, 6-Pin DIP 400V Random Phase

Catalog

Triac Driver Output Optocoupler, 6-Pin DIP 400V Random Phase

Part	Current - LED Trigger (Ift) (Max) [Max]	Voltage - Isolation	Voltage - Off State	Output Type	Mounting Type	Number of Channels	Current - Hold (Ih)	Current - DC Forward (If) (Max) [Max]	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Approval Agency	Package / Case	Package / Case	Current - DC Forward (If) (Max)	Package / Case
ON Semiconductor MOC3020FM	30 mA	7500 Vpk	400 V	Triac	Surface Mount	1	100 µA	60 mA	6-SMD	6-SMD Gull Wing
ON Semiconductor MOC3023FVM	5 mA	7500 Vpk	400 V	Triac	Surface Mount	1	100 µA	60 mA	6-SMD	6-SMD Gull Wing
ON Semiconductor MOC3022FVM	10 mA	7500 Vpk	400 V	Triac	Surface Mount	1	100 µA	60 mA	6-SMD	6-SMD Gull Wing
ON Semiconductor MOC3022SR2VM	10 mA	4170 Vrms	400 V	Triac	Surface Mount	1	100 µA	60 mA	6-SMD	6-SMD Gull Wing	85 °C	-40 °C	1.15 V	IEC/EN/DIN UL
ON Semiconductor MOC3022	10 mA	5300 Vrms	400 V	Triac	Through Hole	1	100 µA		6-DIP	6-DIP					0.3 in	7.62 mm	50 mA
ON Semiconductor MOC3020VM	30 mA	4170 Vrms	400 V	Triac	Through Hole	1	100 µA	60 mA	6-DIP	6-DIP	85 °C	-40 °C	1.15 V	IEC/EN/DIN UL	0.3 in	7.62 mm
ON Semiconductor MOC3020SR2M	30 mA	4170 Vrms	400 V	Triac	Surface Mount	1	100 µA	60 mA	6-SMD	6-SMD Gull Wing	85 °C	-40 °C	1.15 V	UL
ON Semiconductor MOC3021FVM	15 mA	7500 Vpk	400 V	Triac	Surface Mount	1	100 µA	60 mA	6-SMD	6-SMD Gull Wing
ON Semiconductor MOC3021TVM	15 mA	4170 Vrms	400 V	Triac	Through Hole	1	100 µA	60 mA	6-DIP	6-DIP	85 °C	-40 °C	1.15 V	IEC/EN/DIN UL		10.16 mm		10.16 mm
ON Semiconductor MOC3021TM	15 mA	4170 Vrms	400 V	Triac	Through Hole	1	100 µA	60 mA	6-DIP	6-DIP	85 °C	-40 °C	1.15 V	UL		10.16 mm		10.16 mm

Catalog

Triac Driver Output Optocoupler, 6-Pin DIP 400V Random Phase

Key Features

• Excellent IFTStability - IR Emitting Diode Has Low Degradation• Peak Blocking Voltage

• 250 V - MOC301XM

• 400 V - MOC302XM• Safety and Regulatory Approvals

• UL1577, 4,170 VACRMSfor 1 Minute

• DIN EN/IEC60747-5-5)

Description

The MOC301XM and MOC302XM series are optically isolated triac driver devices. These devices contain a GaAs infrared emitting diode and a light activated silicon bilateral switch, which functions like a triac. They are designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115 VACoperations.
