AMP Type IV Series

Catalog

TYPE VI SOCKET,MULTI-MATE ROHS COMPLIANT: NO

Part	Contact Finish	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish Thickness	Contact Finish Thickness	Type	Contact Termination	Pin or Socket

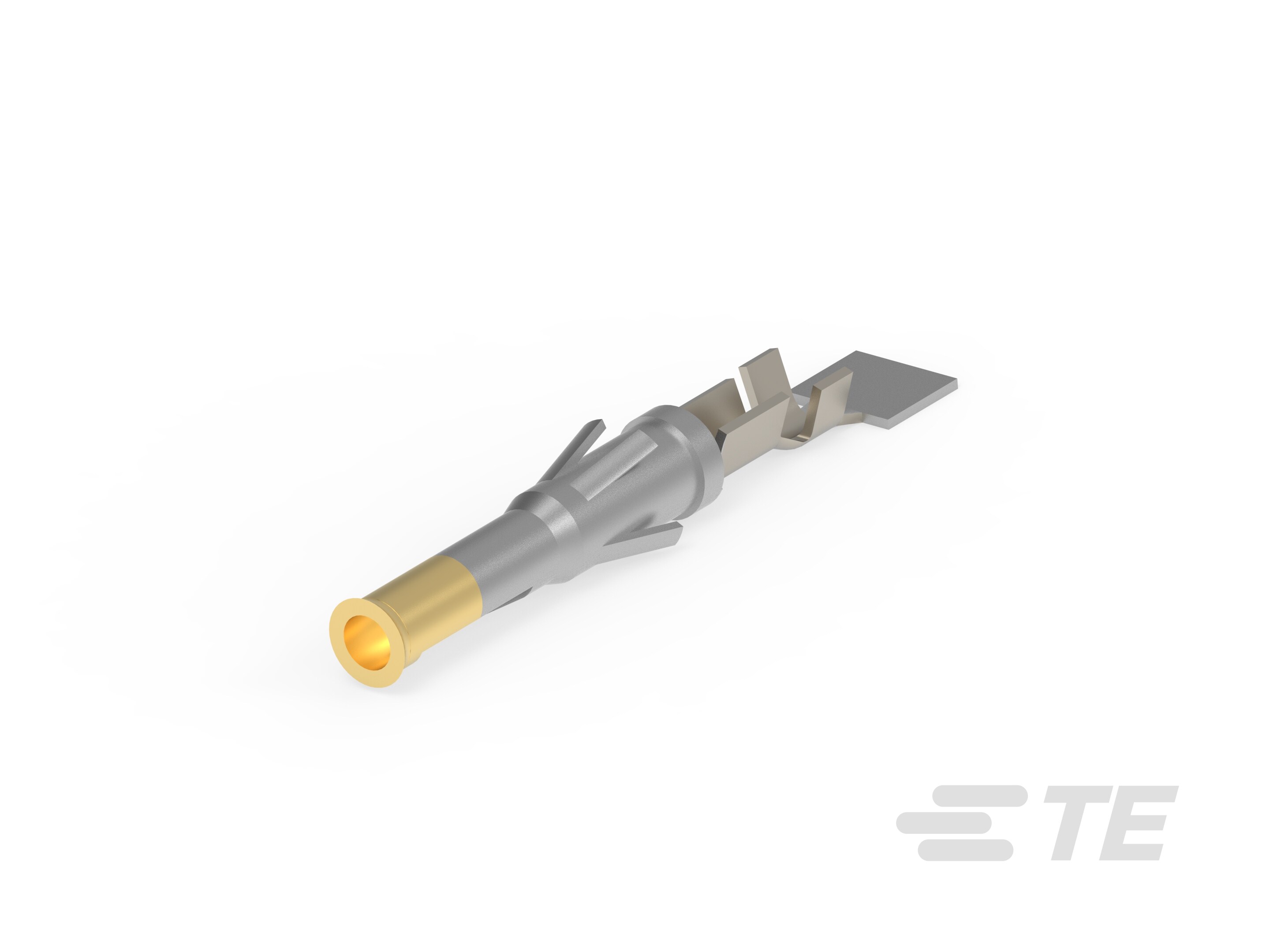

TE Connectivity AMP Connectors 66584-4	Gold	Brass	24 AWG	19.5 AWG	30 Áin	0.76 Ám	Stamped	Crimp	Socket
TE Connectivity AMP Connectors 66591-4	Gold	Brass	22 AWG	17.5 AWG	30 Áin	0.76 Ám	Stamped	Crimp	Pin
TE Connectivity AMP Connectors 66580-7	Gold	Brass	18 AWG	16 AWG	30 Áin	0.76 Ám	Stamped	Crimp	Socket
TE Connectivity AMP Connectors 66584-1	Tin	Brass	24 AWG	19.5 AWG			Stamped	Crimp	Socket

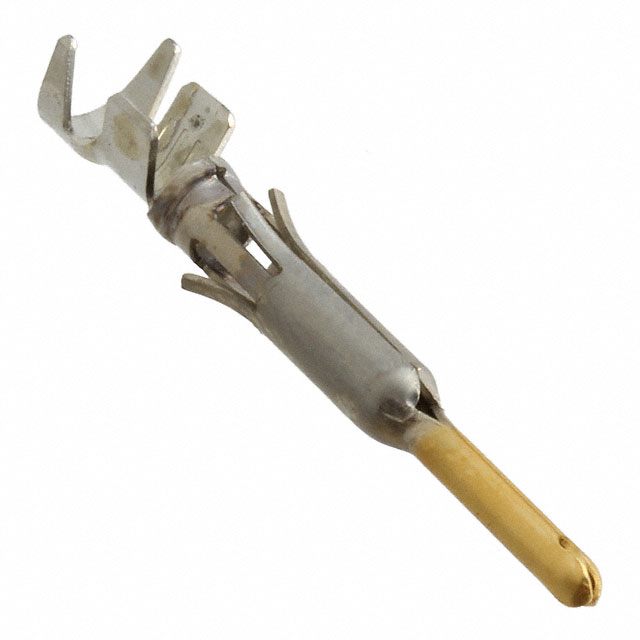

TE Connectivity AMP Connectors 66577-4	Gold	Brass	18 AWG	14 AWG	30 Áin	0.76 Ám	Stamped	Crimp	Pin
TE Connectivity AMP Connectors 66583-2	Tin	Brass	24 AWG	19.5 AWG			Stamped	Crimp	Pin
TE Connectivity AMP Connectors 66582-2	Tin	Brass	22 AWG	17.5 AWG			Stamped	Crimp	Socket
TE Connectivity AMP Connectors 66590-1	Tin	Brass	18 AWG	16 AWG			Stamped	Crimp	Socket

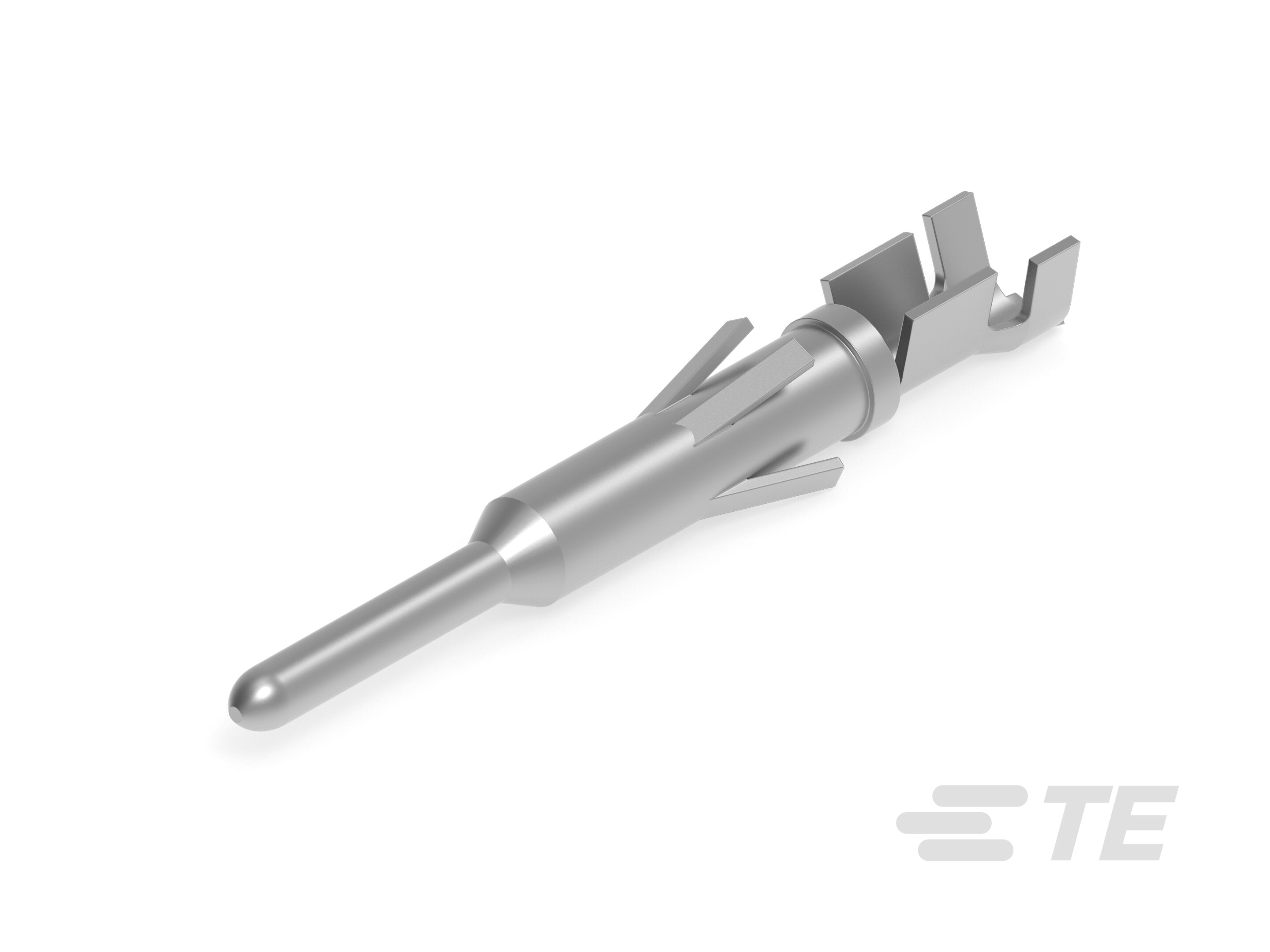

TE Connectivity AMP Connectors 66579-2	Tin	Brass	18 AWG	16 AWG			Stamped	Crimp	Pin
TE Connectivity AMP Connectors 1-66584-0	Gold PdNi +Gold	Brass	24 AWG	19.5 AWG	30 Áin	0.76 Ám	Stamped	Crimp	Socket
