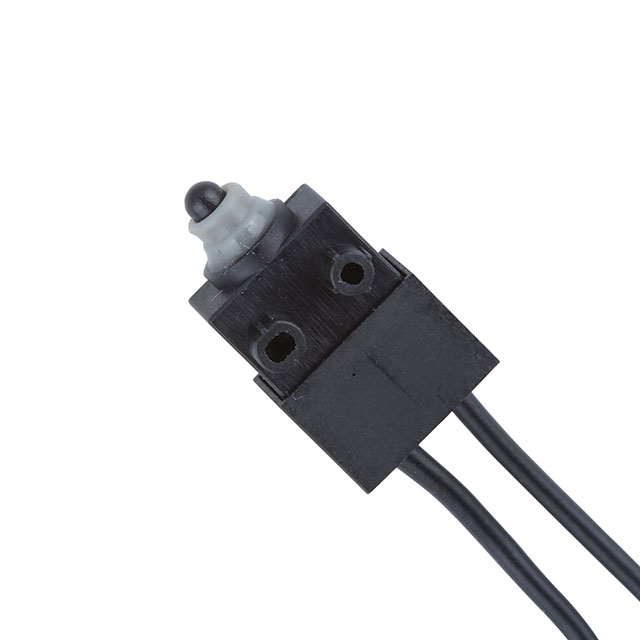

HD110 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACT SPST-NO 0.1A 12V
| Part | Ingress Protection | Switch Function | Circuit | Pretravel | Pretravel | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Electrical Life | Voltage Rating - DC | Current Rating (Amps) | Overtravel | Overtravel | Mechanical Life | Operating Force | Mounting Type | Operating Position [x] | Operating Position [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | IP67 - Dust Tight Waterproof | Off-Mom | SPST-NO | 0.04 in | 1 mm | Wire Leads | 85 °C | -20 C | Round (Pin Plunger) | 10000 Cycles | 12 V | 100 mA | 0.045 in | 1.1 mm | 300000 Cycles | 200 gf | Chassis Mount | 0.28 in | 7.1 mm |
