PX0740 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
CONN RCPT FMALE 6P NICKEL SCREW
| Part | Connector Type | Contact Finish - Mating | Backshell Material, Plating | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Orientation | Shielding | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Mounting Type | Termination | Number of Positions | Primary Material | Shell Material | Fastening Type | Contact Material | Insert Material [custom] | Insert Material [custom] | Color | Material Flammability Rating | Current Rating (Amps) | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

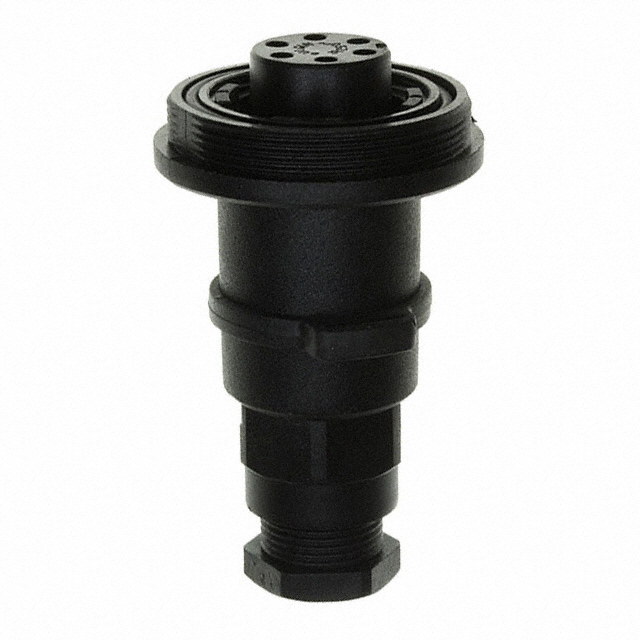

 BULGIN LIMITED | Receptacle Female Sockets | Nickel | Glass Filled Nylon Polyamide (PA) | 0.315 in | 0.236 in | 8 mm | 6 mm | Keyed | Unshielded | Backshell | -20 ░C | 70 °C | 277 VAC | Free Hanging (In-Line) | Screw | 6 | Plastic | Glass Filled Nylon Polyamide (PA) | Threaded | Brass | Nylon | Polyamide (PA) | Black | UL94 HB | 3 A | IP68 IP69K |

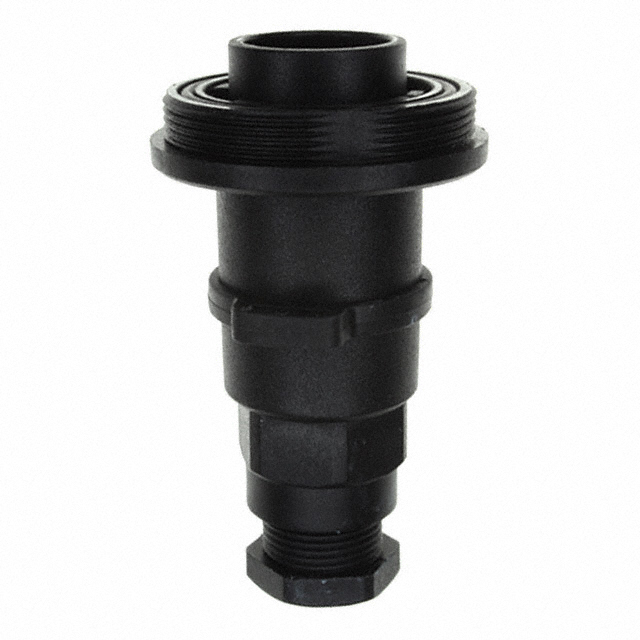

 BULGIN LIMITED | Receptacle Male Pins | Nickel | Glass Filled Nylon Polyamide (PA) | 0.315 in | 0.236 in | 8 mm | 6 mm | Keyed | Unshielded | Backshell | -20 ░C | 70 °C | 277 VAC | Free Hanging (In-Line) | Screw | 6 | Plastic | Glass Filled Nylon Polyamide (PA) | Threaded | Brass | Nylon | Polyamide (PA) | Black | UL94 HB | 3 A | IP68 IP69K |
