1EFH02 Series

Catalog

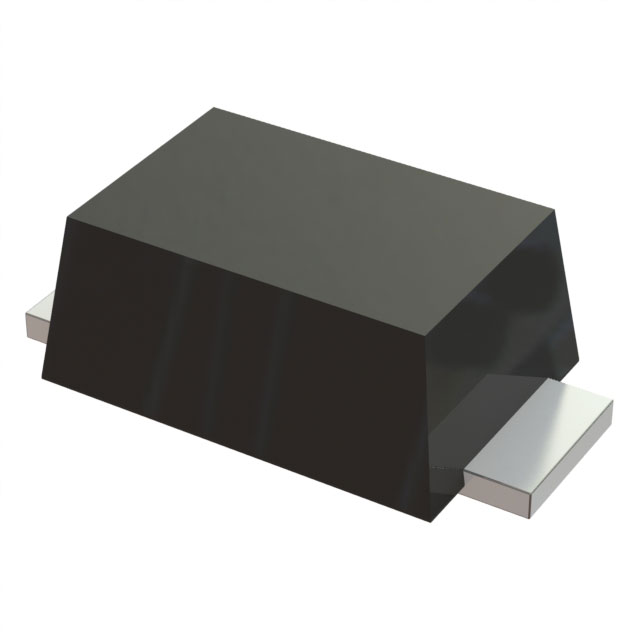

DIODE GEN PURP 200V 1A DO219AB

Part	Current - Average Rectified (Io)	Technology	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If [Max]	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Package / Case	Mounting Type	Grade	Qualification
Vishay General Semiconductor - Diodes Division VS-1EFH02W-M3-18	1 A	Standard	16 ns	930 mV	200 mA 500 ns	200 V	DO-219AB (SMF)	175 ░C	-65 C	2 µA	DO-219AB	Surface Mount
Vishay General Semiconductor - Diodes Division VS-1EFH02-M3/I	1 A	Standard	16 ns	930 mV	200 mA 500 ns	200 V	DO-219AB (SMF)	175 ░C	-65 C	2 µA	DO-219AB	Surface Mount
Vishay General Semiconductor - Diodes Division VS-1EFH02WHM3-18	1 A	Standard	16 ns	930 mV	200 mA 500 ns	200 V	DO-219AB (SMF)	175 ░C	-65 C	2 µA	DO-219AB	Surface Mount	Automotive	AEC-Q101
Vishay General Semiconductor - Diodes Division VS-1EFH02HM3/I	1 A	Standard	25 ns	930 mV	200 mA 500 ns	200 V	DO-219AB (SMF)	175 ░C	-55 °C	2 µA	DO-219AB	Surface Mount	Automotive	AEC-Q101
