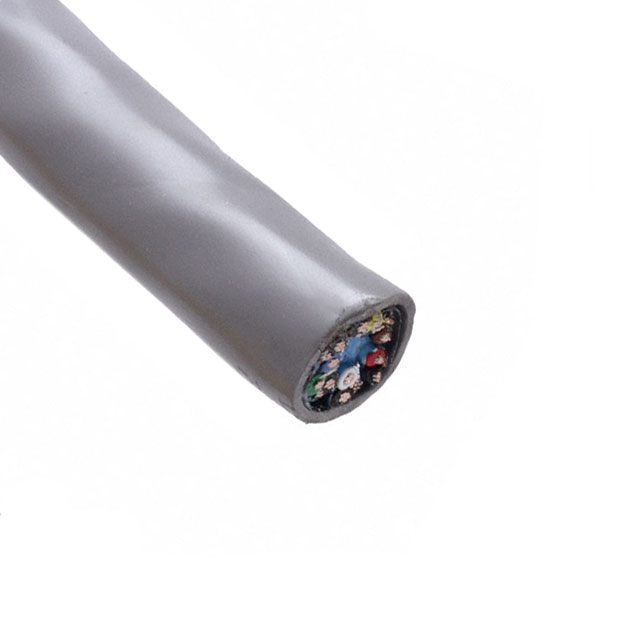

M13146 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 12COND 20AWG
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Ratings | Jacket Color | Voltage | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Shield Type | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 12 | 28 AWG | 7 | Polyethylene (PE) | UL Style 2919 | Slate | 300 VDC | Multi-Pair | 0.035 in | 0.889 mm | Drain Wire | 80 °C | -20 ░C | 20 AWG | 0.448 in | 11.38 mm | 304.8 m | 1000 ft | Foil | Copper Tinned |
