M2112LC Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Illumination Voltage (Nominal)	Actuator Type	Voltage Rating - AC	Bushing Thread	Current Rating (Amps)	Mounting Type	Switch Function	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Circuit	Features	Termination Style	Illumination Type, Color	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Illumination

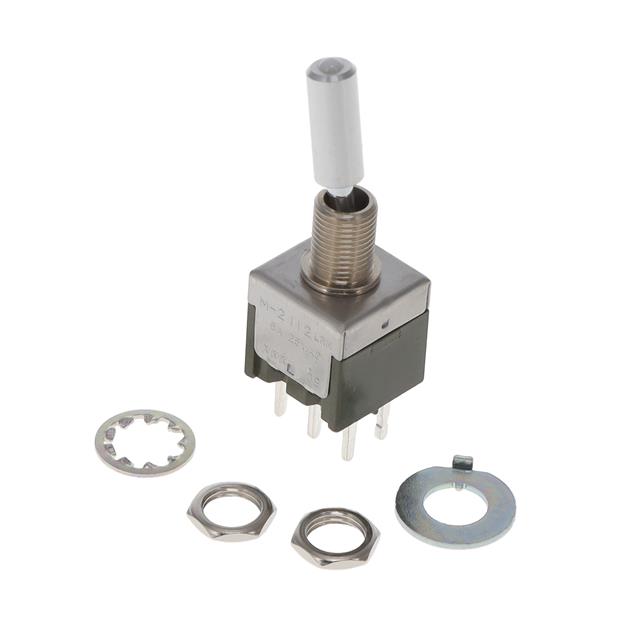

NKK Switches M2112LCFW03	25000 Steps	1.7 VDC 2 VDC	Standard Round	125 V	1/4-40	3 A 6 A	Panel Mount	On-On	14.7 mm	6.5 mm	SPDT	Epoxy Sealed Terminals	PC Pin	Green/Red LED	30 V	55 °C	-10 °C	Illuminated

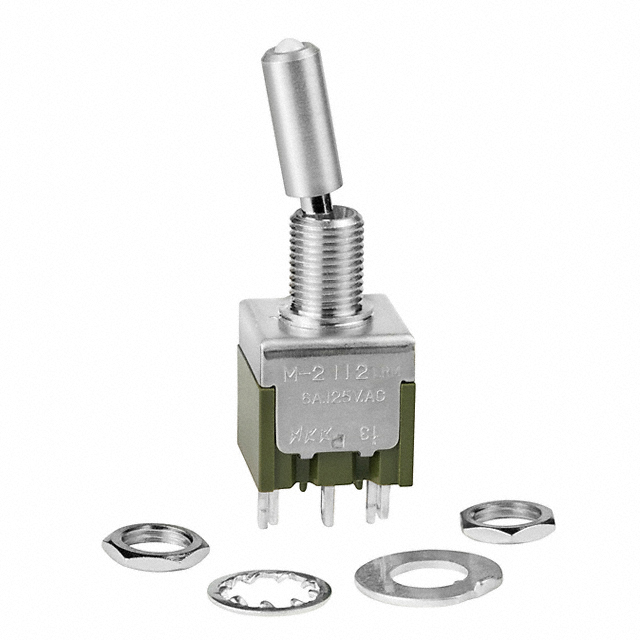

NKK Switches M2112LCFW01	25000 Steps	1.7 VDC 2 VDC	Standard Round	125 V	1/4-40	3 A 6 A	Panel Mount	On-On	14.7 mm	6.5 mm	SPDT	Epoxy Sealed Terminals	Solder Lug	Green/Red LED	30 V	55 °C	-10 °C	Illuminated
NKK Switches M2112LCW03	25000 Steps	2.2 VDC	Standard Round	125 V	1/4-40	3 A 6 A	Through Hole	On-On	14.7 mm	6.5 mm	SPDT	Epoxy Sealed Terminals	PC Pin	LED Red	30 V	55 °C	-10 °C	Illuminated
NKK Switches M2112LCFG03	25000 Steps	1.7 VDC 2 VDC	Standard Round	28 V	1/4-40	0.4 VA	Panel Mount	On-On	14.7 mm	6.5 mm	SPDT	Epoxy Sealed Terminals	PC Pin	Green/Red LED	28 V	55 °C	-10 °C	Illuminated
