0624-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

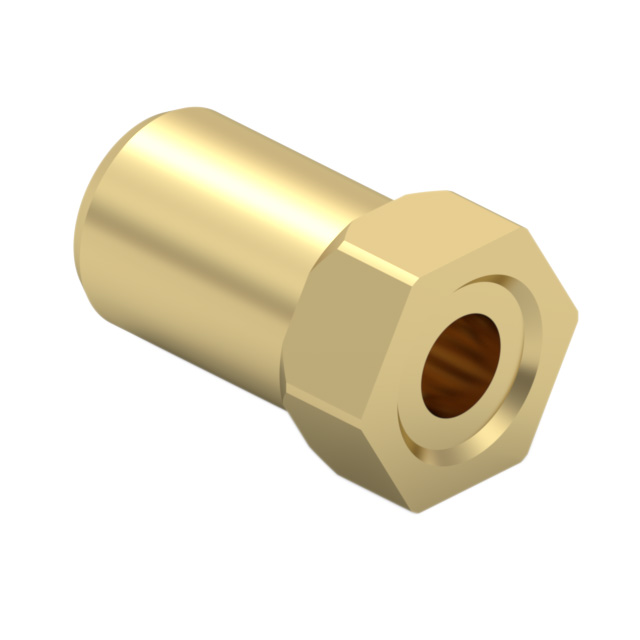

ZERO PROFILE RECEPTACLE FOR LEAD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Length - Overall | Length - Overall | Contact Material | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Termination | Tail Type | Socket Depth | Socket Depth | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.048 in | 1.22 mm | Gold | 1.8 mm | 0.071 in | Beryllium Copper | 0.028 in | 0.71 mm | 0.017 " | 0.012 " | 0.3 mm | 0.43 mm | Press-Fit | No Tail | 1.57 mm | 0.062 in | 0.049 in | 1.24 mm | 30 Áin | 0.76 Ám |
