SRP6050 Series
Manufacturer: Bourns Inc.
Beta
⌘K

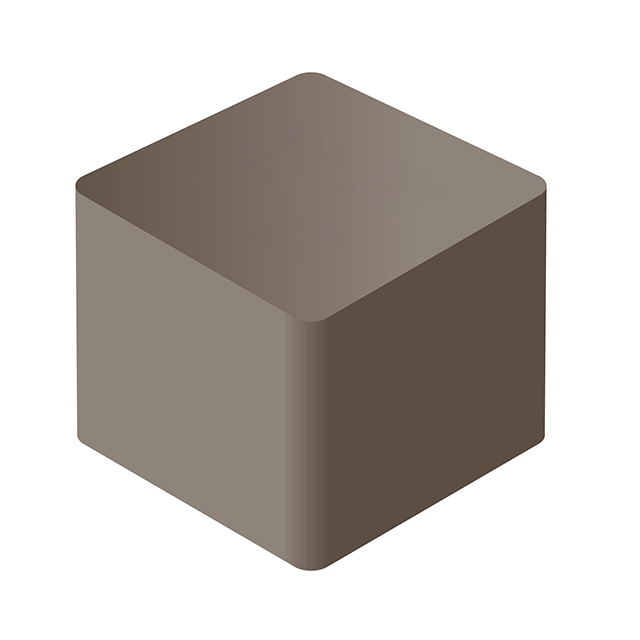

POWER INDUCTOR (SMD), 2.2 ΜH, 13 A, SHIELDED, 16 A, SRP6050CA SERIES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance | Ratings | Type | Inductance Frequency - Test | Shielding | Current Rating (Amps) | Current - Saturation (Isat) | Package / Case | DC Resistance (DCR) [Max] | Mounting Type | Frequency - Self Resonant | Material - Core | Tolerance | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 155 C | -55 C | 6.4 mm | 6.6 mm | 0.26 in | 0.252 in | 0.197 in | 5 mm | 2.2 µH | AEC-Q200 | Drum Core Wirewound | 100 kHz | Shielded | 13 A | 16 A | Nonstandard | 8.5 mOhm | Surface Mount | 30 MHz | Iron Powder | 20 % | |
Bourns Inc. | 155 C | -55 C | 6.4 mm | 6.6 mm | 0.26 in | 0.252 in | 0.197 in | 5 mm | 1 µH | AEC-Q200 | Drum Core Wirewound | 100 kHz | Shielded | 20 A | 23 A | Nonstandard | Surface Mount | 50 MHz | Iron Powder | 20 % | 4.52 mOhm |
