TPS7A6401 Series
Manufacturer: Texas Instruments
Beta
⌘K
AUTOMOTIVE 300-MA, OFF-BATTERY (40-V), LOW-IQ, ADJUSTABLE LOW-DROPOUT VOLTAGE REGULATOR WITH WD
| Part | Supplier Device Package | Package / Case | Voltage - Output (Min/Fixed) | Grade | Voltage - Output (Max) [Max] | PSRR [Min] | PSRR [Max] | Number of Regulators | Current - Output | Protection Features | Operating Temperature [Min] | Operating Temperature [Max] | Current - Quiescent (Iq) | Qualification | Output Type | Voltage Dropout (Max) | Control Features | Output Configuration | Mounting Type | Supplied Contents | Board Type | Contents | Channels per IC | Regulator Type | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output [Min] | Voltage - Output [Max] | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 14-HTSSOP | 14-PowerTSSOP (0.173" 4.40mm Width) | 2.5 V | Automotive | 7 V | 30 dB | 60 dB | 1 | 0.2 A | Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO) Watchdog | -40 C | 150 °C | 35 µA | AEC-Q100 | Adjustable | 0.5 V | Enable Reset | Positive | Surface Mount | ||||||||||

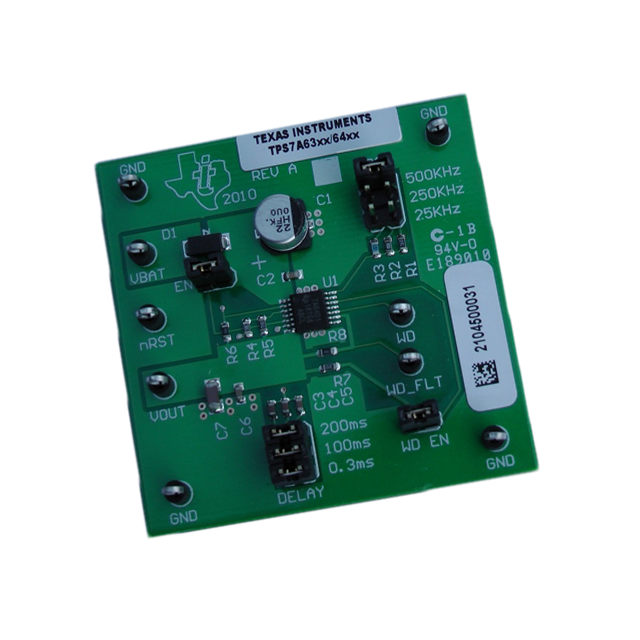

 Texas Instruments | 0.2 A | Board(s) | Fully Populated | Board(s) | 1 | Positive Adjustable | 40 V | 4 V | 2.5 V | 7 V | TPS7A6401 |
