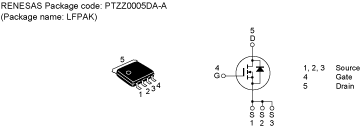

RJK0456DPB Series

Nch Power MOSFET 40V 50A 3.2mohm LFPAK56

Catalog

Nch Power MOSFET 40V 50A 3.2mohm LFPAK56

Part	Power Dissipation (Max)	Package / Case	FET Type	Drain to Source Voltage (Vdss)	Supplier Device Package	Mounting Type	Operating Temperature	Drive Voltage (Max Rds On, Min Rds On)	Technology	Input Capacitance (Ciss) (Max) @ Vds [Max]	Rds On (Max) @ Id, Vgs	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs [Max]
Renesas Electronics Corporation RJK0456DPB-00#J5	65 W	SC-100 SOT-669	N-Channel	40 V	LFPAK	Surface Mount	150 °C	10 V	MOSFET (Metal Oxide)	3000 pF	3.2 mOhm	20 V	50 A	39 nC

Nch Power MOSFET 40V 50A 3.2mohm LFPAK56

MOSFETs suitable for switching (motor drive, etc.) and load switch applications. Low on-resistance, high-speed switching, and high-robustness.
