S22DL Series

Catalog

S22 DAYLIGHT VISIBLE EZ-LIGHT HIGH INTENSITY 22 MM 1-COLOR

Part	Voltage [Min]	Voltage [Max]	Millicandela Rating	Type	Termination Style	Panel Cutout Shape	Current	Ingress Protection	Lens Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Ratings	Lens Transparency	Millicandela Rating [custom]	Millicandela Rating [custom]

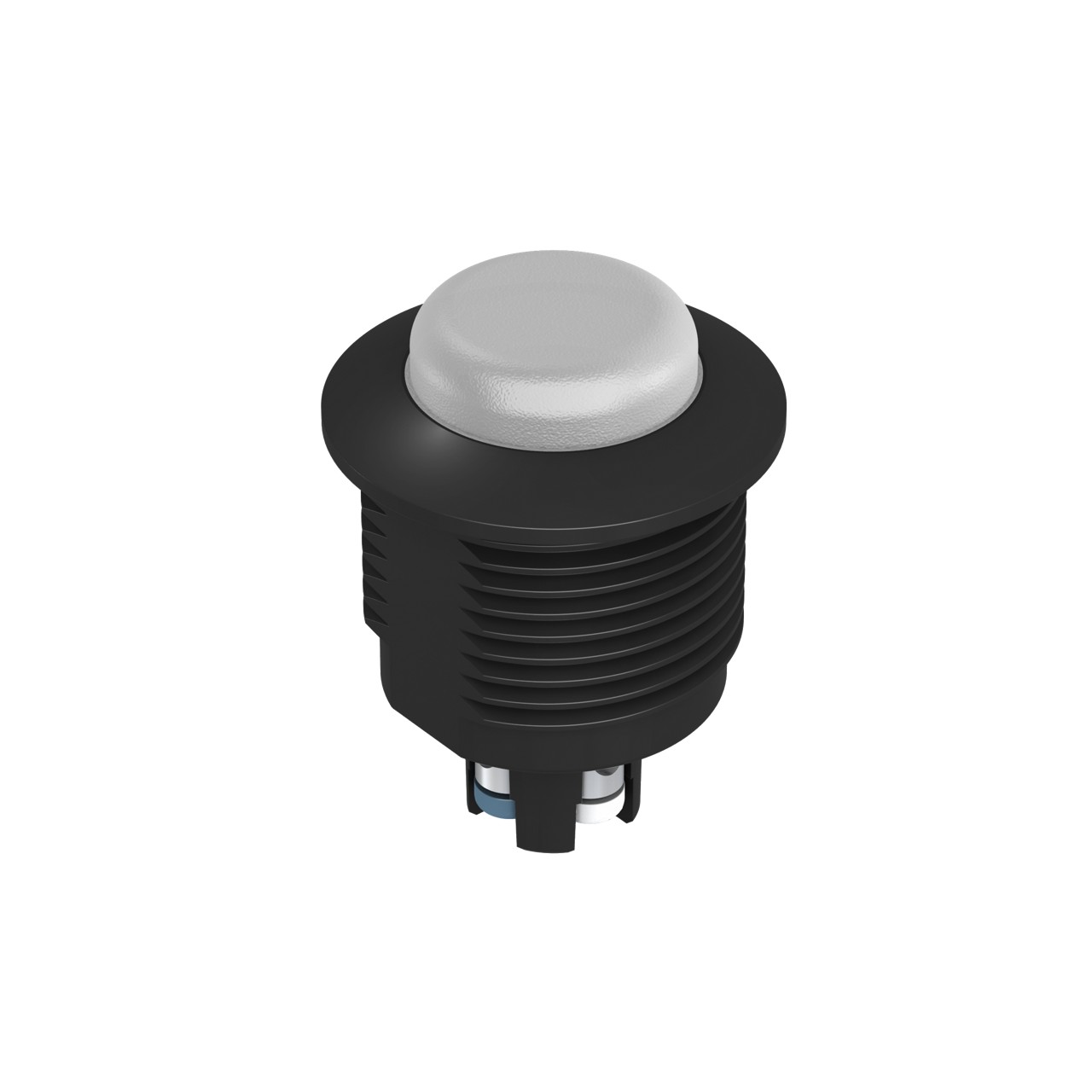

BANNER ENGINEERING S22DLHGT	9 V	30 V	20 mcd	LED	Screw Terminal	Round	60 mA	IP67 IP69K NEMA 4X	Round with Flat Top	22 mm	0.87 in	Green	DC
BANNER ENGINEERING S22DLHBQ	9 V	30 V	6.5 mcd	LED	Quick Connect	Round	60 mA	IP67 IP69K NEMA 4X	Round with Flat Top	22 mm	0.87 in	Blue	DC

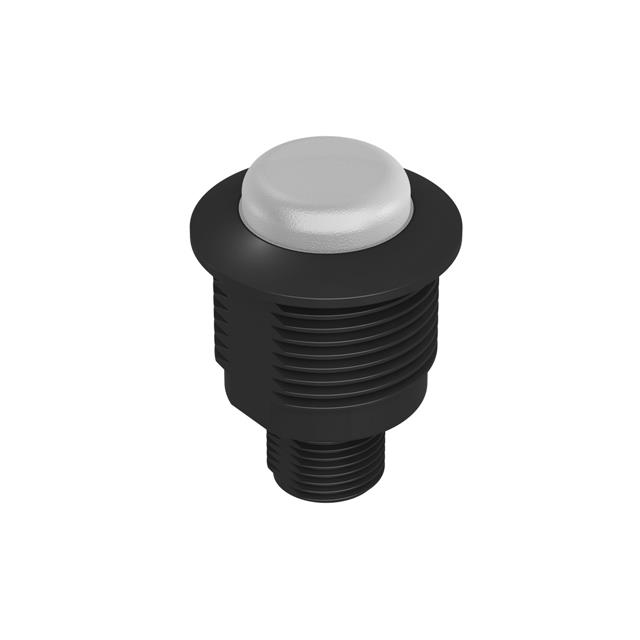

BANNER ENGINEERING S22DLGRYPT	10 V	30 V	1.2 mcd 1.4 mcd 2.3 mcd	LED	Screw Terminal	Round	25 mA	IP67 IP69K NEMA 4X	Round with Flat Top	22 mm	0.87 in	Green Red Yellow	DC	Clear
BANNER ENGINEERING S22DLWXXPQ	10 V	30 V	4 mcd	LED	Quick Connect	Round	25 mA	IP67 IP69K NEMA 4X	Round with Flat Top	22 mm	0.87 in	White	DC	Clear
BANNER ENGINEERING S22DLGRXPT	10 V	30 V		LED	Screw Terminal	Round	25 mA	IP67 IP69K NEMA 4X	Round with Flat Top	22 mm	0.866 in	Green Red	DC	Diffused	1.4 mcd	2.3 mcd
