34487 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

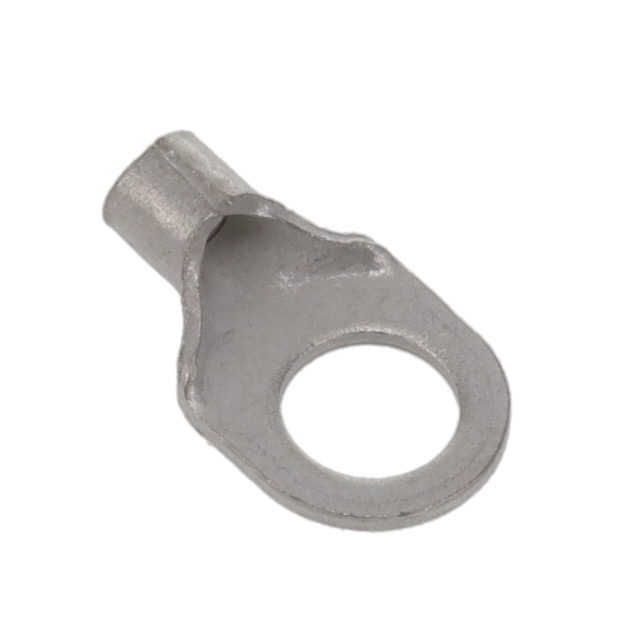

CONN RING CIRC 12-14AWG #1/4
| Part | Width - Outer Edges [x] | Width - Outer Edges [x] | Thickness | Thickness | Mounting Type | Length - Overall [x] | Length - Overall [x] | Termination | Insulation | Stud/Tab Size | Contact Material | Features | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.421 in | 10.69 mm | 0.97 mm | 0.038 " | Free Hanging (In-Line) | 18.77 mm | 0.739 in | Crimp | Non-Insulated | 0.25 Stud | Copper | Brazed Seam Serrated Termination | 12 AWG | 14 AWG | Circular | Tin |
