29662 Series

Catalog

ELECTROMECHANICAL RELAY 24VDC 2.67KOHM 6A SPDT(6.2X94X80)MM DIN RAIL RELAY MODULE

Part	Coil Resistance	Release Time	Mounting Type	Termination Style	Switching Voltage [Max]	Relay Type	Contact Material	Operate Time	Features	Coil Voltage	Coil Current	Coil Type	Contact Rating (Current)	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Coil Voltage	Coil Voltage	Switching Voltage

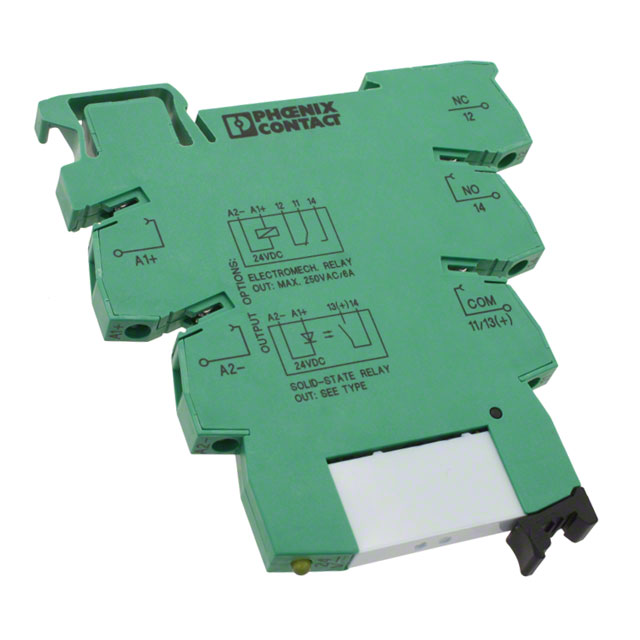

Phoenix Contact 2966265	2.67 kOhms	8 ms	DIN Rail	Screw Terminal	30 VAC 36 VDC	General Purpose	Gold (Au) Silver (Ag)	5 ms	Lighted Indicator Socket Included	24 VDC	9 mA	Non Latching	50 mA	SPDT (1 Form C)	-25 °C	60 °C	cULus DNV EAC UL

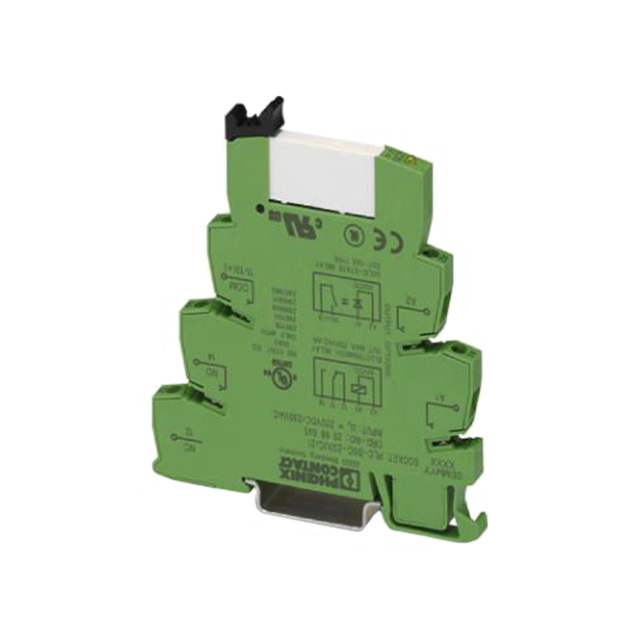

Phoenix Contact 2966294	71.88 kOhms	15 ms	DIN Rail	Screw Terminal	30 VAC 36 VDC	General Purpose	Gold (Au) Silver (Ag)	7 ms	Lighted Indicator Socket Included		3.2 mA	Non Latching	50 mA	SPDT (1 Form C)	-25 °C	55 °C	cULus DNV EAC UL	230 VDC	230 VAC

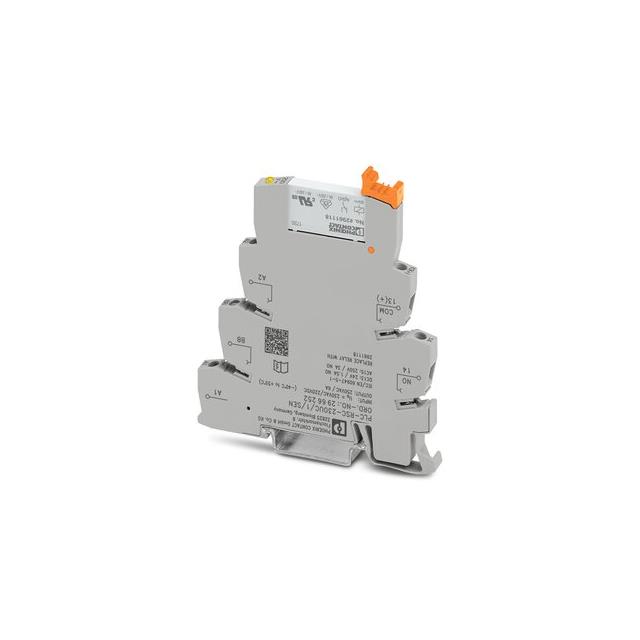

Phoenix Contact 2966252			DIN Rail	Screw Terminal		General Purpose			Socket Included			Non Latching		SPST-NO (1 Form A)			CE UKCA	230 VDC	230 VAC

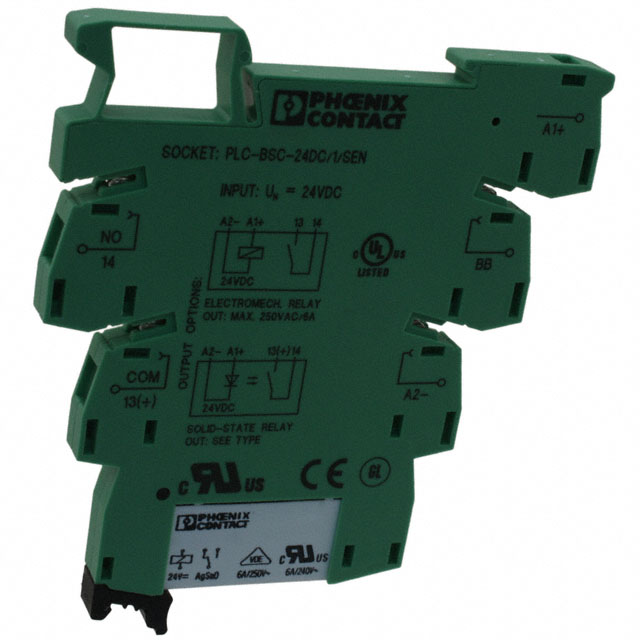

Phoenix Contact 2966223	2.667 kOhms	8 ms	DIN Rail	Screw Terminal		General Purpose	Silver Tin Oxide (AgSnO)	5 ms	Lighted Indicator Socket Included	24 VDC	9 mA	Non Latching	6 A	SPST-NO (1 Form A)	-25 °C	60 °C	CE UKCA			250 VAC 250 VDC

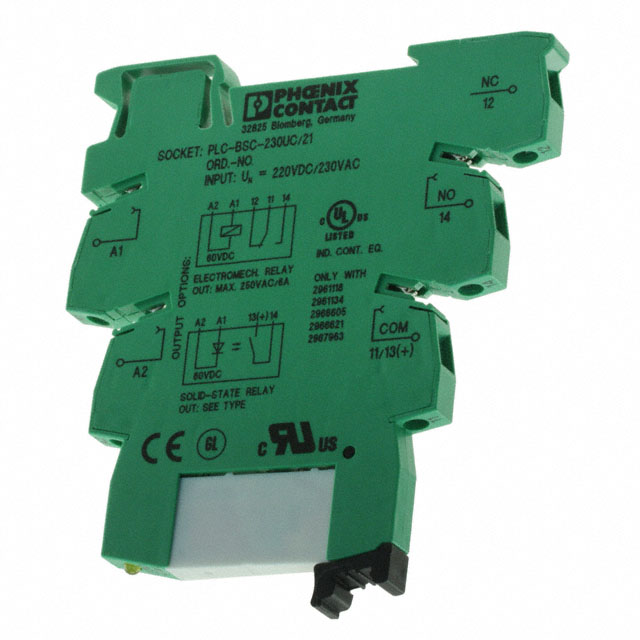

Phoenix Contact 2966207	71.875 kOhms	15 ms	DIN Rail	Screw Terminal		General Purpose	Silver Tin Oxide (AgSnO)	7 ms	Lighted Indicator Socket Included		3.2 mA	Non Latching	6 A	SPDT (1 Form C)	-25 °C	55 °C	CE UKCA	230 VDC	230 VAC	250 VAC 250 VDC
Phoenix Contact 2966210	2.667 kOhms	8 ms	DIN Rail	Screw Terminal		General Purpose	Silver Tin Oxide (AgSnO)	5 ms	Lighted Indicator Socket Included	24 VDC	9 mA	Non Latching	6 A	SPST-NO (1 Form A)	-25 °C	60 °C	CE UKCA			250 VAC 250 VDC
