ECQ-E2104 Series

Manufacturer: Panasonic Electronic Components

Catalog

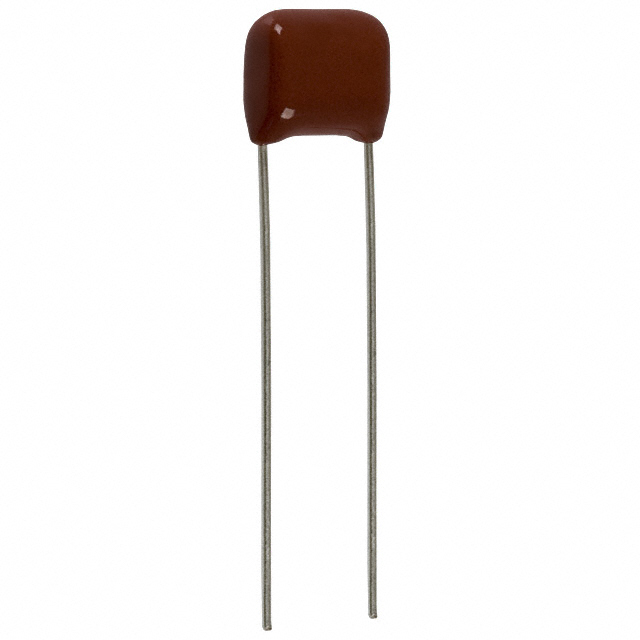

ECQE(F), MET POLYESTER FILM CAP RADIAL L ROHS COMPLIANT: YES

Part	Voltage Rating - DC	Tolerance	Applications	Height - Seated (Max)	Height - Seated (Max) [Max]	Capacitance	Mounting Type	Dielectric Material	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Termination	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-E2104KF3	250 V	10 %	General Purpose	13.4 mm	0.528 "	100000 pF	Through Hole	Polyester Metallized	0.197 "	5 mm	-40 C	105 ░C	10.3 mm	0.406 in	5.8 mm	0.228 in	PC Pins	Radial
Panasonic Electronic Components ECQ-E2104KS	250 V	10 %	General Purpose			100000 pF	Through Hole	Polyester Metallized	0.394 in	10 mm	-40 C	85 °C	12.5 mm	0.492 "	5 mm	0.197 "	PC Pins	Radial	11.5 mm	0.453 in
Panasonic Electronic Components ECQ-E2104KFA	250 V	10 %	General Purpose			100000 pF	Through Hole	Polyester Metallized			-40 C	105 ░C					PC Pins	Radial
Panasonic Electronic Components ECQ-E2104JFW	250 V	5 %	General Purpose	13.4 mm	0.528 "	100000 pF	Through Hole	Polyester Metallized	0.295 in	7.5 mm	-40 C	105 ░C	10.3 mm	0.406 in	5.8 mm	0.228 in	PC Pins	Radial
Panasonic Electronic Components ECQ-E2104KF	250 V	10 %	General Purpose		0.37 in	100000 pF	Through Hole	Polyester Metallized	0.295 in	7.5 mm	-40 C	105 ░C	10.3 mm	0.406 in	5.8 mm	0.228 in	PC Pins	Radial		9.4 mm
Panasonic Electronic Components ECQ-E2104KF9	250 V	10 %	General Purpose	13.4 mm	0.528 "	100000 pF	Through Hole	Polyester Metallized	0.197 "	5 mm	-40 C	105 ░C	10.3 mm	0.406 in	5.8 mm	0.228 in	PC Pins	Radial

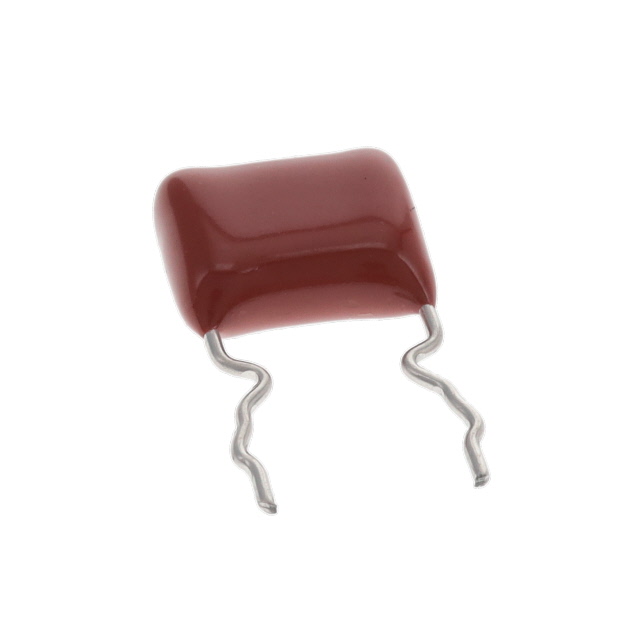

Panasonic Electronic Components ECQ-E2104KFW	250 V	10 %	General Purpose	13.4 mm	0.528 "	100000 pF	Through Hole	Polyester Metallized	0.295 in	7.5 mm	-40 C	105 ░C	10.3 mm	0.406 in	5.8 mm	0.228 in	PC Pins	Radial
Panasonic Electronic Components ECQ-E2104RKF	250 V	10 %	General Purpose	13.4 mm	0.528 "	100000 pF	Through Hole	Polyester Metallized	0.295 in	7.5 mm	-40 C	105 ░C	10.3 mm	0.406 in	5.8 mm	0.228 in	PC Pins	Radial
Panasonic Electronic Components ECQ-E2104KFB	250 V	10 %	General Purpose	13.5 mm	0.532 "	100000 pF	Through Hole	Polyester Metallized	0.295 in	7.5 mm	-40 C	105 ░C	10.3 mm	0.406 in	5.8 mm	0.228 in	PC Pins	Radial

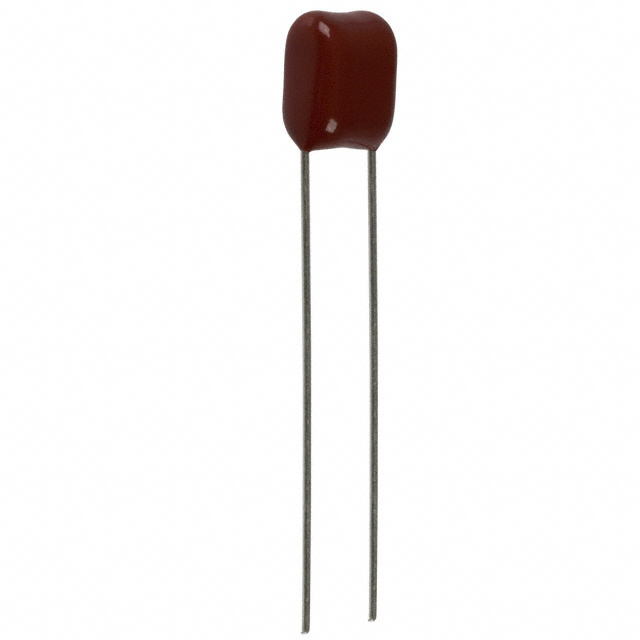

Panasonic Electronic Components ECQ-E2104KB	250 V	10 %	General Purpose		0.394 in	100000 pF	Through Hole	Polyester Metallized	0.197 "	5 mm	-40 C	105 ░C	7.9 mm	0.311 in	5.9 mm	0.232 in	PC Pins	Radial		10 mm
