09100083 Series

Manufacturer: HARTING

Catalog

CRIMP INSERT 8PIN FEMALE

Part	Color	Material Flammability Rating	Housing Material	Number of Positions	Current Rating (Amps)	Size	Voltage Rating	Termination Style	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type

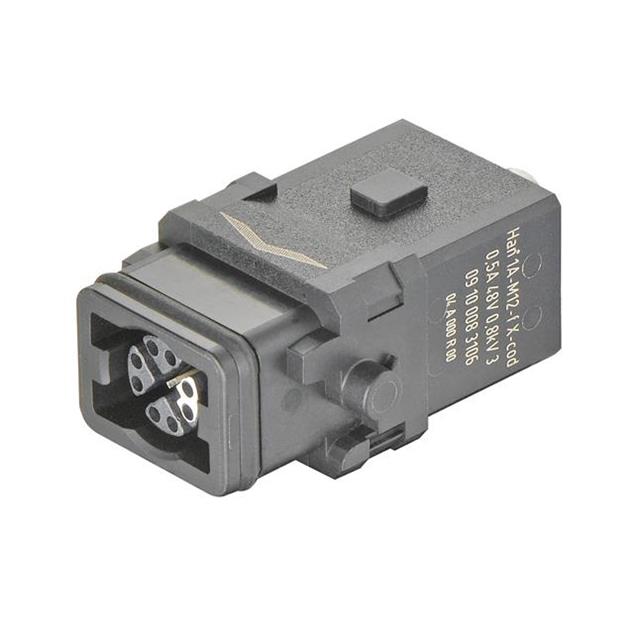

HARTING 09100083106	Black	UL94 V-0	Polyamide (PA) Nylon	8+Shield	0.5 A	1A	48 VDC	Crimp	Female	-30 ░C	90 °C	Insert without Contacts

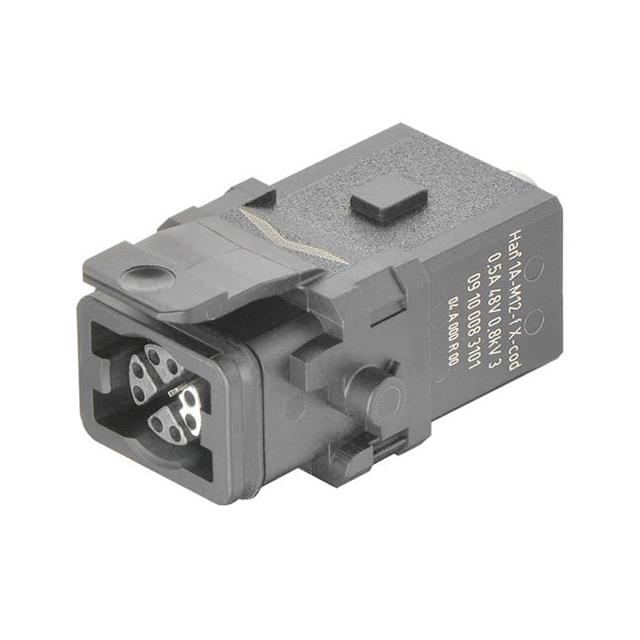

HARTING 09100083101	Black	UL94 V-0	Polyamide (PA) Nylon	8+Shield	0.5 A	1A	48 VDC	Crimp	Female	-30 ░C	90 °C	Insert without Contacts

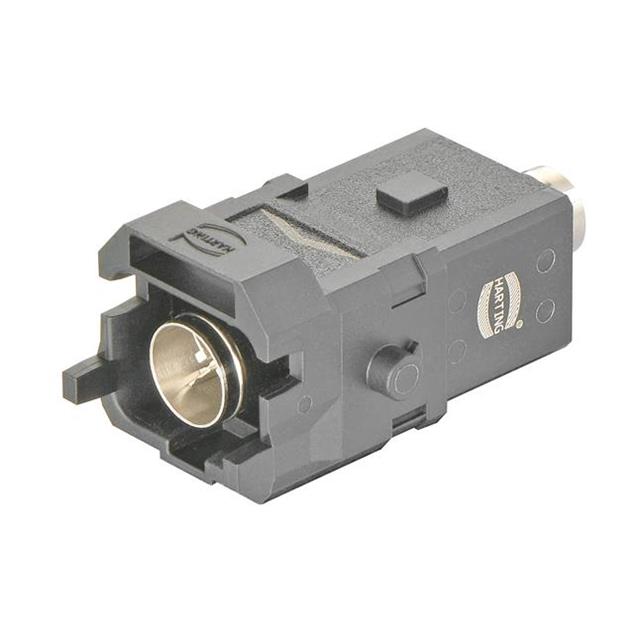

HARTING 09100083001	Black	UL94 V-0	Polyamide (PA) Nylon	8+Shield	0.5 A	1A	48 VDC	Crimp	Male	-30 ░C	90 °C	Insert without Contacts

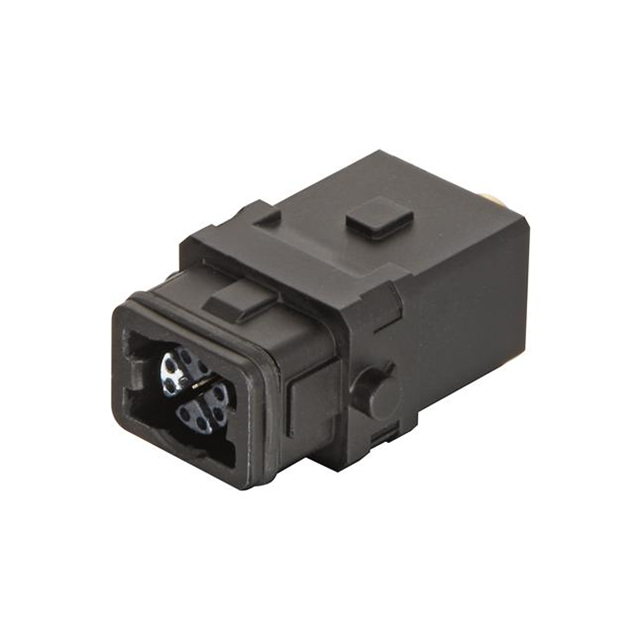

HARTING 09100083105

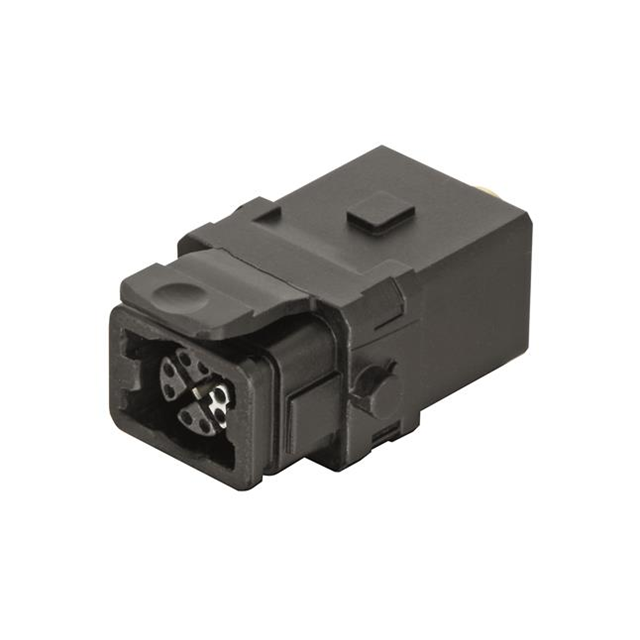

HARTING 09100083100

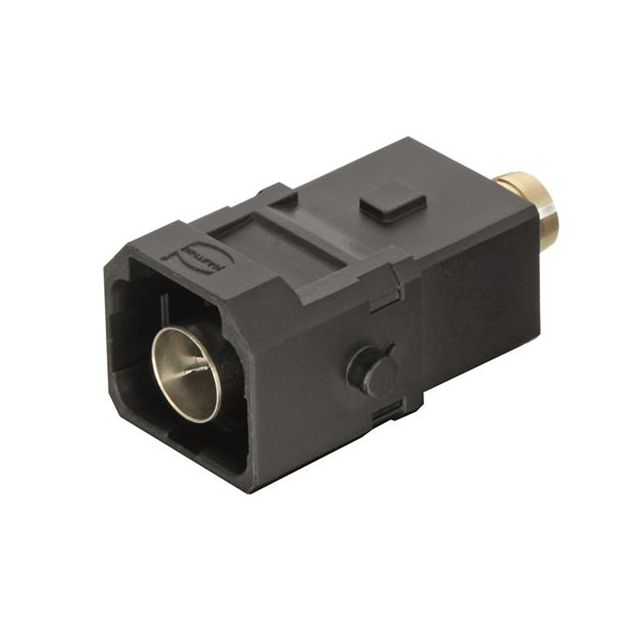

HARTING 09100083000

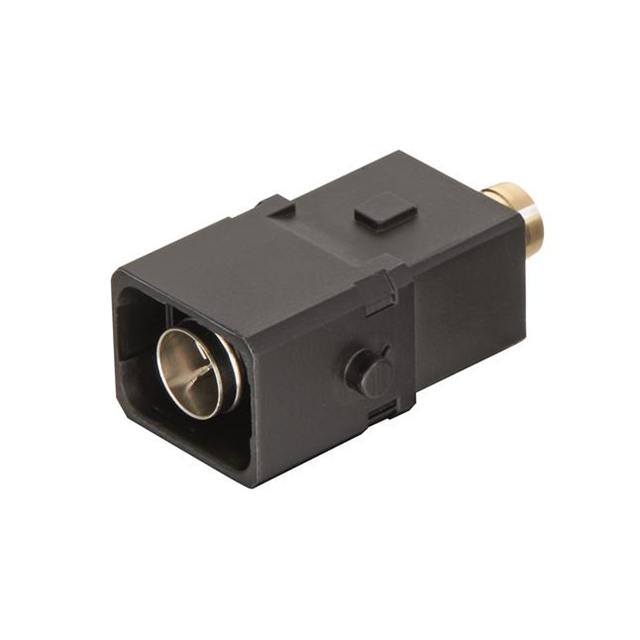

HARTING 09100083005

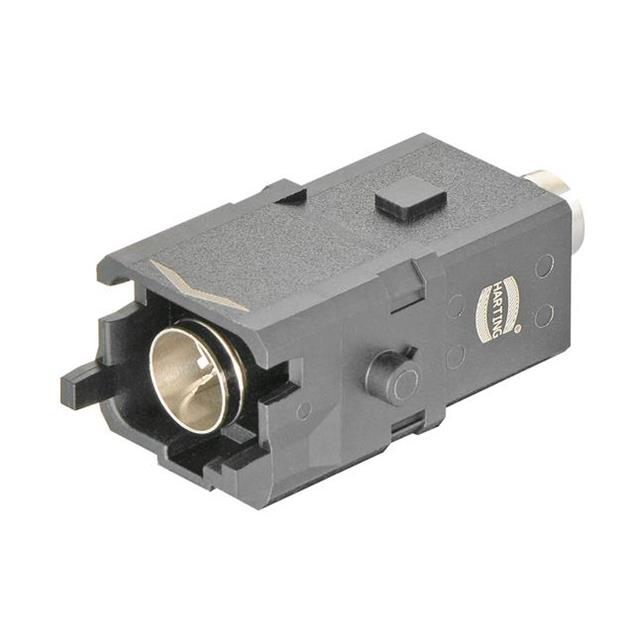

HARTING 09100083006	Black	UL94 V-0	Polyamide (PA) Nylon	8+Shield	0.5 A	1A	48 VDC	Crimp	Male	-30 ░C	90 °C	Insert without Contacts
