TPS7A53-Q1 Series

Automotive, 3-A, low-VIN (1.1 V) low-noise high-accuracy ultra-low-dropout (LDO) voltage regulator

Catalog

Automotive, 3-A, low-VIN (1.1 V) low-noise high-accuracy ultra-low-dropout (LDO) voltage regulator

Part	Utilized IC / Part	Current - Output	Board Type	Regulator Type	Channels per IC	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Control Features	PSRR [Max]	PSRR [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features	Qualification	Package / Case	Voltage - Input (Max) [Max]	Grade	Voltage - Output (Max) [Max]	Mounting Type	Voltage - Output (Min/Fixed)	Output Configuration	Number of Regulators	Voltage Dropout (Max) [Max]	Output Type	Supplier Device Package	Voltage - Output [Max]	Voltage - Output [Min]	Current - Quiescent (Iq)	Current - Supply (Max) [Max]	Supplier Device Package [x]	Supplier Device Package [y]
Texas Instruments TPS7A53EVM-080	TPS7A53A-Q1	3 A	Fully Populated	Positive Fixed	1 - Single	1 V	6 V	1.13 V	Board(s)
Texas Instruments TPS7A5301QRGRRQ1		3 A								Enable	42 dB	25 dB	150 °C	-40 °C	Over Temperature Reverse Polarity	AEC-Q100	20-VFQFN Exposed Pad	6.5 V	Automotive	5.15 V	Surface Mount	0.8 V	Positive	1	0.475 V	Adjustable
Texas Instruments TPS7A5301WQRTKRQ1		3 A								Enable	42 dB	25 dB	150 °C	-40 °C	Over Temperature Reverse Polarity	AEC-Q100	20-VFQFN Exposed Pad	6.5 V	Automotive	5.15 V	Surface Mount	0.8 V	Positive	1	0.515 V	Adjustable	20-QFN (4x4)

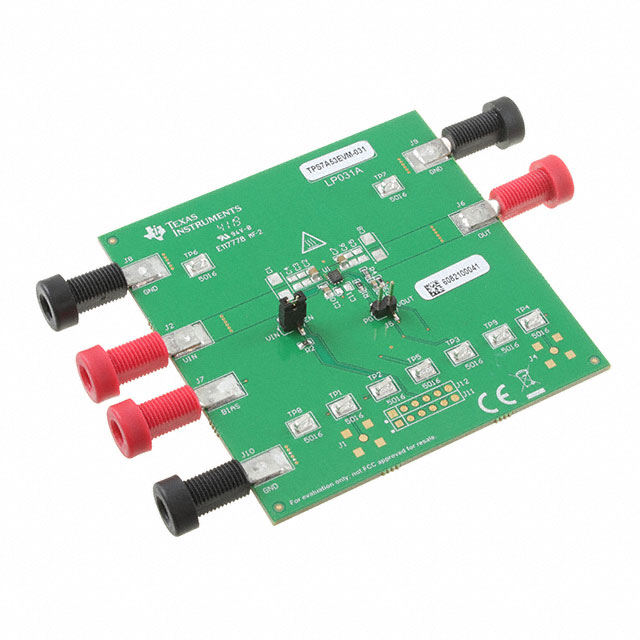

Texas Instruments TPS7A53EVM-031	TPS7A53-Q1	3 A	Fully Populated	Positive Adjustable	1 - Single		6.5 V	1.1 V	Board(s)																			5 V	0.8 V
Texas Instruments TPS7A5301RPST		4 A								Enable Power Good Soft Start	44 dB	35 dB	125 ¯C	-40 °C	Over Current Over Temperature Under Voltage Lockout (UVLO)		12-VFQFN	6.5 V		5.15 V	Surface Mount	0.8 V	Positive	1	0.375 V	Adjustable	12-VQFN-HR			4 mA	5.5 mA	2.2	2.5
Texas Instruments TPS7A53EVM-005	TPS7A53-Q1	3 A	Fully Populated	Positive Adjustable	1 - Single		6.5 V	1.1 V	Board(s)																			5 V	0.8 V

Catalog

Automotive, 3-A, low-VIN (1.1 V) low-noise high-accuracy ultra-low-dropout (LDO) voltage regulator

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified for Automotive ApplicationsTemperature Grade 1: –40°C ≤ TA≤ +125°CHBM ESD Classification Level 2CDM ESD Classification Level C4AExtended Junction Temperature (TJ) Range: –40°C to +150°CInput Voltage Range:Without BIAS: 1.4 V to 6.5 VWith BIAS: 1.1 V to 6.5 VAdjustable Output Voltage Range: 0.8 V to 5.15 VLow Dropout: 180 mV (max) at 3 A With BIASOutput Voltage Noise: 4.4 µVRMS1% (max) Accuracy Over Line, Load, and Temperature With BIASPower-Supply Ripple Rejection:40 dB at 500 kHzAdjustable Soft-Start Inrush ControlOpen-Drain Power-Good (PG) OutputPackages:3.5-mm × 3.5-mm, 20-Pin VQFN4-mm × 4-mm, 20-Pin VQFNP with Wettable Flanks and High CTE (12 ppm/ºC) Mold CompoundQualified for Automotive ApplicationsAEC-Q100 Qualified for Automotive ApplicationsTemperature Grade 1: –40°C ≤ TA≤ +125°CHBM ESD Classification Level 2CDM ESD Classification Level C4AExtended Junction Temperature (TJ) Range: –40°C to +150°CInput Voltage Range:Without BIAS: 1.4 V to 6.5 VWith BIAS: 1.1 V to 6.5 VAdjustable Output Voltage Range: 0.8 V to 5.15 VLow Dropout: 180 mV (max) at 3 A With BIASOutput Voltage Noise: 4.4 µVRMS1% (max) Accuracy Over Line, Load, and Temperature With BIASPower-Supply Ripple Rejection:40 dB at 500 kHzAdjustable Soft-Start Inrush ControlOpen-Drain Power-Good (PG) OutputPackages:3.5-mm × 3.5-mm, 20-Pin VQFN4-mm × 4-mm, 20-Pin VQFNP with Wettable Flanks and High CTE (12 ppm/ºC) Mold Compound

Description

The TPS7A53-Q1 device is a low-noise (4.4 µVRMS), low-dropout linear regulator (LDO) capable of sourcing 3 A with only 180 mV of maximum dropout. The device output voltage is adjustable from 0.8 V to 5.15 V using an external resistor divider. The combination of low-noise (4.4 µVRMS), high-PSRR, and high output current capability makes the TPS7A53-Q1 an excellent choice to power noise-sensitive components, such as those found in radar power and infotainment applications. The high performance of this device limits power-supply-generated phase noise and clock jitter, making this device an excellent choice for powering RF amplifiers, radar sensors, and chipsets. Specifically, RF amplifiers benefit from the high-performance and 5.0-V output capability of the device. For digital loads such as application-specific integrated circuits (ASICs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs) that require low-input, low-output (LILO) voltage operation, the exceptional accuracy (1% over load and temperature), remote sensing, excellent transient performance, and soft-start capabilities of the TPS7A53-Q1 provide optimal system performance. The versatility of the TPS7A53-Q1 makes the device a component of choice for many demanding applications. The TPS7A53-Q1 device is a low-noise (4.4 µVRMS), low-dropout linear regulator (LDO) capable of sourcing 3 A with only 180 mV of maximum dropout. The device output voltage is adjustable from 0.8 V to 5.15 V using an external resistor divider. The combination of low-noise (4.4 µVRMS), high-PSRR, and high output current capability makes the TPS7A53-Q1 an excellent choice to power noise-sensitive components, such as those found in radar power and infotainment applications. The high performance of this device limits power-supply-generated phase noise and clock jitter, making this device an excellent choice for powering RF amplifiers, radar sensors, and chipsets. Specifically, RF amplifiers benefit from the high-performance and 5.0-V output capability of the device. For digital loads such as application-specific integrated circuits (ASICs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs) that require low-input, low-output (LILO) voltage operation, the exceptional accuracy (1% over load and temperature), remote sensing, excellent transient performance, and soft-start capabilities of the TPS7A53-Q1 provide optimal system performance. The versatility of the TPS7A53-Q1 makes the device a component of choice for many demanding applications.
