ECQ-UAAF474 Series

Catalog

CAP FILM 0.47UF 20% 275VAC RAD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Termination	Mounting Type	Voltage Rating - AC	Ratings	Capacitance	Lead Spacing	Lead Spacing	Package / Case

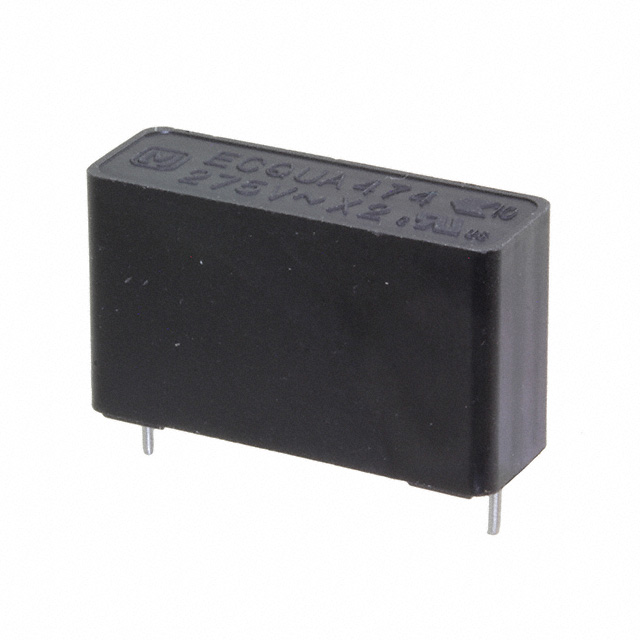

Panasonic Electronic Components ECQ-UAAF474SA	-40 C	110 °C	0.335 in	26 mm	8.5 mm	1.024 in	Automotive EMI RFI Suppression	Polypropylene (PP) Metallized	0.61 in	15.5 mm	20 %	PC Pins	Through Hole	275 V	AEC-Q200 X2	0.47 µF	0.886 in	22.5 mm	Radial
Panasonic Electronic Components ECQ-UAAF474S1	-40 C	110 °C	0.335 in	26 mm	8.5 mm	1.024 in	Automotive EMI RFI Suppression	Polypropylene (PP) Metallized	0.61 in	15.5 mm	20 %	PC Pins	Through Hole	275 V	AEC-Q200 X2	0.47 µF	0.886 in	22.5 mm	Radial
