BC-ATS Series

Manufacturer: Boxco

Catalog

BOX ABS CLEAR 4.33"L X 3.15"W

Part	Area (L x W)	Area (L x W)	Material	Container Type	Ratings	Design	Height [z]	Height [z]	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Color	Height	Height	Size / Dimension	Size / Dimension
Boxco BC-ATS-081107	88 cm²	13.6 in˛	Plastic ABS Body Polycarbonate Cover	Box	6 IP66 IP67 NEMA 4X UL 508A	Lift-Off Screw Cover	70 mm	2.756 in	UL94 HB	80 mm	4.331 in	3.15 in	110 mm	Sealing Gasket Wall Mount	Clear Cover Light Gray

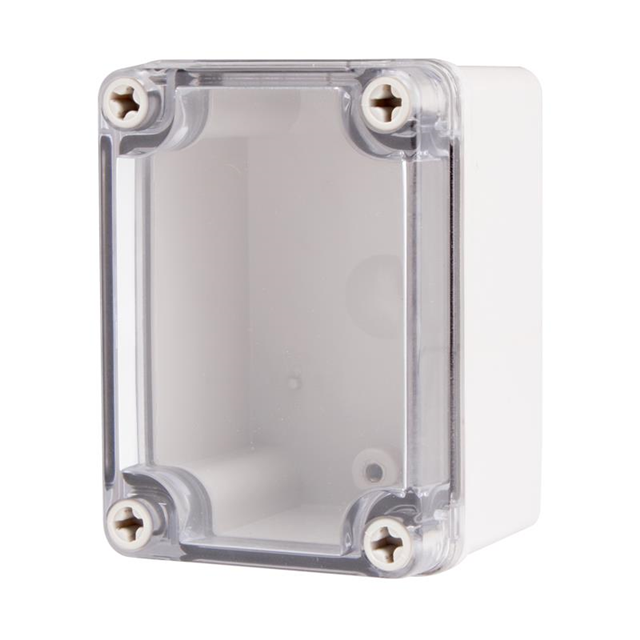

Boxco BC-ATS-081108	88 cm²	13.6 in˛	Plastic ABS Body Polycarbonate Cover	Box	6 IP66 IP67 NEMA 4X UL 508A	Lift-Off Screw Cover			UL94 HB	80 mm	4.331 in	3.15 in	110 mm	Sealing Gasket Wall Mount	Clear Cover Light Gray	85 mm	3.346 in
Boxco BC-ATS-283813	1064 cm˛	165 in˛	Plastic ABS Body Polycarbonate Cover	Box	6 IP66 IP67 NEMA 4X UL 508A	Lift-Off Screw Cover		5.118 in	UL94 HB	280 mm	14.961 in	11.024 in	380 mm	Sealing Gasket Wall Mount	Clear Cover Light Gray	130 mm

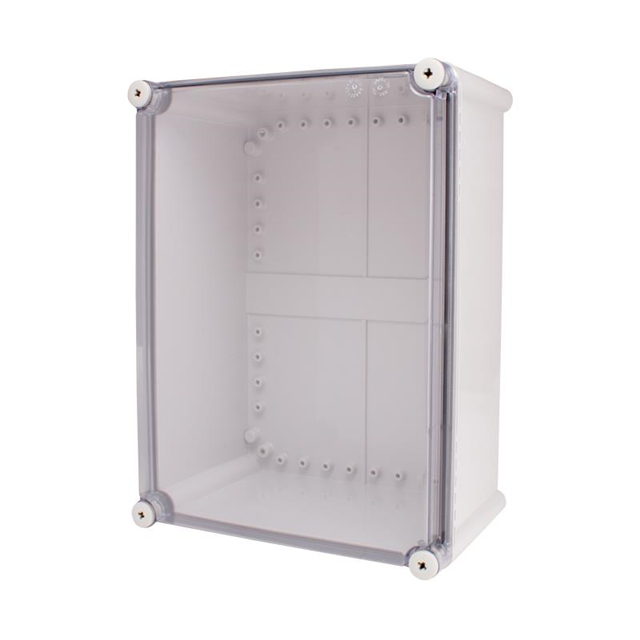

Boxco BC-ATS-283818	1064 cm˛	165 in˛	Plastic ABS Body Polycarbonate Cover	Box	6 IP66 IP67 NEMA 4X UL 508A	Lift-Off Screw Cover	180 mm	7.087 in	UL94 HB	280 mm	14.961 in	11.024 in	380 mm	Sealing Gasket Wall Mount	Clear Cover Light Gray

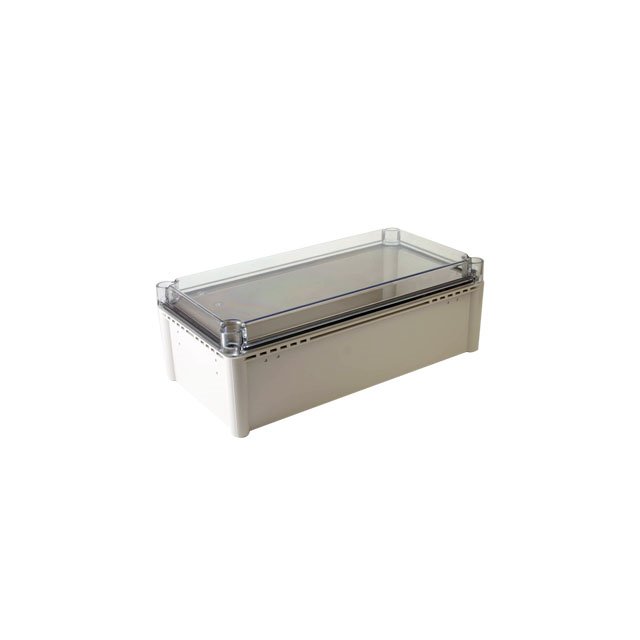

Boxco BC-ATS-193813	722 cm²	112 in²	Plastic ABS Body Polycarbonate Cover	Box	6 IP66 IP67 NEMA 4X UL 508A	Lift-Off Screw Cover		5.118 in	UL94 HB	190 mm	14.961 in	7.48 in	380 mm	Sealing Gasket Wall Mount	Clear Cover Light Gray	130 mm

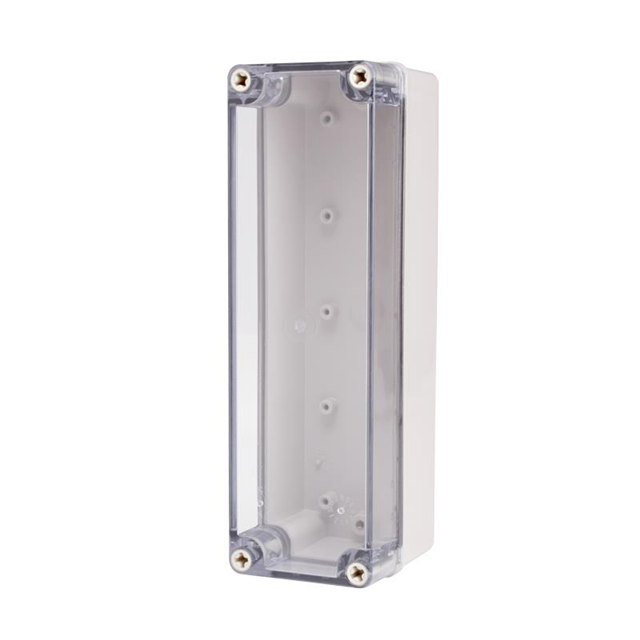

Boxco BC-ATS-082508	200 cm²	31 in²	Plastic ABS Body Polycarbonate Cover	Box	6 IP66 IP67 NEMA 4X UL 508A	Lift-Off Screw Cover			UL94 HB					Sealing Gasket Wall Mount	Clear Cover Light Gray	85 mm	3.346 in	80 mm 250 mm	3.15 in 9.843 in

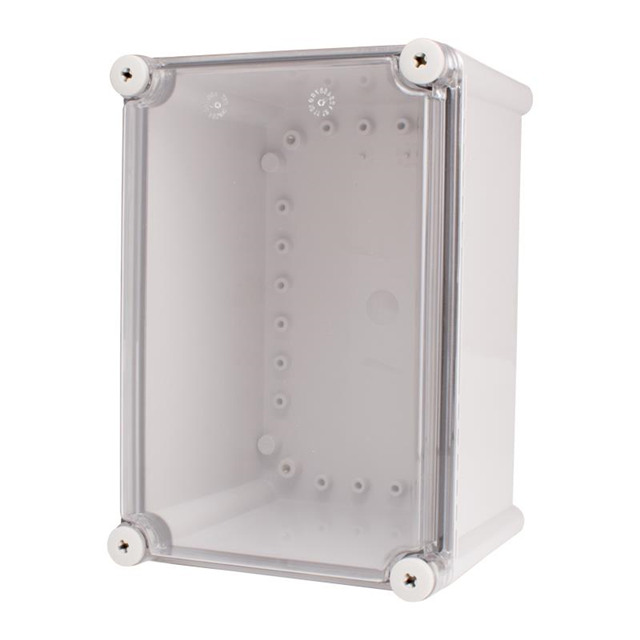

Boxco BC-ATS-192818	532 cm˛	82.5 in˛	Plastic ABS Body Polycarbonate Cover	Box	6 IP66 IP67 NEMA 4X UL 508A	Lift-Off Screw Cover	180 mm	7.087 in	UL94 HB	190 mm	11.024 "	7.48 in	280 mm	Sealing Gasket Wall Mount	Clear Cover Light Gray
