R1966AGR Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SPST 15A 125V
| Part | Mechanical Life | Electrical Life | Termination Style | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Marking | Circuit | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating (Amps) | Switch Function | Mounting Type | Actuator Type | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 30000 Steps | 10000 Cycles | Quick Connect | 125 V | -30 ░C | 65 °C | O - | SPST | 19.4 mm | 13 mm | 15 A | On-Off | Panel Mount Snap-In | Concave (Curved) | ||

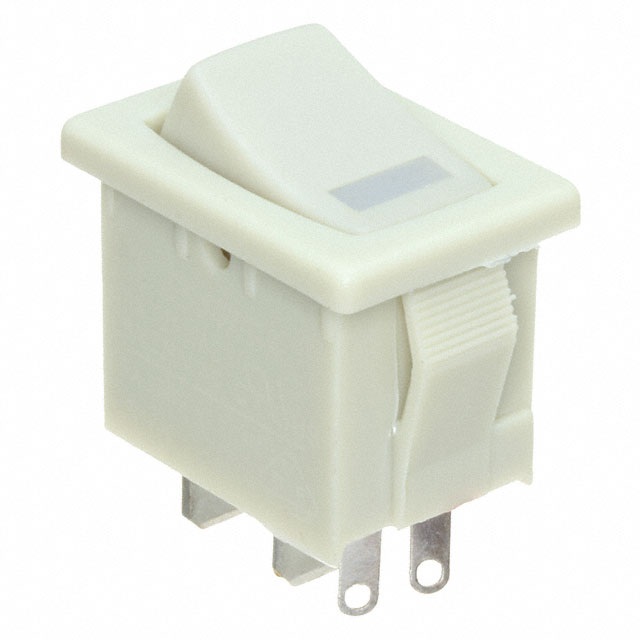

 E-Switch | 30000 Steps | 10000 Cycles | Quick Connect | 125 V | -30 ░C | 65 °C | No Marking | SPST | 19.4 mm | 13 mm | 15 A | On-Off | Panel Mount Snap-In | Concave (Curved) - Illuminated | 2.2 VDC | Green LED |

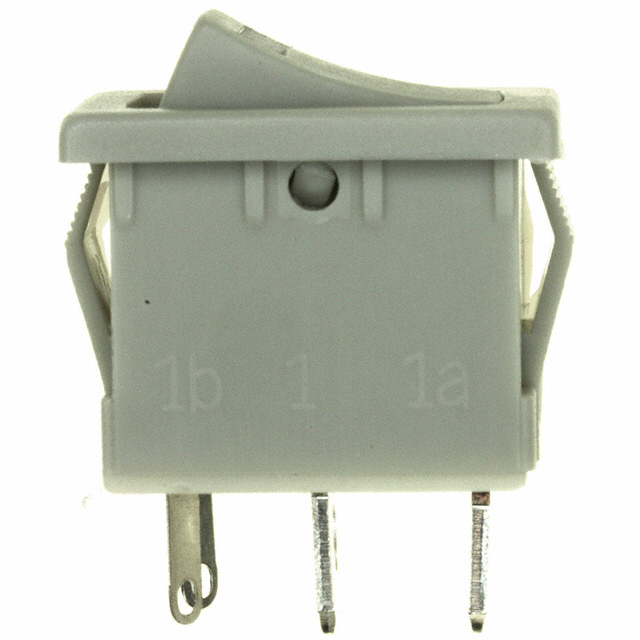

 E-Switch | 30000 Steps | 10000 Cycles | Quick Connect | 125 V | -30 ░C | 65 °C | No Marking | SPST | 19.4 mm | 13 mm | 15 A | On-Off | Panel Mount Snap-In | Concave (Curved) - Illuminated | 2 VDC | LED Red |
