395-039 Series
Manufacturer: EDAC Inc.
Catalog

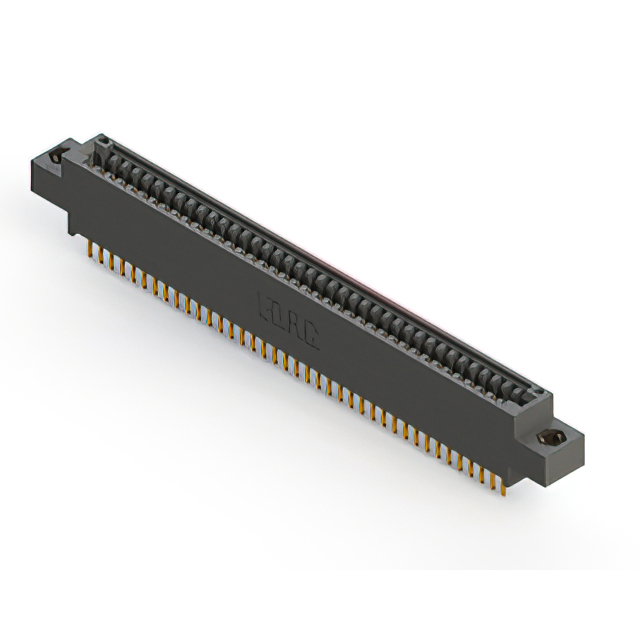

CONN EDGE SINGLE FML 39POS 0.100
...
| Part | Termination Rows | Material - Insulation | Number of Positions/Bay/Row | Color | Gender | Number of Rows | Contact Finish | Termination | Pitch | Pitch | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Read Out | Contact Type | Card Type | Mounting Type | Flange Feature | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

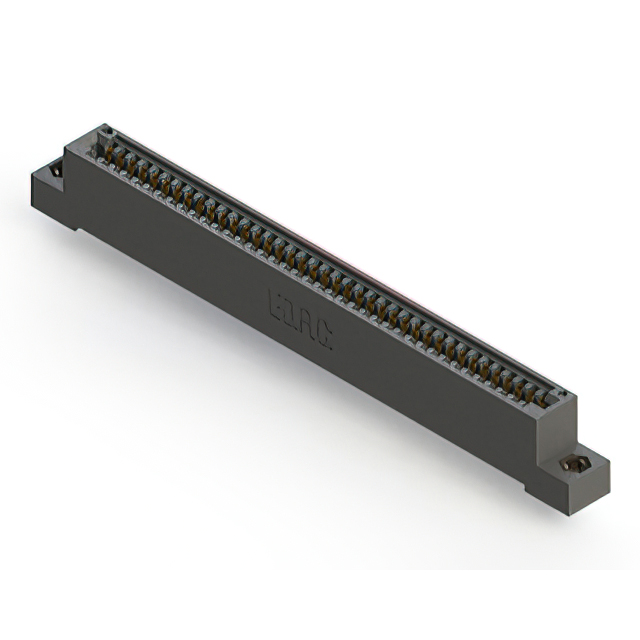

 EDAC Inc. | 1 | Polyester Thermoplastic | 39 | Black | Female | 1 | Gold | Wire Wrap | 0.1 " | 2.54 mm | Copper Alloy | -40 C | 105 ░C | 39 | Single | Cantilever | Non Specified - Single Edge | Through Hole | M3 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 39 | Black | Female | 1 | Gold | Wire Wrap | 0.1 " | 2.54 mm | Copper Alloy | -40 C | 105 ░C | 39 | Single | Cantilever | Non Specified - Single Edge | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Card Guides |
 EDAC Inc. | 1 | Polyester Thermoplastic | 39 | Black | Female | 1 | Gold | Solder | 0.1 " | 2.54 mm | Copper Alloy | -40 C | 105 ░C | 39 | Single | Cantilever | Non Specified - Single Edge | Through Hole | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Card Guides |
 EDAC Inc. | 1 | Polyester Thermoplastic | 39 | Black | Female | 1 | Gold | Solder | 0.1 " | 2.54 mm | Copper Alloy | -40 C | 105 ░C | 39 | Single | Cantilever | Non Specified - Single Edge | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Card Guides |
 EDAC Inc. | 1 | Polyester Thermoplastic | 39 | Black | Female | 1 | Gold | Wire Wrap | 0.1 " | 2.54 mm | Copper Alloy | -40 C | 105 ░C | 39 | Single | Cantilever | Non Specified - Single Edge | Through Hole | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Card Guides |
 EDAC Inc. | 1 | Polyester Thermoplastic | 39 | Black | Female | 1 | Gold | Solder | 0.1 " | 2.54 mm | Copper Alloy | -40 C | 105 ░C | 39 | Single | Cantilever | Non Specified - Single Edge | Through Hole | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Card Guides |
 EDAC Inc. | 1 | Polyester Thermoplastic | 39 | Black | Female | 1 | Gold | Solder | 0.1 " | 2.54 mm | Copper Alloy | -40 C | 105 ░C | 39 | Single | Cantilever | Non Specified - Single Edge | Through Hole | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 39 | Black | Female | 1 | Gold | Solder | 0.1 " | 2.54 mm | Copper Alloy | -40 C | 105 ░C | 39 | Single | Cantilever | Non Specified - Single Edge | Right Angle Through Hole | M3 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 39 | Black | Female | 1 | Gold | Solder | 0.1 " | 2.54 mm | Copper Alloy | -40 C | 105 ░C | 39 | Single | Cantilever | Non Specified - Single Edge | Right Angle Through Hole | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Card Guides |
 EDAC Inc. | 1 | Polyester Thermoplastic | 39 | Black | Female | 1 | Gold | Solder | 0.1 " | 2.54 mm | Copper Alloy | -40 C | 105 ░C | 39 | Single | Cantilever | Non Specified - Single Edge | Right Angle Through Hole | M3 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin |
