513945 Series
Manufacturer: Belden Inc.
Beta
⌘K

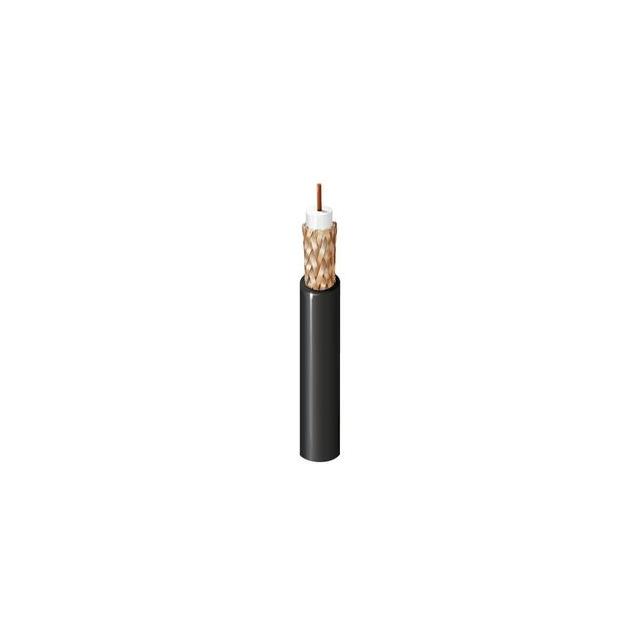

RG-11/U TYPE 75 OHM COAX
| Part | Dielectric Material | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Shield Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge | Cable Group | Conductor Strand | Impedance | Shield Type | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Foam Polyethylene (FPE) | Copper Bare | 75 ░C | -30 ░C | 84 | 0.28 in | 7.11 mm | 95 % | Copper Bare | Poly-Vinyl Chloride (PVC) | 10.29 mm | 0.405 " | Black | 14.5 AWG | RG-11 | Solid | 75 Ohms | Braid | Coaxial | 304.8 m | 1000 ft |
