09120123 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 12 CONTACTS, 3A, RECEPTACLE, CRIMP SOCKET
| Part | Housing Material | Material Flammability Rating | Color | Connector Type | Size | Gender | Contact Type | Voltage Rating | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Termination Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Polycarbonate (PC) | UL94 V-0 | Gray | Insert without Contacts | 3 A | Female | Han® D | 400 V | 12+0+Ground | 125 °C | -40 C | 10 A | Crimp | |
HARTING | Polycarbonate (PC) | UL94 V-0 | Gray | Insert without Contacts | 3 A | Female | Han® D | 600 V | 125 °C | -40 C | 10 A | Crimp Push In with Lock | 12 | |

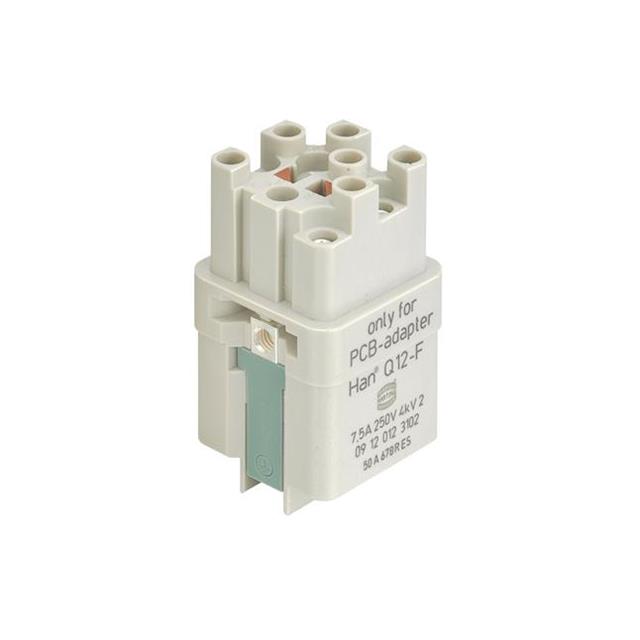

 HARTING | Polycarbonate (PC) | UL94 V-0 | Gray | Insert without Contacts | Female | Han® DD | 250 V | 125 °C | -40 C | 7.5 A | Solder | 12 | ||
 HARTING | Polycarbonate (PC) | UL94 V-0 | Gray | Insert without Contacts | 3 A | Male | Han® D | 400 V | 12+0+Ground | 125 °C | -40 C | 10 A | Crimp | |

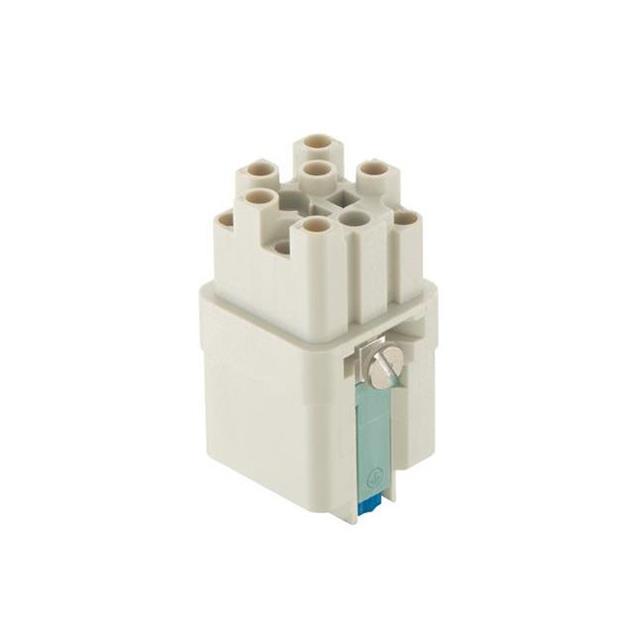

 HARTING | Insert | Female | Screw | 12 |
