DCM3623 Series

Catalog

DC DC CONVERTER 48V 320.2W

...

Part	Voltage - Output 1	Features	Efficiency	Package / Case	Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Number of Outputs	Outputs and Type	Outputs and Type	Board Type	Power - Output	Supplied Contents	Utilized IC / Part	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Contents	Regulator Topology	Voltage - Output	Approval Agency	Current - Output (Max)
Vicor Corporation DCM3623T36G53C2T00	48 V	OCP OTP OVP SCP UVLO	93 %	9-DIP Module	Isolated Module	18 V	6.67 A	36 V	2250 VDC	125 °C	-40 C	Through Hole	ITE (Commercial)	7.3 mm	0.29 in	1.52 in	0.9 in	38.7 mm	22.8 mm	320.2 W	1

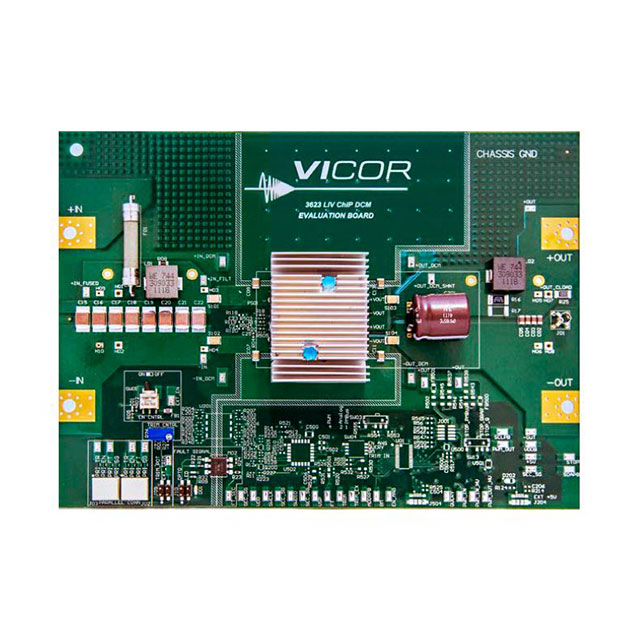

Vicor Corporation DCM3623E36G31C2T00																						1 Isolated Output Isolated	1	Fully Populated	320 W	Board(s)	DCM3623x36G31C2yzz	11.43 A	36 V	18 VDC	DC/DC Step Down	Board(s)	Buck	28 V
Vicor Corporation DCM3623T75X1380T00	12 V	OCP OTP OVP SCP UVLO	90.4 %	9-DIP Module	Isolated Module	9 V	6.7 A	75 V	2250 VDC	125 °C	-40 C	Through Hole	ITE (Commercial)	7.2 mm	0.28 "	1.52 in	0.9 in	38.7 mm	22.8 mm	80 W	1														CE
Vicor Corporation DCM3623T75H31C2M00	28 V	OCP OTP OVP SCP UVLO	92.4 %	9-DIP Module	Isolated Module	36 V	11.43 A	75 V	2250 VDC	125 °C	-55 C	Through Hole	ITE (Commercial)	7.3 mm	0.29 in	1.52 in	0.9 in	38.7 mm	22.8 mm	320 W	1
Vicor Corporation DCM3623T50T0680T00	5 V	OCP OTP OVP Remote On/Off SCP UVLO	88 %	9-DIP Module	Isolated Module	9 V	16 A	50 V	2250 VDC	125 °C	-40 °C	Through Hole	ITE (Commercial)	7.3 mm	0.29 in	1.52 in	0.9 in	38.7 mm	22.8 mm	80 W	1
Vicor Corporation DCM3623TA5N06A2T00	5 V	OCP OTP OVP SCP UVLO	89.4 %	9-DIP Module	Isolated Module	43 V	24 A	154 V	3000 V	125 °C	-40 C	Through Hole	ITE (Commercial)	7.2 mm	0.28 "	1.52 in	0.9 in	38.72 mm	22.8 mm	120 W	1
Vicor Corporation DCM3623T50M26C2M00	24 V	OCP OTP OVP SCP UVLO	91.8 %	9-DIP Module	Isolated Module	16 V	13.4 A	50 V	2250 VDC	125 °C	-55 C	Through Hole	ITE (Commercial)	7.3 mm	0.29 in	1.52 in	0.9 in	38.7 mm	22.8 mm	321.6 W	1
Vicor Corporation MDCD270P050M250A40																						1 Isolated Output			250 W		MDCM270P050M250A40	50 A	420 V	160 V	DC/DC Step Down	Board(s)	Buck	5 V
Vicor Corporation DCM3623T50M04A2M00	3.3 V	OCP OTP OVP SCP UVLO	89.2 %	9-DIP Module	Isolated Module	16 V	36.4 A	50 V	2250 VDC	125 °C	-55 C	Through Hole	ITE (Commercial)	7.3 mm	0.29 in	1.52 in	0.9 in	38.7 mm	22.8 mm	120.1 W	1
Vicor Corporation DCM3623TA5N53B4T00	48 V	OCP OTP OVP SCP UVLO	90.7 %	9-DIP Module	Isolated Module	43 V		154 V	3000 V	125 °C	-40 C	Through Hole	ITE (Commercial)	7.2 mm	0.28 "	1.52 in	0.9 in	38.72 mm	22.8 mm	240 Watts	1															5 A
