160018 Series

Catalog

CONN RING OVAL 17-20AWG M4 CRIMP

Part	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Contact Finish	Thickness	Thickness	Width - Outer Edges	Width - Outer Edges	Termination	Insulation	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Mounting Type

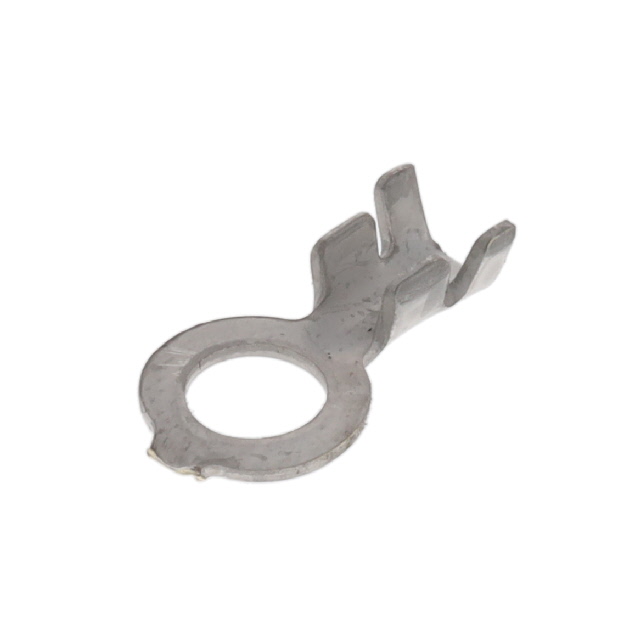

TE Connectivity Raychem Cable Protection 160018-2	0.091 " 2.31 mm	0.071 in 1.8 mm	Tin	0.64 mm	0.025 in	0.272 in	6.9 mm	Crimp	Non-Insulated	M4 Stud	12.4 mm	0.488 in	Brass	17 AWG	20 AWG	Oval	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 160018-4	0.091 " 2.31 mm	0.071 in 1.8 mm	Tin	0.64 mm	0.025 in	0.272 in	6.9 mm	Crimp	Non-Insulated	M4 Stud	12.4 mm	0.488 in	Phosphor Bronze	17 AWG	20 AWG	Oval	Free Hanging (In-Line)
