10GEEG Series

Catalog

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Approval Agency	Termination	Mounting Type	Filter Type	Current Rating - Filter	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Style	Current Rating - Appliance Inlet	Connector Type	Features
Delta Electronics 10GEEG3EM	CSA UL VDE	Quick Connect	Flange Panel Mount	Filtered (EMI RFI) - Commercial Medical	10 A	115 VAC	250 VAC	21.6 mm	28.45 mm	IEC 320-C14	10 A	Receptacle Male Blades
Delta Electronics 10GEEG3E-R	CSA UL VDE	Quick Connect	Flange Panel Mount	Filtered (EMI RFI) - Commercial	10 A	115 VAC	250 VAC	21.6 mm	28.45 mm	IEC 320-C14	10 A	Receptacle Male Blades	Bleed Resistor

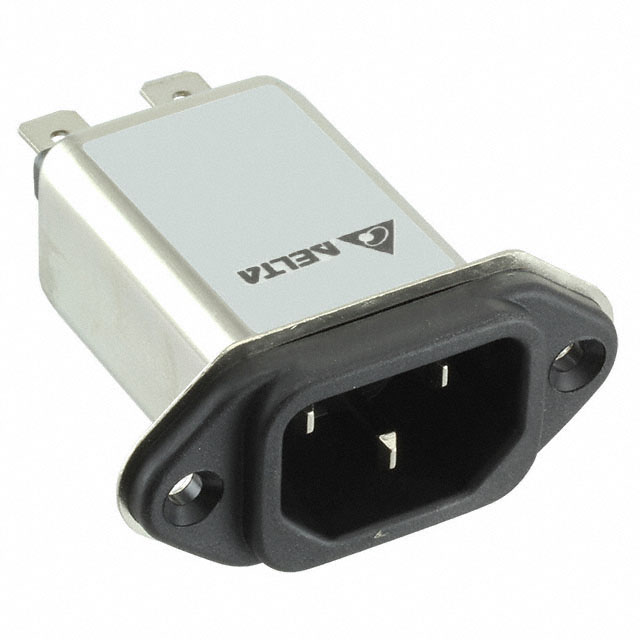

Delta Electronics 10GEEG3QM	CSA UL VDE	Quick Connect	Flange Panel Mount	Filtered (EMI RFI) - Commercial Medical	10 A	115 VAC	250 VAC	21.6 mm	28.45 mm	IEC 320-C14	10 A	Receptacle Male Blades
Delta Electronics 10GEEG3E	CSA UL VDE	Quick Connect	Flange Panel Mount	Filtered (EMI RFI) - Commercial	10 A	115 VAC	250 VAC	21.6 mm	28.45 mm	IEC 320-C14	10 A	Receptacle Male Blades
