CQY80 Series

Catalog

OPTOISO 5KV TRANS W/BASE 6DIP

Part	Input Type	Number of Channels	Vce Saturation (Max) [Max]	Package / Case	Package / Case	Package / Case	Current Transfer Ratio (Min) [Min]	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Turn On / Turn Off Time (Typ)	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Current - Output / Channel	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Output (Max) [Max]	Mounting Type	Package / Case

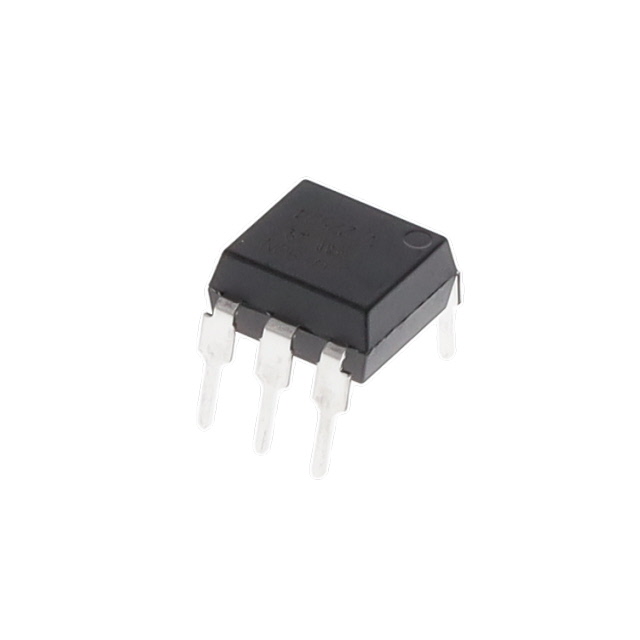

Vishay General Semiconductor - Diodes Division CQY80N	DC	1	300 mV	6-DIP	0.3 in	7.62 mm	50 %	60 mA	100 °C	-55 °C	7 µs 11 µs	6-DIP	1.25 V	50 mA	6.7 µs	7 µs	32 V	Through Hole
Vishay General Semiconductor - Diodes Division CQY80NG	DC	1	300 mV	6-DIP		10.16 mm	50 %	60 mA	100 °C	-55 °C	7 µs 11 µs	6-DIP	1.25 V	50 mA	6.7 µs	7 µs	32 V	Through Hole	10.16 mm
