GRPB102 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 20POS 1.27MM

Part	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions Loaded	Features	Mounting Type	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish Thickness - Mating	Contact Shape	Number of Rows [custom]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Insulation Height [z]	Insulation Height [z]	Number of Positions	Contact Length - Mating	Contact Length - Mating	Connector Type	Style	Contact Material	Fastening Type	Contact Finish - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]

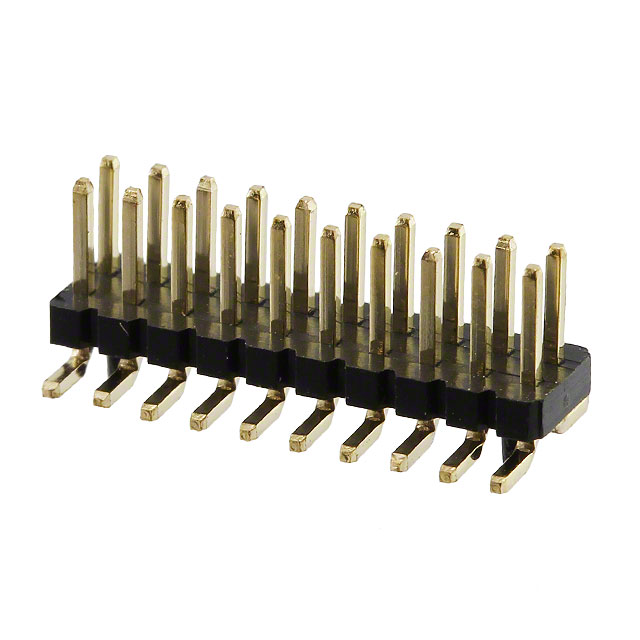

Sullins Connector Solutions GRPB102VWQP-RC	Flash	Gold	All	Board Guide	Surface Mount	Nylon 9T Polyamide (PA9T)	1.27 mm	0.05 in	Male Pin	Flash	Square	2	Solder	-40 C	105 ░C	UL94 V-0	0.05 in	1.27 mm	1 mm	0.039 in	20	3 mm	0.118 in	Header	Board to Board Cable	Brass	Push-Pull	Gold	Unshrouded

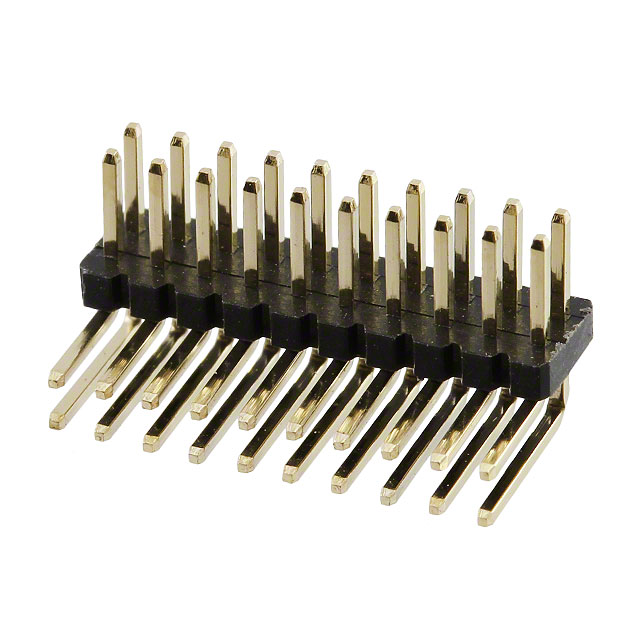

Sullins Connector Solutions GRPB102MWCN-RC	Flash	Gold	All		Right Angle Through Hole	Nylon 9T Polyamide (PA9T)	1.27 mm	0.05 in	Male Pin	Flash	Square	2	Solder	-40 C	105 ░C	UL94 V-0	0.05 in	1.27 mm			20	3 mm	0.118 in	Header	Board to Board Cable	Brass	Push-Pull	Gold	Unshrouded	2.5 mm	0.098 in	0.134 in	3.4 mm
Sullins Connector Solutions GRPB102VWVN-RC	Flash	Gold	All		Through Hole	Nylon 9T Polyamide (PA9T)	1.27 mm	0.05 in	Male Pin	Flash	Square	2	Solder	-40 C	105 ░C	UL94 V-0	0.05 in	1.27 mm	1 mm	0.039 in	20	3 mm	0.118 in	Header	Board to Board Cable	Brass	Push-Pull	Gold	Unshrouded	2.3 mm				0.248 in	6.3 mm	0.091 "
