2199119 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN M.2 FMALE 67POS 0.020 GOLD

Part	Contact Finish	Read Out	Contact Finish Thickness	Contact Finish Thickness	Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Pitch [x]	Pitch [x]	Number of Rows	Features	Number of Positions	Card Type	Contact Material	Gender	Mounting Type	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 2199119-6	Gold	Dual	0.76 Ám	30 Áin	Black	Solder	-40 °C	80 C	Thermoplastic	0.5 mm	0.02 in	2	Board Guide	67	M.2 (NGFF) Mini Card	Copper Alloy	Female	Surface Mount Right Angle

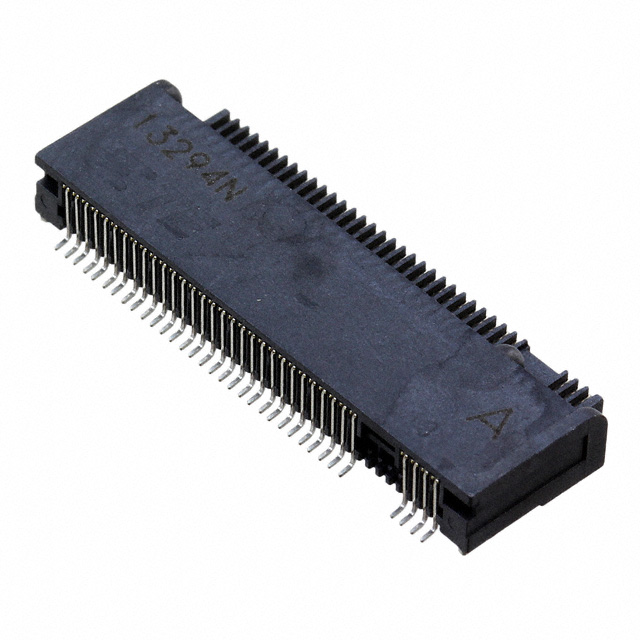

TE Connectivity Raychem Cable Protection 2199119-8	Gold	Dual	0.38 µm	15 µin	Black	Solder	-40 °C	80 C	Thermoplastic	0.5 mm	0.02 in	2	Board Guide	67	M.2 (NGFF) Mini Card	Copper Alloy	Female	Surface Mount Right Angle
TE Connectivity Raychem Cable Protection 2199119-7	Gold	Dual			Black	Solder	-40 °C	80 C	Thermoplastic	0.5 mm	0.02 in	2	Board Guide	67	M.2 (NGFF) Mini Card	Copper Alloy	Female	Surface Mount Right Angle	Flash
TE Connectivity Raychem Cable Protection 2199119-4	Gold	Dual	0.38 µm	15 µin	Black	Solder	-40 °C	80 C	Thermoplastic	0.5 mm	0.02 in	2	Board Guide	67	M.2 (NGFF) Mini Card	Copper Alloy	Female	Surface Mount Right Angle
TE Connectivity Raychem Cable Protection 2199119-9	Gold	Dual	0.76 Ám	30 Áin	Black	Solder	-40 °C	80 C	Thermoplastic	0.5 mm	0.02 in	2	Board Guide	67	M.2 (NGFF) Mini Card	Copper Alloy	Female	Surface Mount Right Angle
TE Connectivity Raychem Cable Protection 1-2199119-5	Gold	Dual	0.38 µm	15 µin	Black	Solder	-40 °C	80 C	Thermoplastic	0.5 mm	0.02 in	2	Board Guide	67	M.2 (NGFF) Mini Card	Copper Alloy	Female	Surface Mount Right Angle
TE Connectivity Raychem Cable Protection 2199119-1	Gold	Dual			Black	Solder	-40 °C	80 C	Thermoplastic	0.5 mm	0.02 in	2	Board Guide	67	M.2 (NGFF) Mini Card	Copper Alloy	Female	Surface Mount Right Angle	Flash
